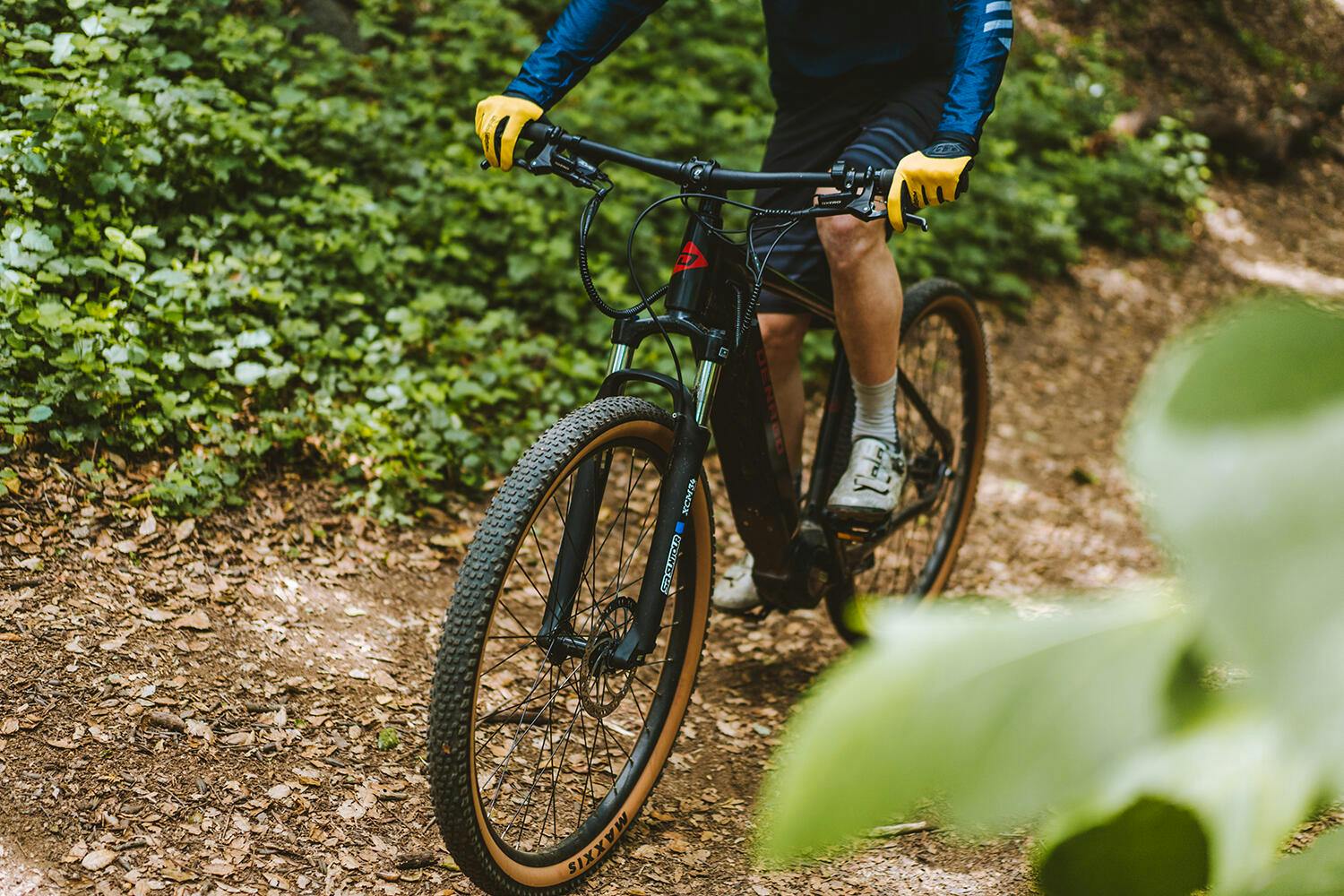

Our eXC2 proves that it's possible to build a high performance, trail-worthy eMTB that doesn't require a second mortgage to afford. Packed with value and features including the Bafang M510 mid-drive motor with torque sensor, 29" wheels and tires, and Suntour suspension fork with Boost spacing.
eXC2 shares the same frame with our eXC1, and adds an upgraded motor with more torque, larger battery, dropper seatpost, and digital handlebar display.
Denago eXC2 eMTB Mountain eBike
Trail-worthy mountain ebike
Regular price
$3,199.00
Regular price
$3,199.00
Sale price
$3,199.00
Unit price
per
✔️2-Year Warranty
✔️0% APR Up to 12 Months
Couldn't load pickup availability
Free shipping on all eBikes
Lifetime frame warranty
Free assembly tools
UL 2849 Safety Certified
Questions?
Let us help
Our eXC2 proves that it's possible to build a high performance, trail-worthy eMTB that doesn't require a second mortgage to afford. Packed with value and features including the Bafang M510 mid-drive motor with torque sensor, 29" wheels and tires, and Suntour suspension fork with Boost spacing.
eXC2 shares the same frame with our eXC1, and adds an upgraded motor with more torque, larger battery, dropper seatpost, and digital handlebar display.
Class I eBike
5 levels of pedal assist, up to 20 mph.
720Wh Bafang Battery
Enjoy mountain biking with 48V 15Ah Lithium-ion battery
250 Watt Bafang Mid-Drive Motor
The M510 is a great balance of low weight and strong power.
95 Nm of Torque
Powerful Torque to carve through trails.
.png?v=1684513794621&options=){kind=icon}
Suntour XCM34 Suspension Fork
100mm travel, Boost, 15mm thru-axle, tapered steerer
.png?v=1684514484930&options=)
Digital handlebar display
Critical stats at a glance
.png?v=1684514568522&options=)
Hydraulic disc brakes
Tektro HD-E350 with oversized 180mm rotors
.png?v=1684514743544&options=){kind=icon}
Torque sensor
The most natural pedaling feel off-road
.png?v=1684770344285&options=){kind=icon}

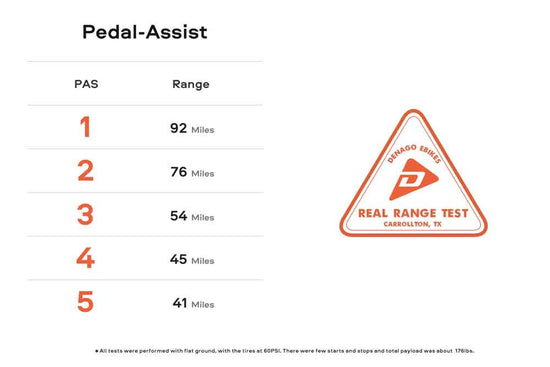

92 miles max range
Ranges based on real-world test.
Dropper seatpost
Lower the saddle on-the-fly for challenging terrain
eBike Features
-
Class I eBike
With up to 20 MPH on pedal assist, the eXC2 carries the Class I eBike designation for access to the most trails and parks possible.
-
Unleash the power of 5 levels of pedal assist
Add power to your riding experience with the eBike Pedal Assist. Effortlessly conquer hills, accelerate with ease, and cruise through a variety of terrain. Perfect for city commutes, countryside adventures and exciting long-distance rides.
-
Bafang M510 mid-drive motor with Torque Sensor
Select from 5 assist levels on the handlebar remote. The 250W M510 mid-drive motor produces 95Nm torque, an upgrade from the eXC1.
The eXC2 uses torque sensor technology, for the most natural pedaling feel on off-road surfaces. -

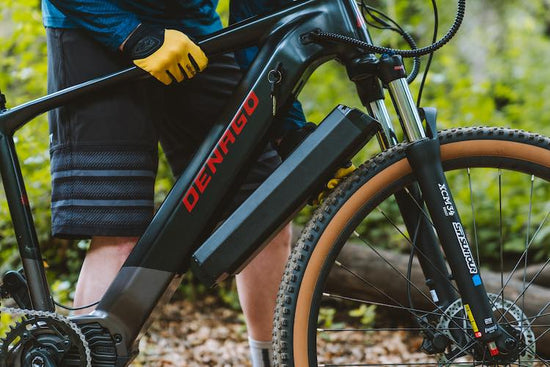

720 Wh battery
Class-leading 48V, 15.0A (720 Wh) Lithium-Ion battery, for more time on the trails between charges.
Integrated within the down tube for a stealthy look. Battery locks into the frame for security. -
Digital display
See trip distance, odometer, max speed, average speed, estimated range remaining, and calories burned on the Bafang display.
There's even a USB port to power your GPS, phone, or other accessory from the eBike battery. -
Shift Sensing Technology
An in-line shift sensor reduces power automatically during shifting for smoother, faster shifting with less wear on the drivetrain.
Collapsible content
See Full eBike Specifications
Top Speed:
20 MPH on pedal assist (Class I eBike)
Motor:
Bafang M510 Mid-drive, 48V, 250W; 95Nm torque, IP65 Water-Resistant rated
Battery:
Bafang 720 Wh (48V, 15.0A), IPX6 Water-Resistant rated
Sensors:
Torque, Speed
Throttle:
None
Display:
Bafang DP C244.CAN
Charger:
Multi-voltage 110-240V, 3A Fast Charger with USA plug
Safety Data Sheets (SDS):
Denago safety data sheets are available upon request via email.
COMPONENT HIGHLIGHTS
-

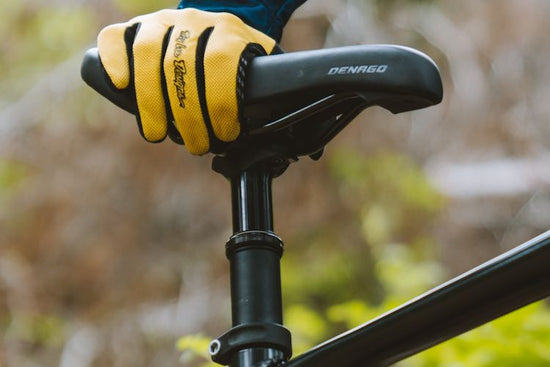

Dropper seatpost
eXC2 includes a 150mm dropper seatpost with handlebar remote, so you can lower the saddle on-the-fly when riding on more challenging terrain.
-
Hydraulic disc brakes
Powerful hydraulic disc brakes with oversized, 180mm rotors provide plenty of stopping power, even on steep terrain.
-

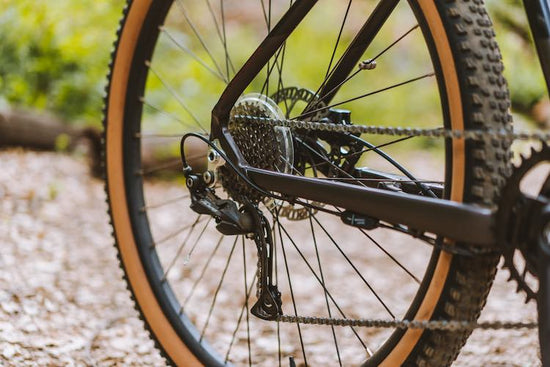

Shimano Alivio drivetrain
9 speed Alivio shifter and Shadow+ rear derailleur.
-
Maxxis Rekon Race 29x2.4" tires
Upgraded skinwall sidewalls with EXO casing and big, aggressive knobs for grip.
-
Suntour XCM34 boost suspension fork
eXC2 uses an upgraded Suntour XCM34 fork with 100mm travel, tapered steerer tube, and Boost axle spacing.
-
Thru-axle frame, fork, and wheels
Thru-axle design eliminates flex, improving cornering performance and suspension tracking.
Collapsible content
See Full Component Specifications
FRAME AND FORK
Frame:
6061-T6 Aluminum Alloy
Fork:
SR Suntour XCM34 LOR Boost, 100mm travel, 1.5" to 1 1/8" tapered, 15mm thru-axle with 110mm spacing
Kickstand:
None
DRIVETRAIN
Pedals:
Black alloy, 9/16"
Crankset:
Bafang alloy with 40 tooth narrow-wide style chainring
Rear Derailleur:
Shimano Alivio RD-M3100, 9 speed, Shadow
Cassette:
Shimano CS-HG200, 9 speed, 11-34 teeth
Shifter:
Shimano Alivio SL-M3100, 9 speed
Chain:
KMC E9 Sport
COCKPIT
Handlebar:
Zoom, aluminum alloy, 31.8mm clamp diameter
740mm long (size M)
780mm long (size L/XL)
Grips:
Black rubber, lock-on style
Stem:
Zoom aluminum alloy, 31.8mm clamp, 1 ⅛” threadless
Headset:
1 ⅛” - 1.5" tapered, sealed, threadless
Saddle:
Denago
Seatpost:
Limotec D1 150mm dropper, 10mm offset, 31.6mm diameter, handlebar remote
Seatpost Clamp:
Zoom, hex bolt
BRAKES
Levers:
Tektro HD-E350 hydraulic disc
Calipers:
Tektro HD-E350 hydraulic disc
Rotors:
Tektro 180mm, 6 bolt type
WHEELS
Tires:
Maxxis Rekon Race, 29x2.4", EXO casing, skinwall
Tubes:
29" butyl rubber
Rims:
Aluminum Alloy, 32 holes, 29"
Hubs:
Front - sealed cartridge bearing, 6 bolt disc brake, 15mm thru-axle
Rear - sealed cartridge bearing, 6 bolt disc brake, 12x142mm thru-axle
Spokes:
Front - 32 spokes, 13 gauge
Rear - 32 spokes, 13 gauge
Nipples:
Brass
WEIGHT AND PAYLOAD
Complete eBike with battery:
55 lbs
Maximum rider weight:
300 lbs
WHAT'S IN THE BOX
Complete eBike
Keys
Lithium-Ion battery
3 Amp fast charger
Quickstart guide
Wheel reflectors
Assembly Tools (pedal wrench, multi-tool)
COVID-19 has created specific challenges in the bicycle industry, especially around the availability of the components required to manufacture eBikes. As a result, we reserve the right to make substitutions of equivalent components of equal or better value to ensure we can consistently deliver our eBikes in a timely fashion. Thanks for understanding!
Third Party Accessory Compatibility
Thule Yepp Maxi Child Seat
The Denago eXC2 is not compatible with the Thule Yepp Maxi Child Seat.
WATCH: eXC2 ON THE MARSHALL CANYON TRAIL
SIZE AND FIT
-
Wilt is 5'7" tall
Shown riding size Medium
-
Justin is 5'11" tall
Shown riding size Large
Collapsible content
Full geometry chart and dimensions
| Dimension | Size M | Size L | Size XL |
|---|---|---|---|
| Top Tube Length(actual): | 23.5"/598mm | 24"/609mm | 25.2"/640mm |
| Wheelbase: | 47.4"/1204mm | 48"/1219mm | 49"/1245mm |
| Head Tube Length: | 5.5"/140mm | 5.5"/140mm | 5.5"/140mm |
| Standover height: | 30.7"/780mm | 32.25"/820mm | 33.8"/860mm |
| Reach: | 17.5"/444mm | 18.1"/459mm | 19"/484mm |
| Top Tube Length(effective): | 24.2"/614mm | 25"/634mm | 26.25"/667mm |
| Minimum Saddle Height: | 31.7"/805mm | 33.6"/855mm | 34.4"/875mm |
| Maximum Saddle Height: | 39"/990mm | 41"/1040mm | 42.1"/1070mm |
Our size and fit recommendations
Riders 5'7" - 5'9", Medium
Riders 5'10" - 6'1", Large
Riders 6'1 - 6'5", Extra Large
Always wear a helmet, and ride only where safe, legal, and appropriate.
Assembly tools included
-
Multitool
Our multitool has all the hex keys and screwdrivers you'll need to complete assemby.
-
Pedal and axle nut wrench
Fits pedals and axle nuts, perfect for your home shop or to take on the road.
-
Expert guidance
Instructions in the box. Free help via phone, live chat, or email.
Shipping and delivery
-
Free standard shipping on all eBikes
All eBikes ship free from Denago.com.
-
Fast delivery
In-stock eBikes are delivered in just 1-5 business days, depending on your state.
-
Need it today?
Check partner bike shops near you who sell assembled, ready to ride Denago eBikes.
Documents for the Denago eXC2
DOWNLOADS
Owner's Manual, Quick Start Guide, Display Instructions, Geometry Chart
Please visit the Denago downloads page for PDF documents.
