500 W
motor
57 Miles
range
Integrated Lights
TURN SIGNALS
LG 48V 14Ah
battery
300 LBS
PAYLOAD CAPACITY
25 MPH
Top Speed
300+ Bike Shops
eBike service & test rides
Safety Certified
In accordance withUL2849 and UL2271

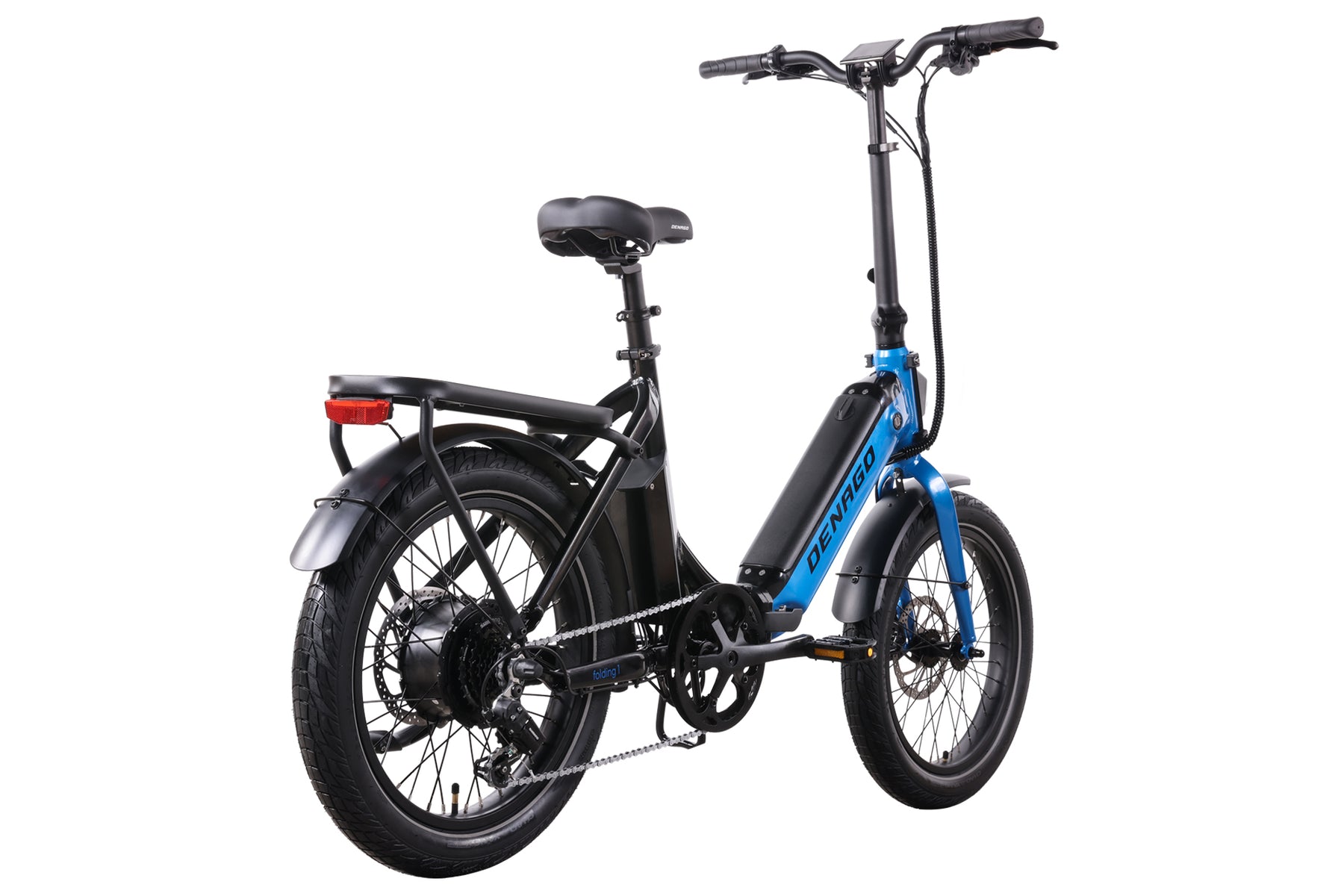

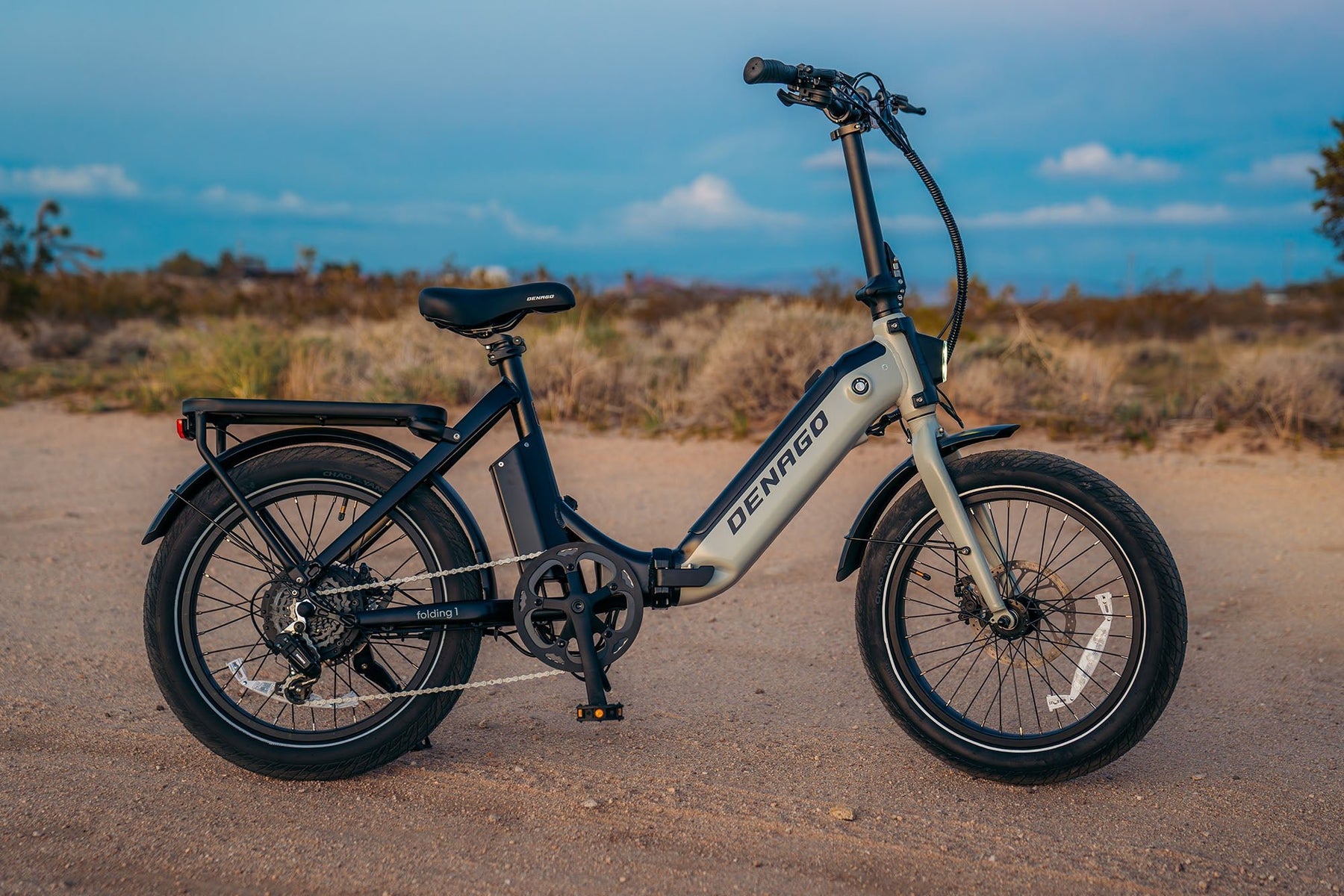

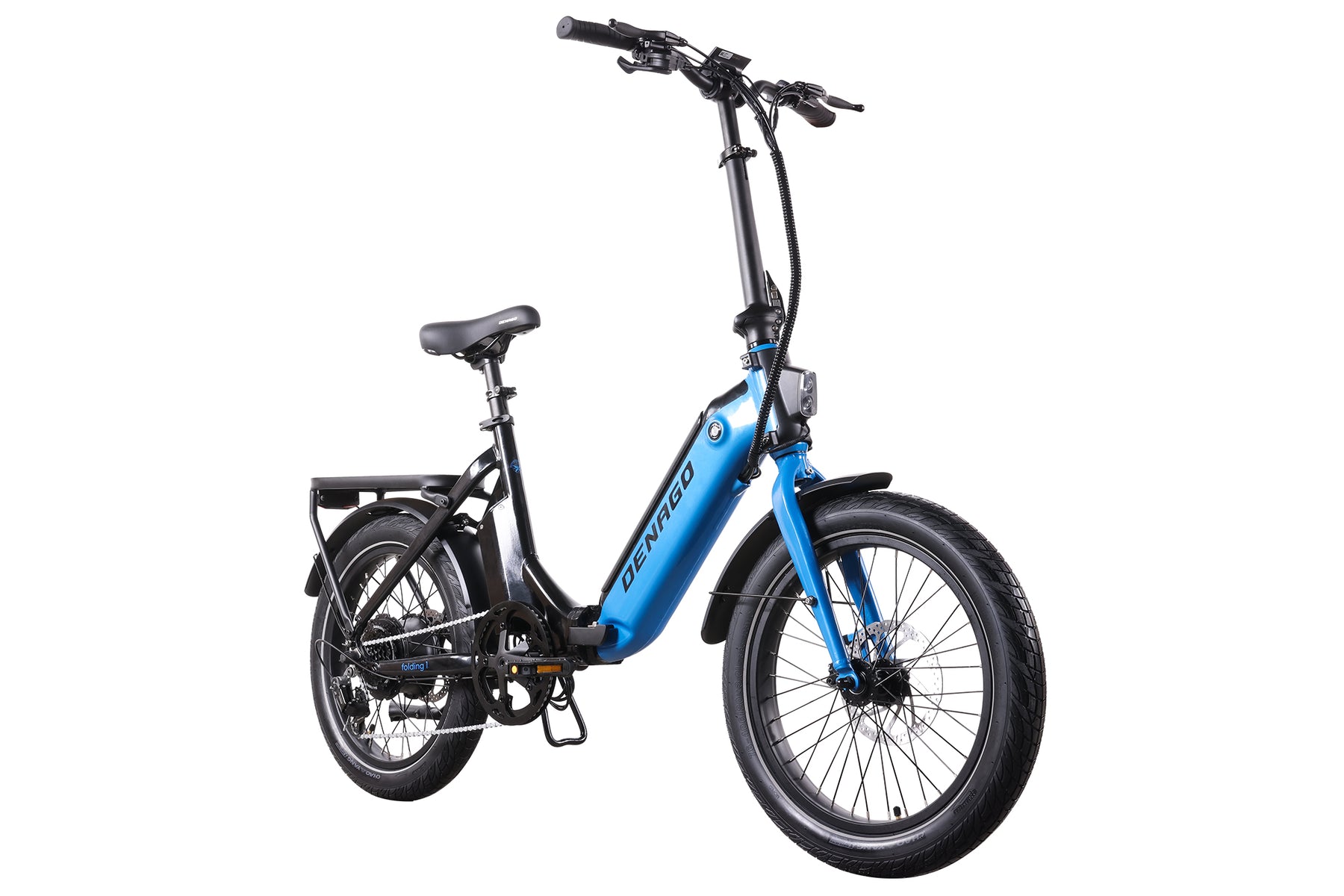

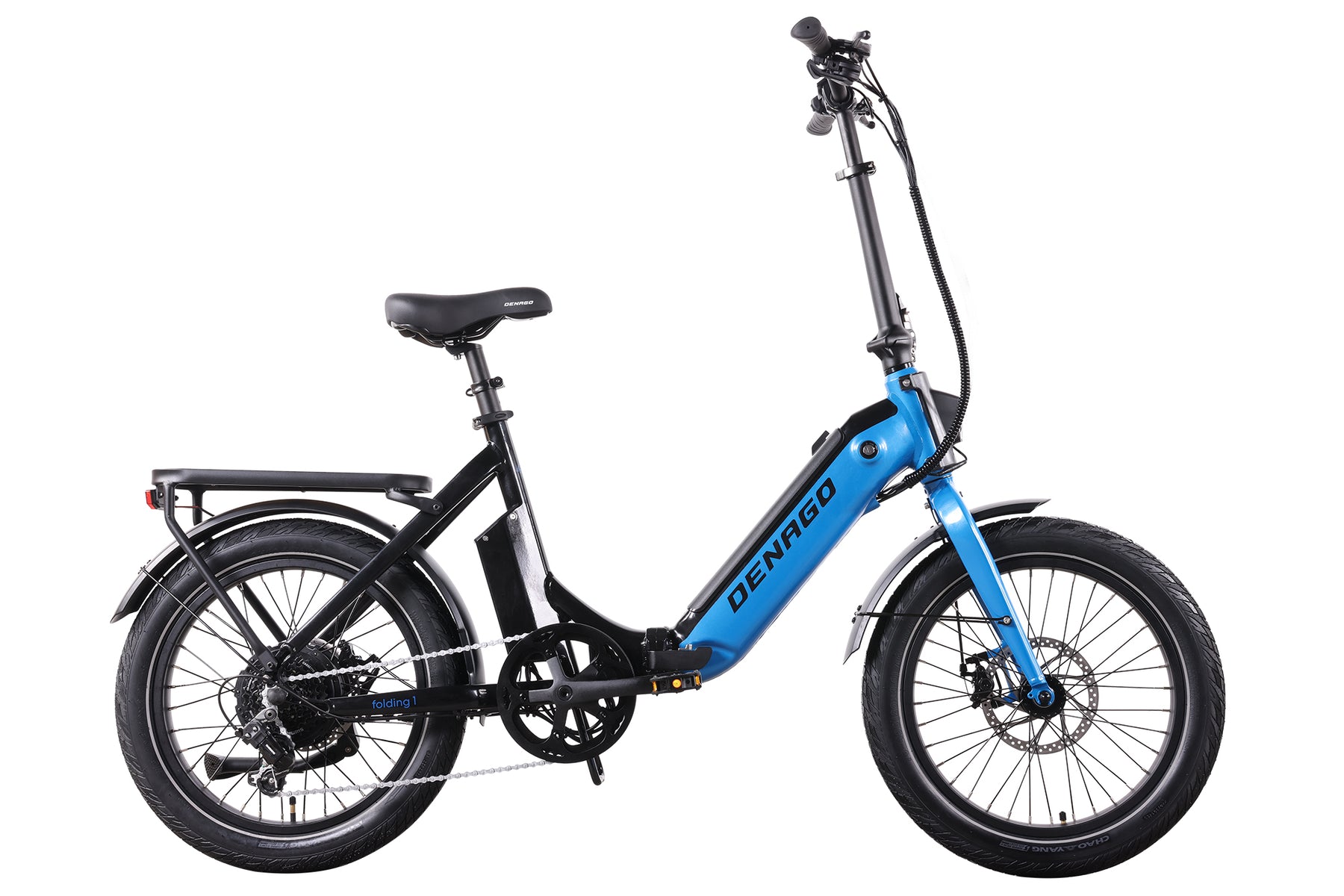

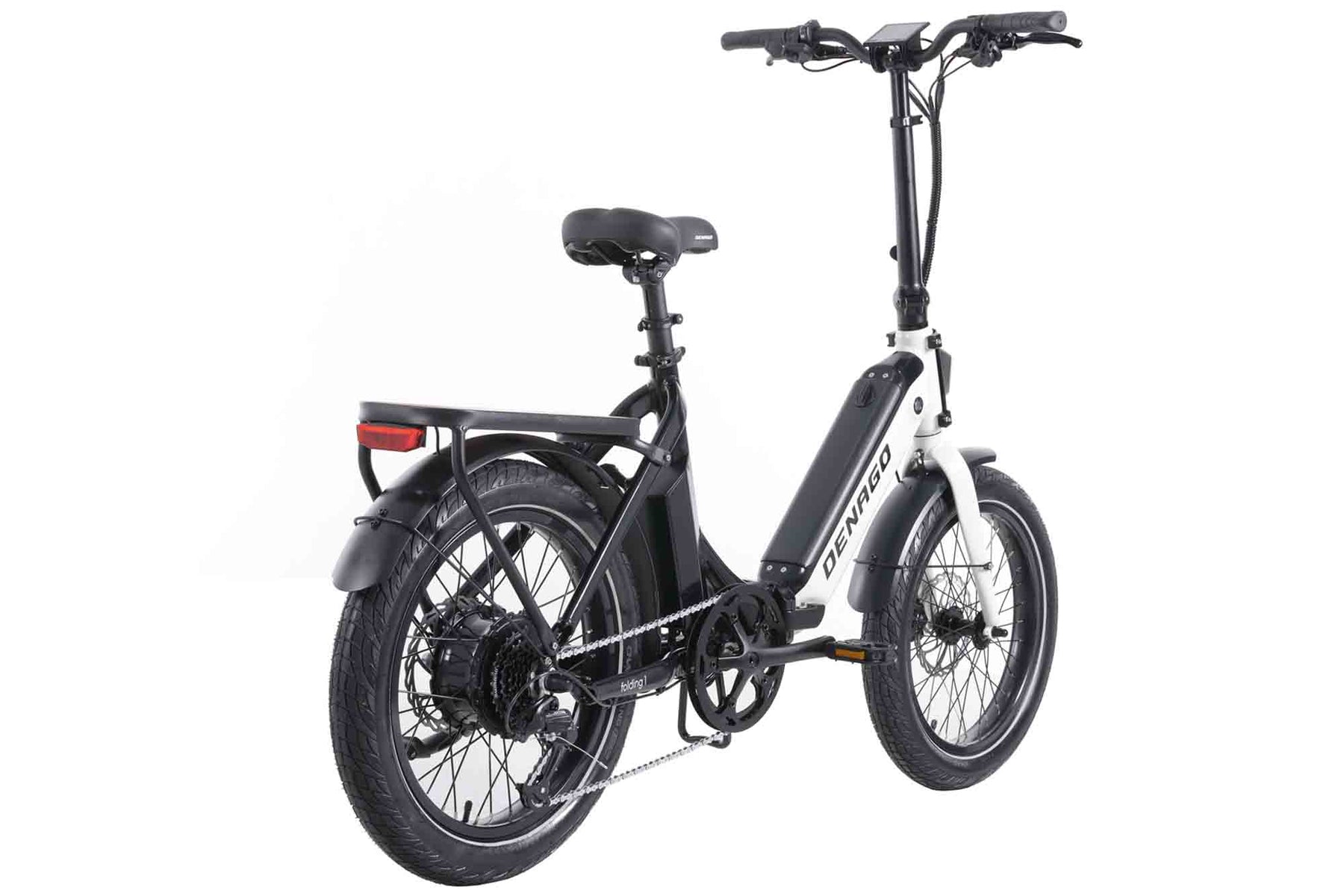

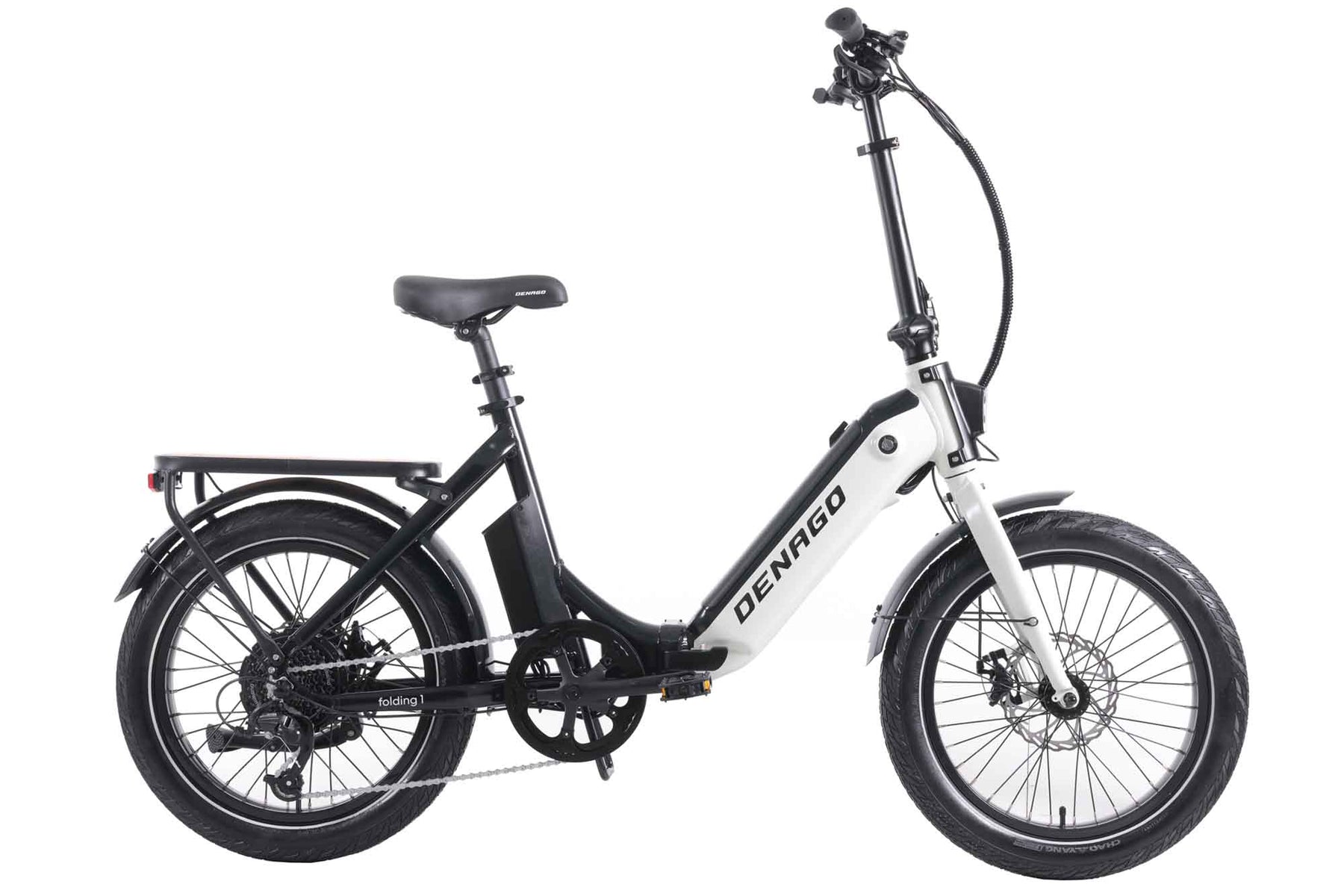

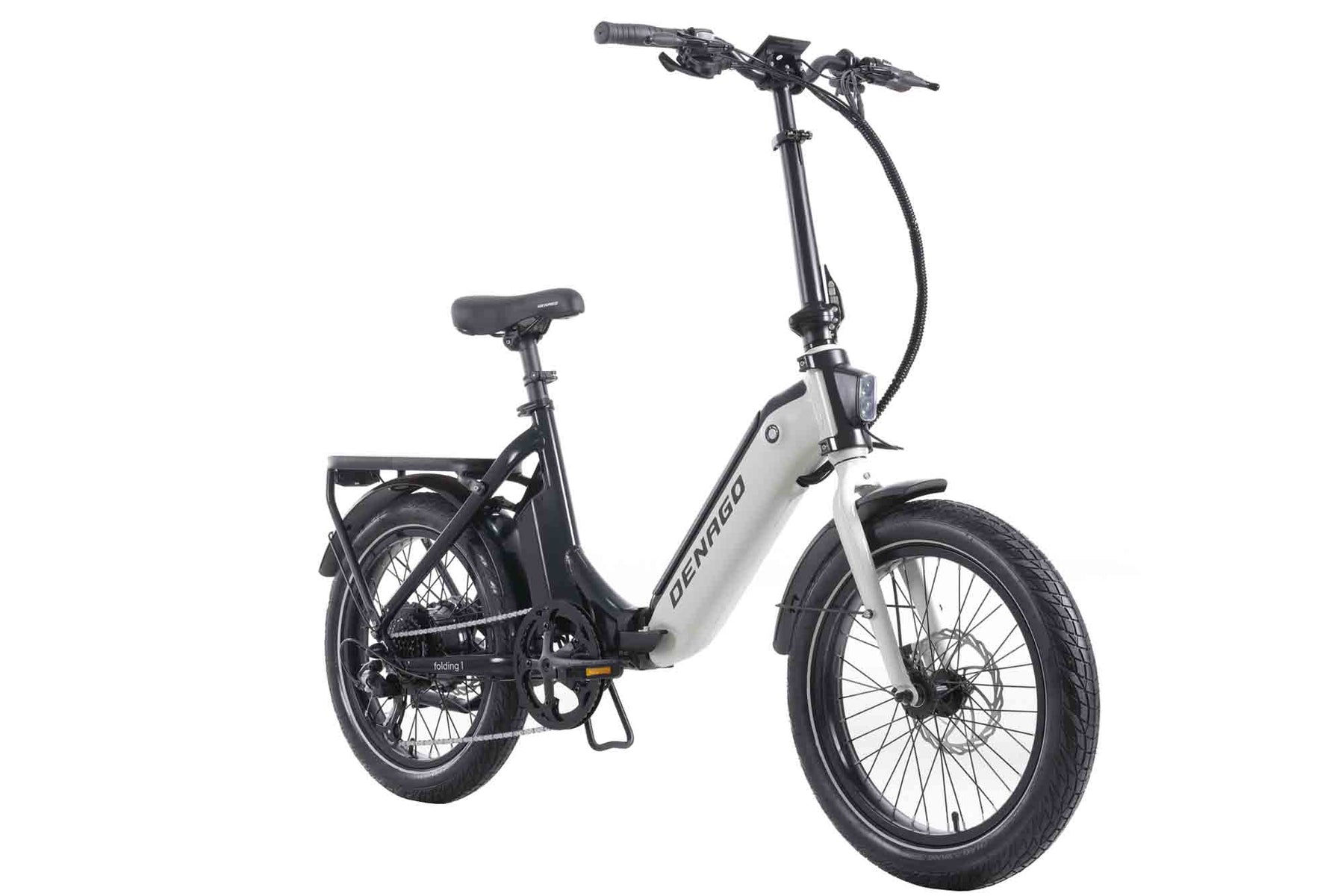

Denago Folding 1 eBike
Our Denago folding eBike is a powerful, compact model ideal for van life, RV travel, or anywhere with limited storage space. When folded, it fits into a compact space just 20" wide, 35" long, and 30" tall.

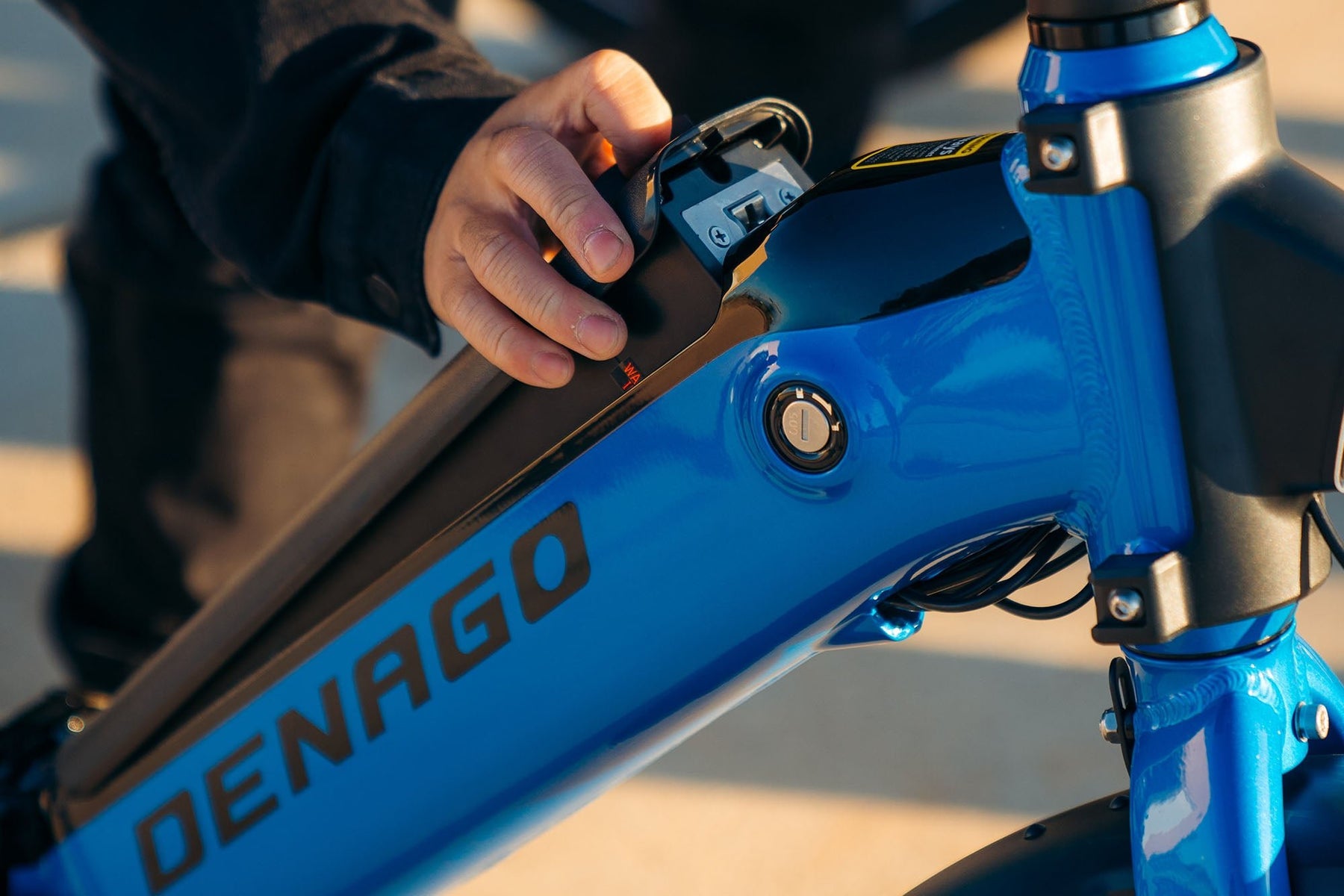

Easy to store and transport thanks to a folding frame, pedals, and handlebar. Features both pedal assist and throttle modes with a sleek, hidden internal battery. The combo of the ultra-low standover height frame and telescoping seatpost means almost everyone can ride, regardless of height or inseam.
TIME
REMAINING
Size
2 Year Warranty
Free Shipping
15-Day Returns

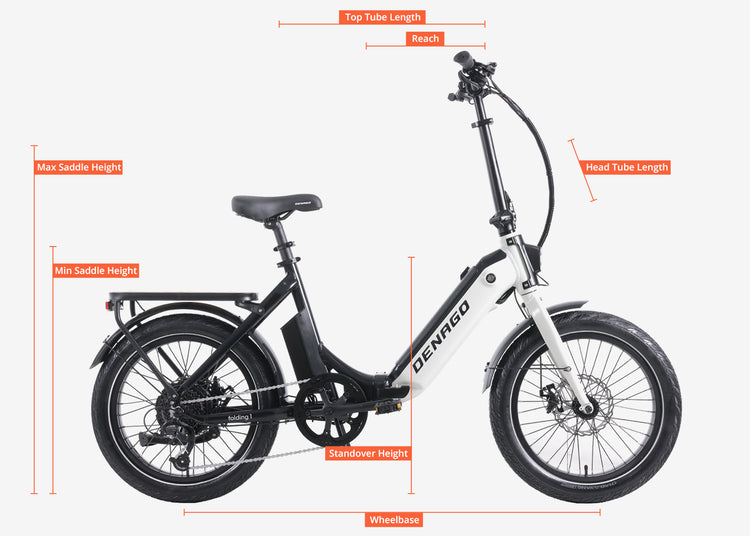

Geometry
Fits | 5'1" - 6'5" |
Wheelbase | 45.3"/1150mm |
Top Tube Length | - |
Head Tube Length | 6.9"/175mm |
Standover Height | 21.7"/550mm |
Reach | 5.1"/129mm |
Technical Specifications
Battery | 48 volts, 14 Ah (672 Wh) Li-Ion |
Charger | 54.6V3A |
Speed | 25 MPH on pedal assist, 20 MPH on throttle (Class III eBike) |
Range | 57 miles max range |
Motor | 500W rear hub motor 90 NM torque |
Wheel Size | 20" x 3" |
Display | LCD Display |
Crank Set | 48T Aluminum cover |
Derailleur | Shimano 7 speed |
Front Fork | None suspension |
Frame | A6061 Aluminum Alloy |
Throttle | Thumb throttle |
Kickstand | included |
Rims | 20",Al-alloy |
Saddle | 34.9MM_380mm-552mm retractable/aluminum/matte black |
Sensor | Speed |
Head Tube Angle | 71° |
Seat Tube Angle | 73° |
Rear Chainstay Length | 16.9"/430mm |
Front Wheel Center | 28.3"/720mm |
Stack Height | 19.3"/489mm |
Fork Length | 14.2"/360mm |
Fork Offset | 1.6"/40mm |
Fork rake | 1.8"/45mm |
Crank Length | 6.7"/170mm |
Grips | 5.1"/130mm |
Seatpost | 34.9MM_380mm-552mm |
Shift Lever | 1x7 |
BRAKES | Mechaninical disc brakes |
Crankset | 48T Aluminum cover |
Seat Clamp | φ40mm |
Front Head Light | 6V LED |
Ebike Class | 3 |
500 W
motor
57 Miles
range
Integrated Lights
TURN SIGNALS
LG 48V 14Ah
battery
300 LBS
PAYLOAD CAPACITY
25 MPH
Top Speed
300+ Bike Shops
eBike service & test rides
Safety Certified
In accordance withUL2849 and UL2271
See the Folding 1 in Action!
Throttle Only |
Pedal-Assist |
|||||
1PAS | 2PAS | 3PAS | 4PAS | 5PAS | ||
Range : |
30Miles |
57Miles |
51Miles |
41Miles |
35Miles |
31Miles |
Range : |
|||
Throttle |
30Miles |
||
Pedal |
57Miles |
1PAS | |
51Miles |
2PAS | ||
41Miles |
3PAS | ||
35Miles |
4PAS | ||
31Miles |
5PAS |
Discover Design Advantages
An e-bike that conquers all terrain and is never field controlled. Come and feel its charm.
Folds for maximum portability
Ride your way
Power Up Your Pedaling
One size fits almost everyone

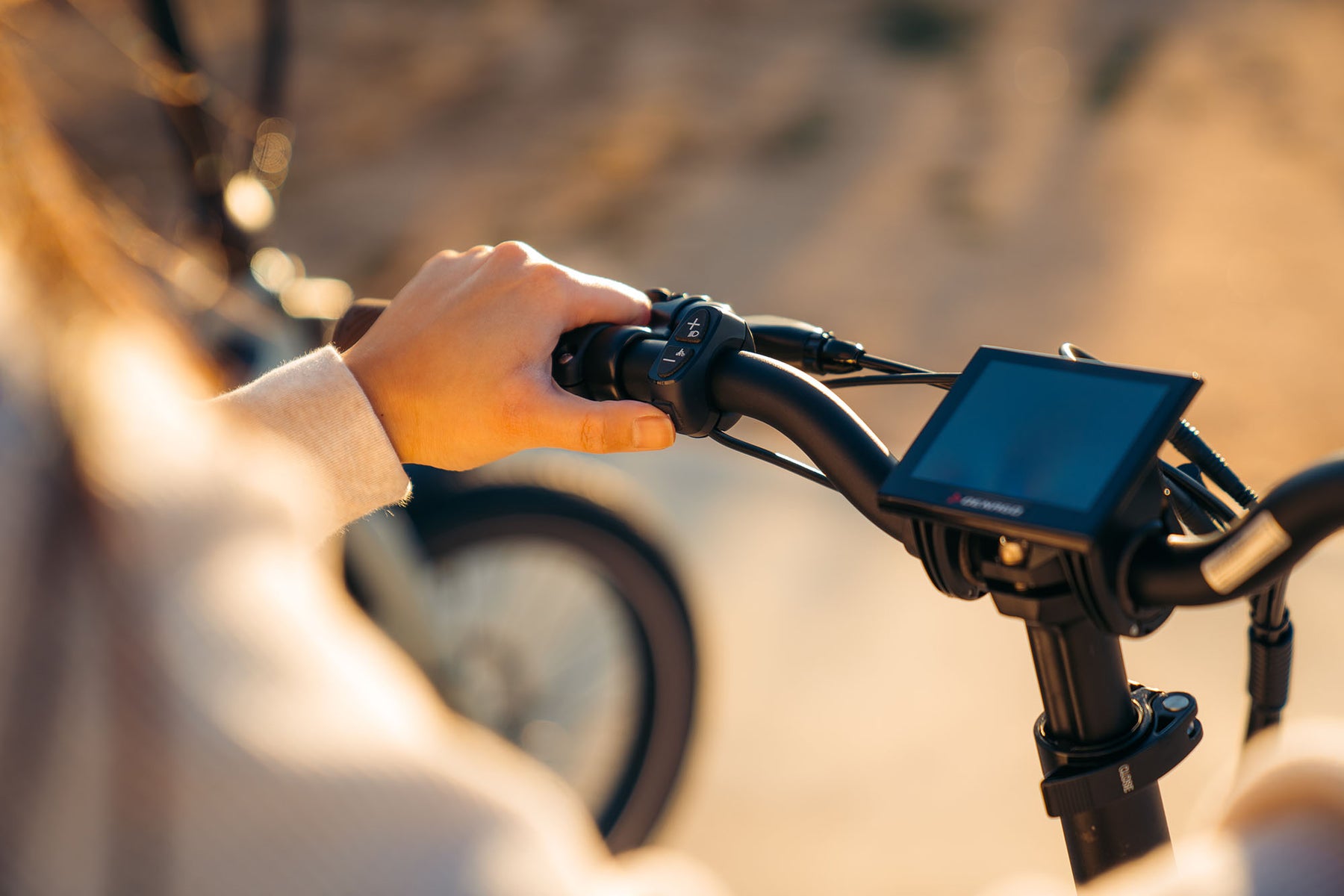

Throttle Safely
3'' wide tires
Powerful disc brakes

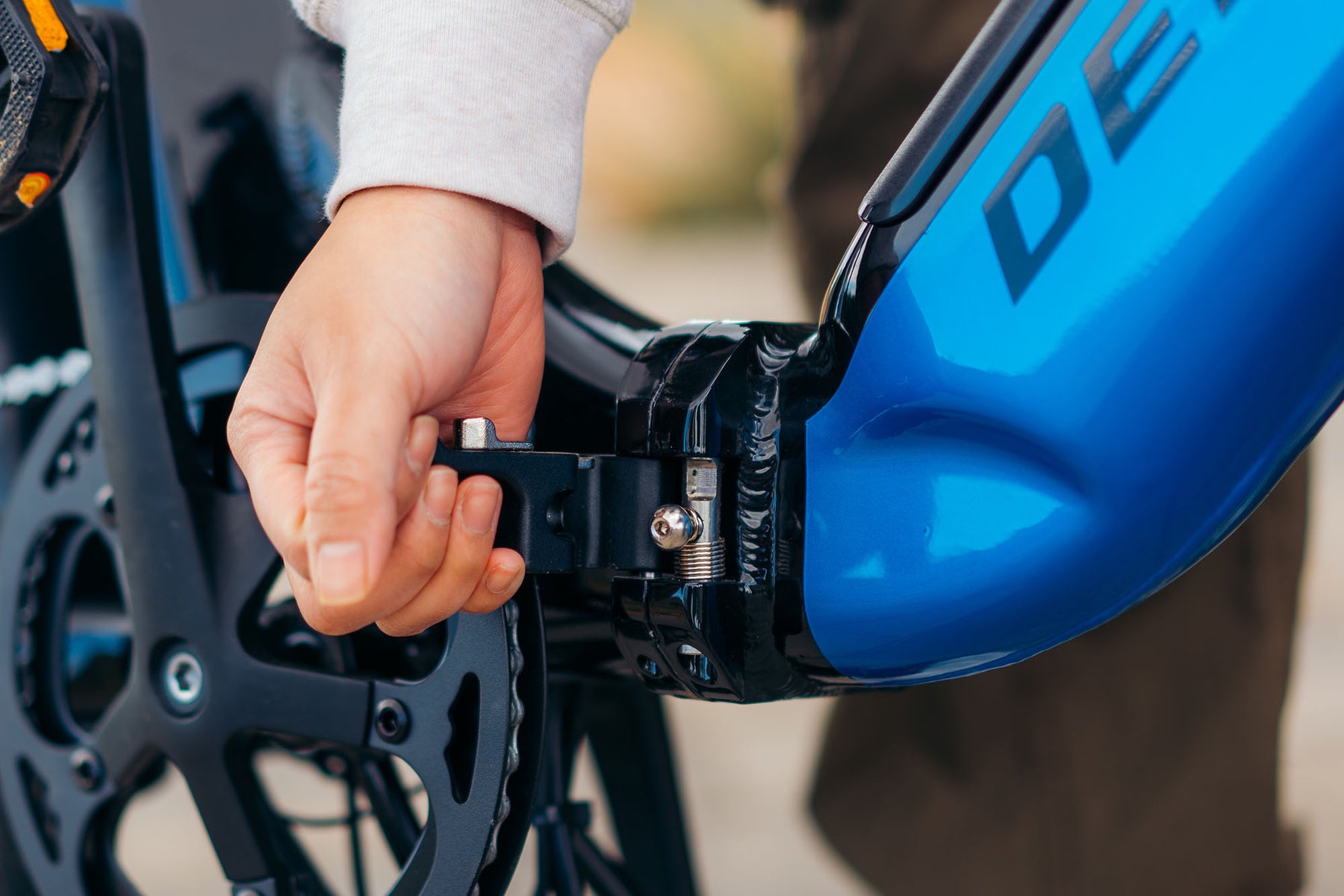

Folding pedals, frame, and handlebar
Padded saddle & telescoping seatpost
7 speed shifter & rear derailleur
How it fits
Tam is 5'2" tall
Shown riding Folding 1, One Size
Johnathan is 6'1" tall
Shown riding Folding 1, One Size
Ally is 5'7'' tall
Shown riding Folding 1,One Size
Ella is 5'9'' tall
Shown riding Folding 1,One Size
Geometry
Dimension
Size
Wheelbase
45.3"/1150mm
Head Tube Length
6.9"/175mm
Standover Height
21.7"/550mm
Reach
5.1"/129mm
