Bafang Mid-Drive 250W
motor
87 Miles
range
Torque Sensor
Sensor
Bafang 48V 10.4 Ah
battery
300 LBS
PAYLOAD CAPACITY
Suntour
Suspension
300+ Bike Shops
eBike service & test rides
Safety Certified
In accordance with UL2849 and UL2271

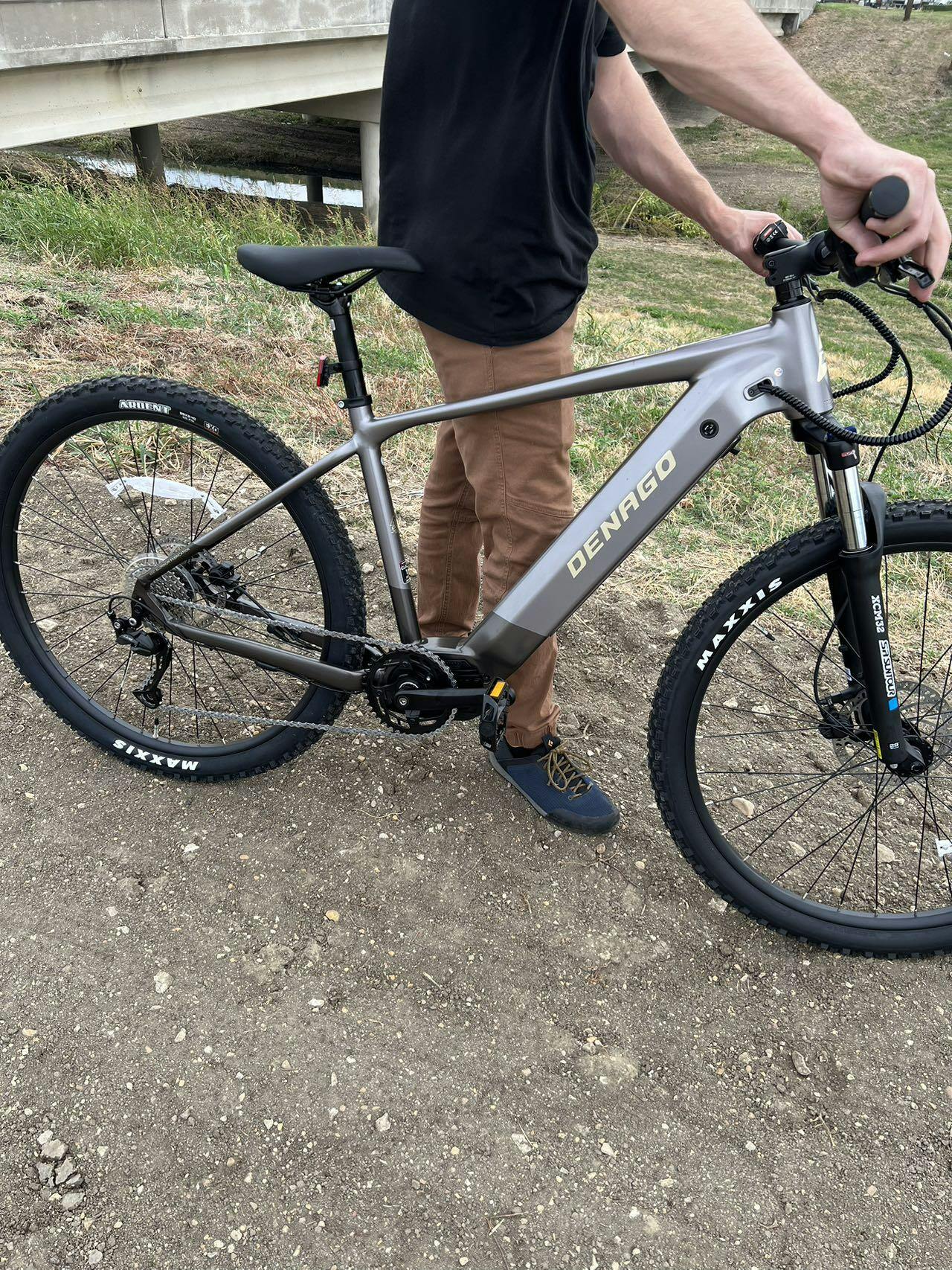

Denago eXC1 eMTB Mountain eBike
Perfect Mountain eBike Starter.
Our eXC1 eMTB proves that you don't have to break the bank to own a trail-worthy electric mountain bike capable of standing up to true off-road riding. Built around the Bafang M410 mid-drive motor with torque sensor, the eXC1 features 29" wheels with Maxxis tires, hydraulic disc brakes, suspension fork, and a reliable Shimano drivetrain.
This Class I eBike offers up to 20 MPH of pedal assist for access to the widest variety of locations possible. Select your desired level of pedal assist from the minimalist handlebar remote and hit the trails.
TIME
REMAINING
Size
2 Year Warranty
Free Shipping
15-Day Returns
Geometry
| Frame Size | M | L | XL |
| Height | 5'5''-5'9'' | 5'10''-6'1'' | 6'1''-6'5'' |
| Wheelbase | 47.8"/1214mm | 48.39''/1229mm | 48.98''/1244mm |
| Top Tube Length | 24.76"/629mm | 25.87''/657mm | 26.46''/672mm |
| Head Tube Length | 5.5"/140mm | 5.5"/140mm | 5.5"/140mm |
| Standover height | 29.33"/745mm | 30.94''/786mm | 32.13''/816mm |
| Reach | 17.44"/443mm | 18.03''/458mm | 18.62''/473mm |
| Min Saddle Height | 31.7"/805mm | 31.7"/805mm | 31.7"/805mm |
| Max Saddle Height | 39"/990mm | 39"/990mm | 39"/990mm |
Technical Specifications
| Frame Size | M | L | XL |
| Battery | 499Wh Bafang Battery | 499Wh Bafang Battery | 499Wh Bafang Battery |
| Maximum Weight | 300 lbs | 300 lbs | 300 lbs |
| Item Weight | 56 lbs | 56 lbs | 56 lbs |
| Charger | 54.6V2A | 54.6V2A | 54.6V2A |
| Speed | 20 MPH on pedal assist (Class I eBike) | 20 MPH on pedal assist (Class I eBike) | 20 MPH on pedal assist (Class I eBike) |
| Range | 87 miles max range | 87 miles max range | 87 miles max range |
| Motor | 250 Watt Bafang Mid-Drive Motor | 250 Watt Bafang Mid-Drive Motor | 250 Watt Bafang Mid-Drive Motor |
| Wheel Size | 29x2.4" | 29x2.4" | 29x2.4" |
| Display | Bafang display | Bafang display | Bafang display |
| Seat Tube Length | 420mm | 470mm | 508mm |
| Bottom Bracket Drop | 60mm | 60mm | 60mm |
| Derailleur | Shimano-9 speed | Shimano-9 speed | Shimano-9 speed |
| Front Fork | Front suspension | Front suspension | Front suspension |
| Frame | A6061 Aluminum Alloy | A6061 Aluminum Alloy | A6061 Aluminum Alloy |
| Throttle | None | None | None |
| Handlebar | 740mm
|
780mm | 780mm |
| Kickstand | None | None | None |
| Rims | 29" ,Al-alloy | 29" ,Al-alloy | 29" ,Al-alloy |
| Saddle | 1196 | 1196 | 1196 |
| Sensor | Torque | Torque | Torque |
| Head Tube Angle | 67.5° | 67.5° | 67.5° |
| Seat Tube Angle | 73° | 73° | 73° |
| Rear Chainstay Length | 480mm | 480mm | 480mm |
| Front Wheel Center | 740mm | 755mm | 770mm |
| Stack Height | 651mm | 651mm | 651mm |
| Fork Length | 517mm | 517mm | 517mm |
| Fork Offset | 46mm | 46mm | 46mm |
| Fork rake | 40mm | 40mm | 40mm |
| Stem length | 50mm | 50mm | 50mm |
| Crank Length | 170mm | 170mm | 170mm |
| Grips | 130mm | 130mm | 130mm |
| Seatpost | 31.6x350L | 31.6x350L | 31.6x350L |
| Shift Lever | 1x9 | 1x9 | 1x9 |
| BRAKES | Trktro Hydraulic disc brakes | Trktro Hydraulic disc brakes | Trktro Hydraulic disc brakes |
| Crankset | 40T | 40T | 40T |
| Seat Clamp | φ35mm | φ35mm | φ35mm |
| Front Head Light | N/A | N/A | N/A |
| ebike class | 1 | 1 | 1 |
Bafang Mid-Drive 250W
motor
87 Miles
range
Torque Sensor
Sensor
Bafang 48V 10.4 Ah
battery
300 LBS
PAYLOAD CAPACITY
Suntour
Suspension
300+ Bike Shops
eBike service & test rides
Safety Certified
In accordance with UL2849 and UL2271
See the eXC1 in Action!
Entry-Level Hardtail That Packs Loads of Fun
Electric Bike Report
The Best Budget E-MTBs of 2023? We Review The Denago eXC1 and eXC2 Electric Mountain Bikes
Ebike Escape
Bafang 510 ebike motor tested - how quiet and how fast is it?
E-MTB Review
eMTBs Don't Have To Break The Bank! Denago eXC Mountain Bikes
Ebike Escape
Denago's new eXC1 and eXC2 line of 29" hardtail eBikes
Denago eBikes
Pedal-Assist |
||||||
| 1PAS | 2PAS | 3PAS | 4PAS | 5PAS | ||
Range: |
87Miles |
67Miles |
46Miles |
36Miles |
33Mile |
|
Range: |
|||
Pedal |
87Miles |
1PAS | |
67Miles |
2PAS | ||
46Miles |
3PAS | ||
36Miles |
4PAS | ||
33Miles |
5PAS |
Discover Design Advantages
An e-bike that conquers all terrain and is never field controlled. Come and feel its charm.
Shimano 9 speed drivetrain
5 Pedal Assist Modes
Class I eBike
Handlebar remote
Maxxis Ardent 29x2.4'' tires
Hydraulic disc brakes
Suntour XCM32 suspension fork
Shift Sensing Technology
How it fits
Wilt is 5'7" tall
Shown riding size Medium
Justin is 5'11" tall
Shown riding size Large
Anna is 5'11" tall
Shown riding size Large
Wilt is 5'7" tall
Shown riding size Medium
Justin is 5'11" tall
Shown riding size Large
Anna is 5'11" tall
Shown riding size Large
Geometry
Dimension
M
L/XL
Wheelbase
47.8"
48.39''/48.98''
Top Tube Length
24.76"
25.87''/26.46''
Head Tube Length
5.5"
5.5"/5.5"
Reach
17.44"
18.03''/18.62''
Standover height
29.33"
30.94''/32.13''
Min Saddle Height
31.7"
31.7"/31.7"
Max Saddle Height
39"
39"/39"
Main features
More details
Compare
Customer Reviews
I recently purchased the DENAGO EXC1 MOUNTAIN EBIKE, and I couldn't be more thrilled with my investment! From the moment I hopped on, I felt like I was soaring through the streets with ease. The sleek design caught my eye, but it's the performance that truly blew me away. The battery life is impressive, giving me extended rides without worry. The electric assist is smooth and powerful, making uphill climbs a breeze. Plus, the intuitive controls and adjustable settings allow for a personalized riding experience. The DENAGO EXC1 EBIKE has exceeded all my expectations. I highly recommend it to anyone in the market for a high-quality, reliable, and thrilling electric bike experience!
Hi Luis R. Gonzalez,
Thank you for your feedback! We're thrilled you're enjoying your DENAGO EXC1 MOUNTAIN EBIKE. Happy riding!
-Denago
This a very solid bike, rides very smooth and fast. The assembly is short, pretty much putting the front wheel on. Customer service was very helpful, my bike arrive defective, it was not charging. Customer service fixed it though and was very helpful. Would highly recommend this bike
Love the bike. I live in an area with a lot of hills and wanted to try an ebike. This works great and has enough power to get me up the big hills. Love it.
We purchased this bike for our son for the holidays and he absolutely loves it! The sellers have been incredibly helpful and stay in contact to make sure that we appreciate our purchase which is wonderful.
I drove the bike this morning, it's quick I love it
