Bafang 750 W
motor
77 Miles
range
Torque Sensor
Sensor
LG 48V 20Ah
battery
290 LBS
PAYLOAD CAPACITY
28 MPH
Top Speed
300+ Bike Shops
eBike service & test rides
Safety Certified
In accordance with UL2849 and UL2271

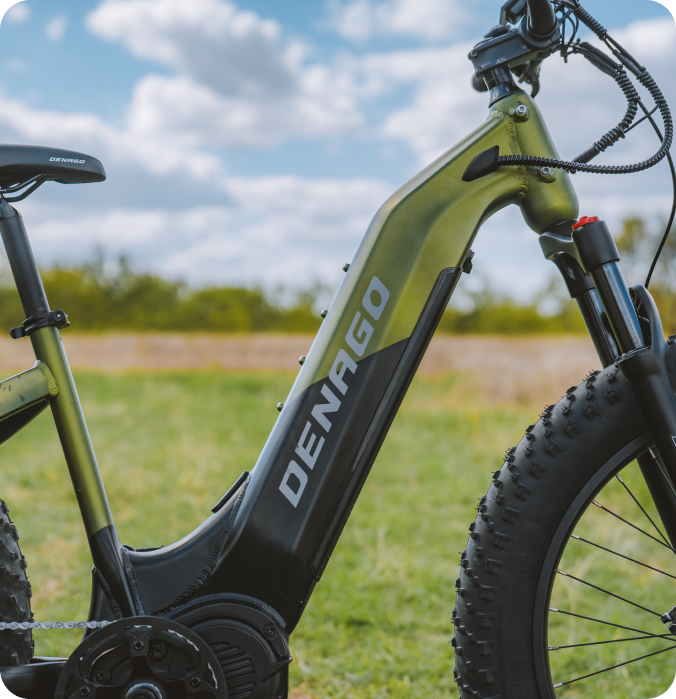

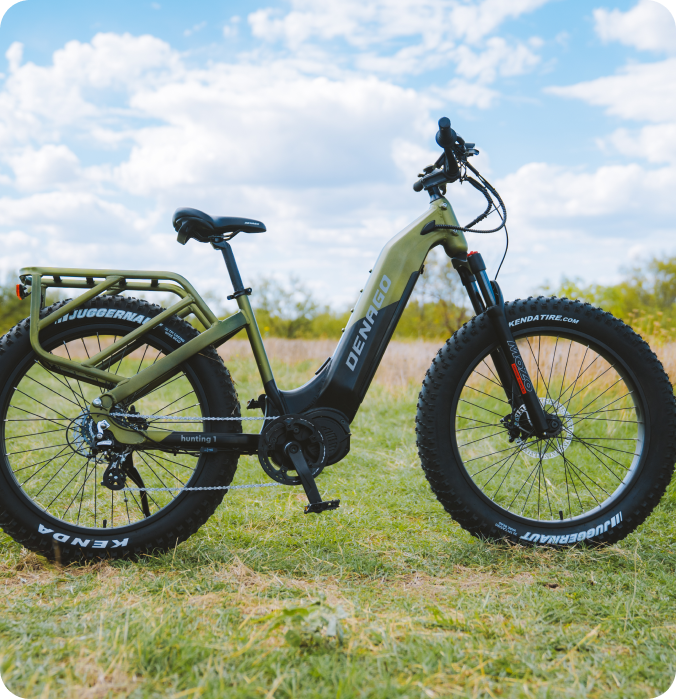

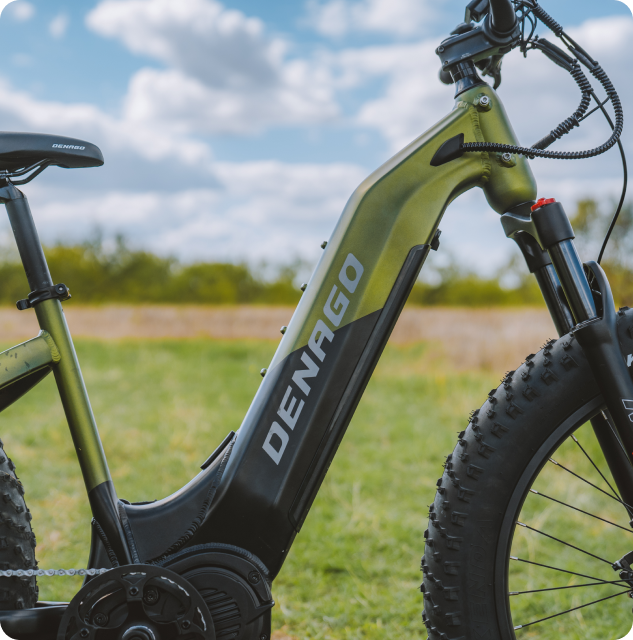

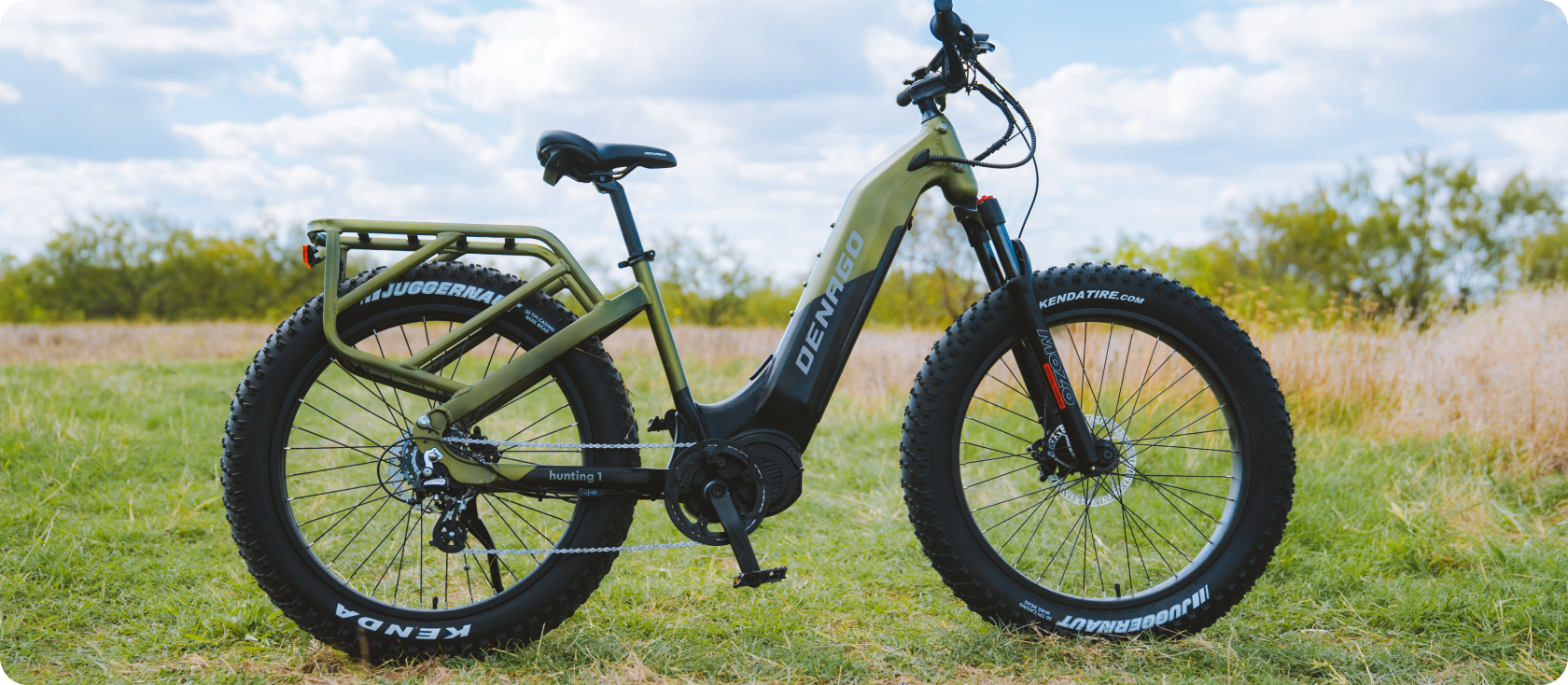

Denago Hunting 1 eMTB Mountain eBike
Bafang 1000W Peak 120 Miles Max Range All Terrian eBike.
Our Hunting 1 eBike gives you the freedom to explore the great outdoors. Hunt, fish, or camp in remote locations, and haul all the gear you need with optional trailers to expand your carrying capacity. The Hunting 1 is dual battery capable, so its max range can be extended from 76 miles all the way to 120 miles. Armed with an off-road eBike like this, you can reach deer blinds or fishing holes in near silence, with no emissions or engine noise to scare away game.
TIME
REMAINING
Size
2 Year Warranty
Free Shipping
15-Day Returns
Geometry
Frame Size | One Size |
Height | 4'9''-6'1'' |
Wheelbase | 48.8"/1239mm |
Top Tube Length | N/A |
Head Tube Length | 6.7"/170mm |
Standover Height | 29"/737mm |
Reach | 5.4" /137mm |
Min Saddle Height | N/A |
Max Saddle Height | N/A |
Technical Specifications
Frame Size | One Size |
Battery |
LG 48V 20Ah (960Wh) dual 48V 10.4Ah |
Maximum Weight | 290 lbs |
Item Weight | 86 lbs |
Charger | 54.6V3A |
Speed | 28 MPH on pedal assist |
Range | 77 miles, dual 120miles |

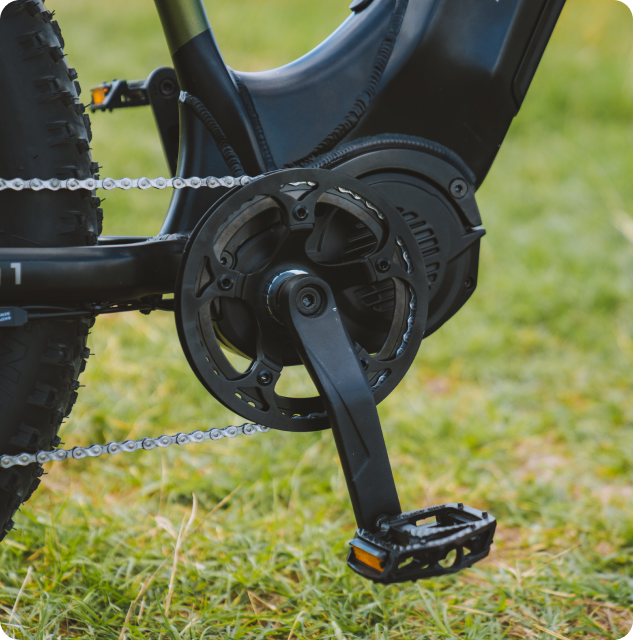

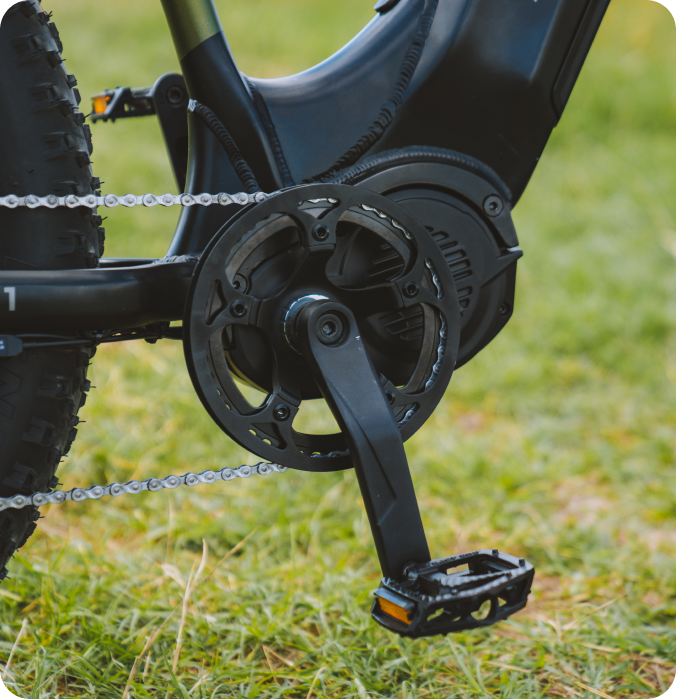

Motor | Bafang 750W (1000W peak) mid drive 160Nm |
Wheel Size | Kenda All Terrain 26" x 4.5" |
Display | LCD display |
Seat Tube Length | 18.5"/470mm |
Bottom Bracket Drop | 2.3"/58mm |
Derailleur | Shimano 7 speed |
Front Fork | Front suspension |
Frame | 6061-T6 Aluminum Alloy |
Throttle | Thumb throttle |
Handlebar | 28.3"/720mm |
Kickstand | included |
Rims | 26", Al-alloy |
Saddle | Aluminum/Matte black |
Sensor | Torque Sensor |
Head Tube Angle | 70° |
Seat Tube Angle | 73° |
Rear Chainstay Length | 20.3"/515mm |
Front Wheel Center | 28.8"/732mm |
Stack Height | 28.3"/719mm |
Fork Length | 21.7"/550mm |
Fork Offset | 2"/51mm |
Fork rake | 1.7"/42mm |
Stem length |
3"/75mm |
Crank Length | 6.7"/170mm |
Grips | 5.1"/130mm |
Seatpost | 30.4*350L |
Shift Lever | 1x7 |
BRAKES | Radius Hydraulic dis w/ 203mm rotors |
Crankset | 44T |
Seat Clamp | φ35mm |
Front Head Light | 6V LED |
ebike class | 3 |
Bafang 750 W
motor
77 Miles
range
Torque Sensor
Sensor
LG 48V 20Ah
battery
290 LBS
PAYLOAD CAPACITY
28 MPH
Top Speed
300+ Bike Shops
eBike service & test rides
Safety Certified
In accordance with UL2849 and UL2271
See the Hunting 1 eMTB in Action!
Throttle Only |
Pedal-Assist |
|||||
1PAS | 2PAS | 3PAS | 4PAS | 5PAS | ||
Range : |
42Miles |
77Miles |
66Miles |
58Miles |
49Miles |
37Miles |
Range : |
|||
Throttle |
42Miles |
||
Pedal |
77Miles |
1PAS | |
66Miles |
2PAS | ||
58Miles |
3PAS | ||
49Miles |
4PAS | ||
37Miles |
5PAS |
Discover Design Advantages
An e-bike that conquers all terrain and is never field controlled. Come and feel its charm.
Pedal Assist & Throttle
28MPH Top Speed
Brighten Your Ride

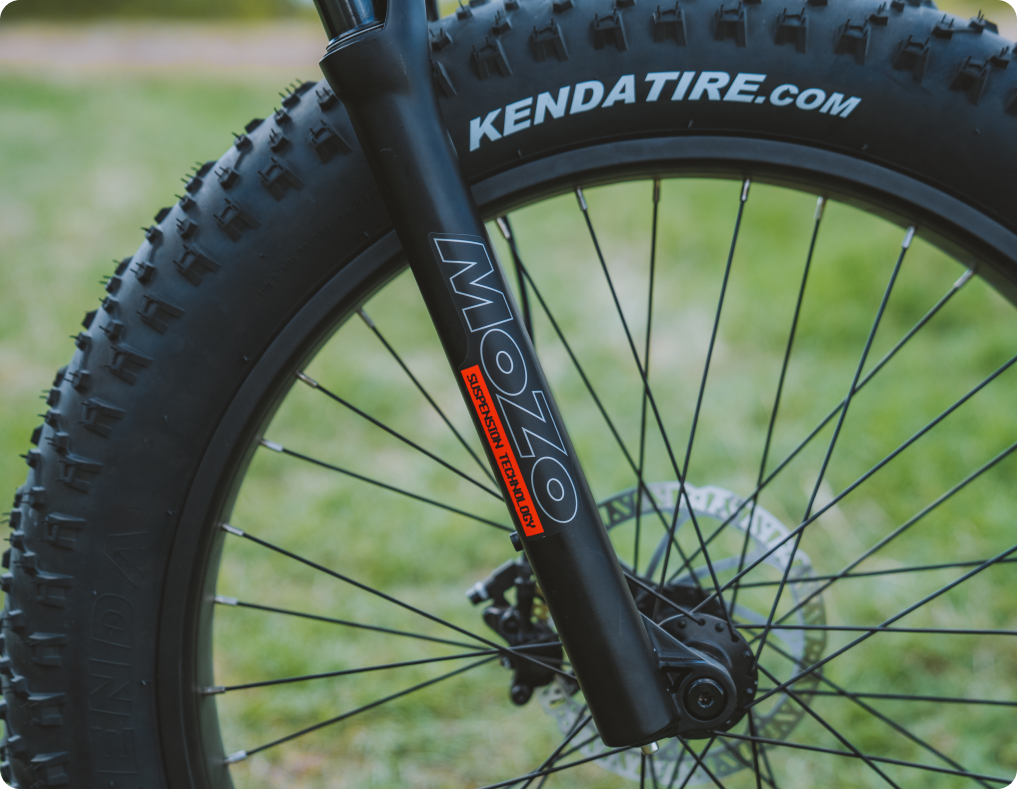

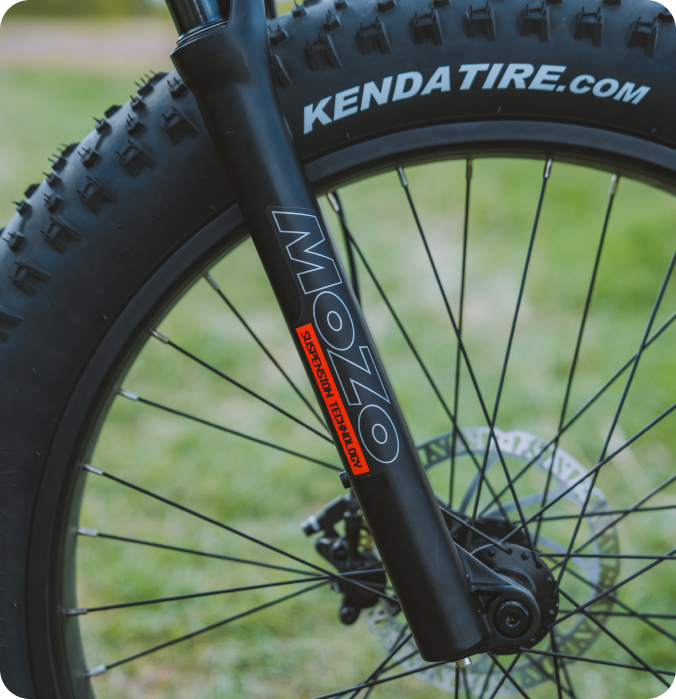

Hydraulic Front Suspension
4.5'' Kenda All Terrian Fat Tires
Czech Hydraulic Disc Brakes
Charge your Phone
Rear rack
How it fits
Geometry
Dimension
Size
Wheelbase
48.8"/1239mm
Top Tube Length
N/A
Handlebar
28.3"/720mm
Head Tube Length
6.7"/170mm
Standover Height
29"/737mm
Min Saddle Height
N/A
Max Saddle Height
N/A
