500 W
motor
62 Miles
range
Torque Sensor
Sensor
LG 48V 14Ah
battery
300 LBS
PAYLOAD CAPACITY
28 MPH
Top Speed
300+ Bike Shops
eBike service & test rides

Safety Certified
In accordance with UL2849 and UL2271

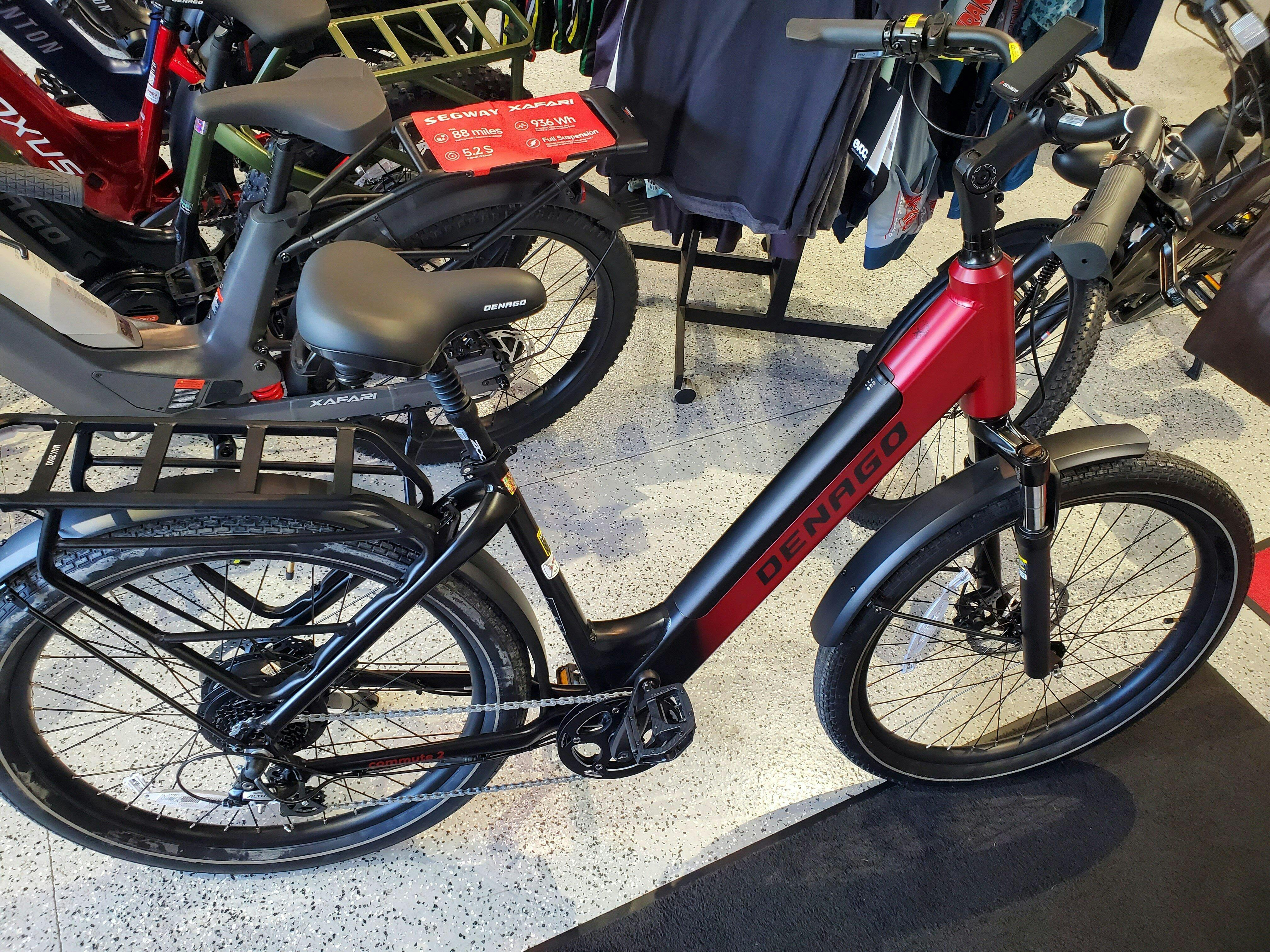

Denago Commute 2 Step-Thru eBike
TIME
REMAINING
Size
2 Year Warranty
Free Shipping
15-Day Returns
Geometry
Frame Size | S/M | L/XL |
Height | 4'9''-5'7'' | 5'7''-6'5'' |
Wheelbase | 1154mm/45.43'' | 1154mm/45.43'' |
Top Tube Length | 653mm/25.71'' | 653mm/25.71'' |
Head Tube Length | 180mm/7.09'' | 230mm/9.06'' |
Reach | 384mm/15.12'' | 365mm/14.37'' |
Standover Height | 667mm/26.26'' | 715mm/28.15'' |
Min Saddle Height | 31.5" | 35.4'' |
Max Saddle Height | 40.6" | 44.5'' |
Technical Specifications
Frame Size | S/M | L/XL |
Battery | 672 Wh Battery | 672 Wh Battery |
Charger | 54.6V/3A | 54.6V/3A |
Speed | 28 MPH | 28 MPH |
Range | 62+ Miles of Range | 62+ Miles of Range |
Motor | 500 Watt Rear Hub Motor | 500 Watt Rear Hub Motor |
Wheel Size | 27.5×2.6" anti-puncture, safety reflective stripe | 27.5×2.6" anti-puncture, safety reflective stripe |
Display | Kimmitt Color Screen | Kimmitt Color Screen |
Brakes | Hydraulic Disc Brakes Front+Rear | Hydraulic Disc Brakes Front+Rear |
Charge Time | 4.5~5H | 4.5~5H |
Maximum Weight | 300lbs | 300lbs |
Derailleur | Shimano 8-speed | Shimano 8-speed |
Frame | A6061 Aluminum Alloy, Step-thru style | A6061 Aluminum Alloy, Step-thru style |
Throttle | Thumb throttle | Thumb throttle |
Handlebar | 690mm/27.17'' | 690mm/27.17'' |
Kickstand | included | included |
Lights | Front Head Light(6V LED) | Front Head Light(6V LED) |
SHIFT LEVER | 1x8 | 1x8 |
Sensor | Torque Sensor | Torque Sensor |
PAS | 5 PAS | 5 PAS |
Seat Tube Length | 400mm/15.75'' | 510mm/20.08'' |
Bottom Bracket Drop | 55mm/2.17'' | 55mm/2.17'' |
Head Tube Angle | 69° | 69° |
Seat Tube Angle | 68.1° | 68.1° |
Rear Chainstay Length | 490mm/19.29'' | 490mm/19.29'' |
Front Wheel Center | 670mm/26.38'' | 670mm/26.38'' |
Stack Height | 472mm/18.58'' | 470mm/18.5'' |
Fork Length | 500mm/19.69'' | 500mm/19.69'' |
Fork Offset | 46mm/1.81'' | 46mm/1.81'' |
Fork rake | 40mm/1.57'' | 40mm/1.57'' |
Chain stay length | 490mm/19.29'' | 490mm/19.29'' |
Stem length | 90mm/3.54'' | 90mm/3.54'' |
Crank Length | 170mm/6.69'' | 170mm/6.69'' |
Grips | 130mm/5.12'' | 130mm/5.12'' |
Seatpost | 30.4x350L | 30.4x350L |
Saddle | CL-7038 | CL-7038 |
Crankset | 42T Aluminum cover | 42T Aluminum cover |
Rim | 27.5, Al-alloy | 27.5, Al-alloy |
Weight | 66lbs | 68lbs |
Seat Clamp | φ35mm | φ35mm |
500 W
motor
62 Miles
range
Torque Sensor
Sensor
LG 48V 14Ah
battery
300 LBS
PAYLOAD CAPACITY
28 MPH
Top Speed
300+ Bike Shops
eBike service & test rides

Safety Certified
In accordance with UL2849 and UL2271
See the Coummte 2 in Action!


Throttle Only |
Pedal-Assist |
|||||
1PAS | 2PAS | 3PAS | 4PAS | 5PAS | ||
Range : |
21Miles |
62Miles |
49Miles |
41Miles |
31Miles |
25Miles |
Range : |
|||
Throttle |
21Miles |
||
Pedal |
62Miles |
1PAS | |
49Miles |
2PAS | ||
41Miles |
3PAS | ||
31Miles |
4PAS | ||
25Miles |
5PAS |

Discover Design Advantages
An e-bike that conquers all terrain and is never field controlled. Come and feel its charm.


UL 2271 Certified
Hydraulic disc brakes front+rear
Torque Sensor
Wanda 27.5×2.6'' Tire


Throttle Safely
Front Suspension fork
Shimano 8-speed,Smooth shifting


Adjustable stem
Comfortable spring seat
500W rear hub motor,Galloping Freedom
How it fits
Geometry
Dimension
S/M
L/XL
Wheelbase
45.43''
45.43''
Top Tube Length
25.71''
25.71''
Head Tube Length
7.09''
9.06''
Standover Height
26.26''
28.15''
Min Saddle Height
31.5"
35.4"
Max Saddle Height
40.6"
44.5"


Main features
