eBike Features
Collapsible content
See Full eBike Specifications
Top Speed:
20 MPH on pedal assist (Class I eBike)
Motor:

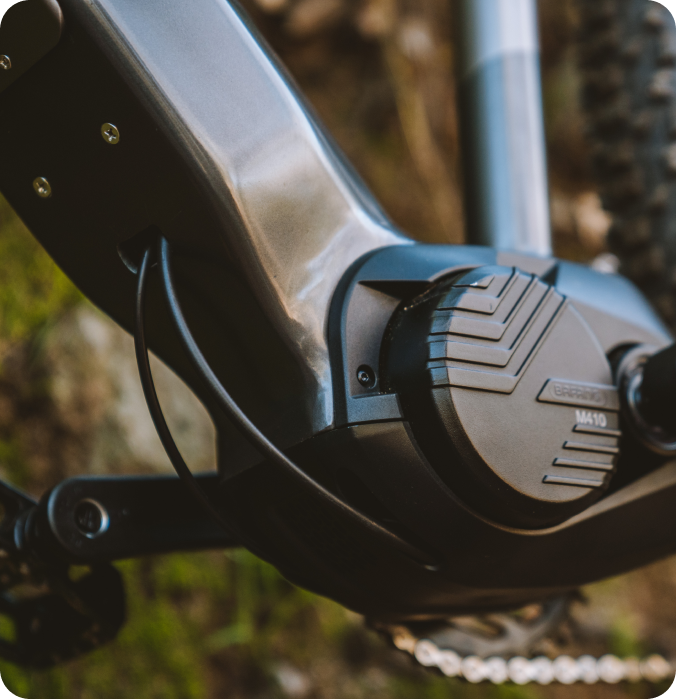

Bafang M410 Mid-drive, 48V, 250W; 80Nm torque
Battery:
Bafang 499 Wh (48V, 10.4 Ah)
Sensors:
Torque, Speed
Throttle:
None
Display:
None
Charger:
Multi-voltage 110-240V, 3A Fast Charger with USA plug
Safety Data Sheets (SDS):
Denago safety data sheets are available upon request via email.
COMPONENT HIGHLIGHTS
Collapsible content
See Full Component Specifications
FRAME AND FORK
Frame:
6061-T6 Aluminum Alloy

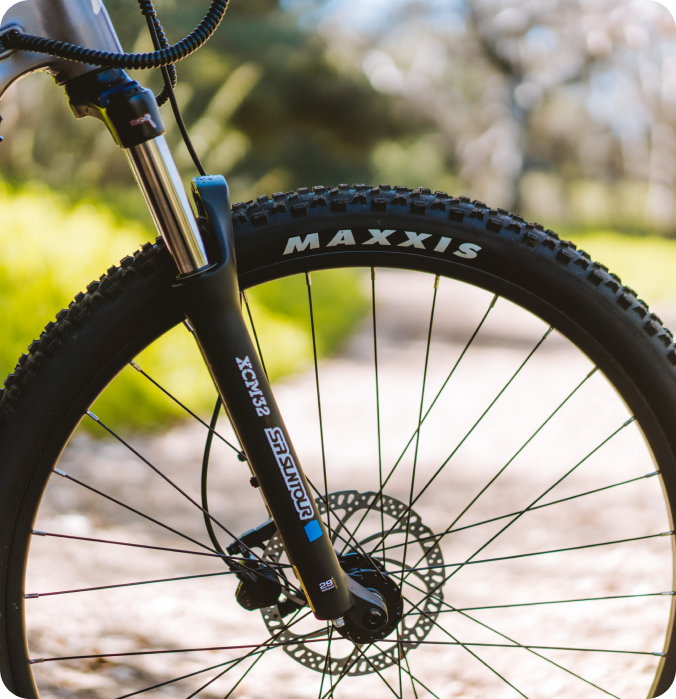

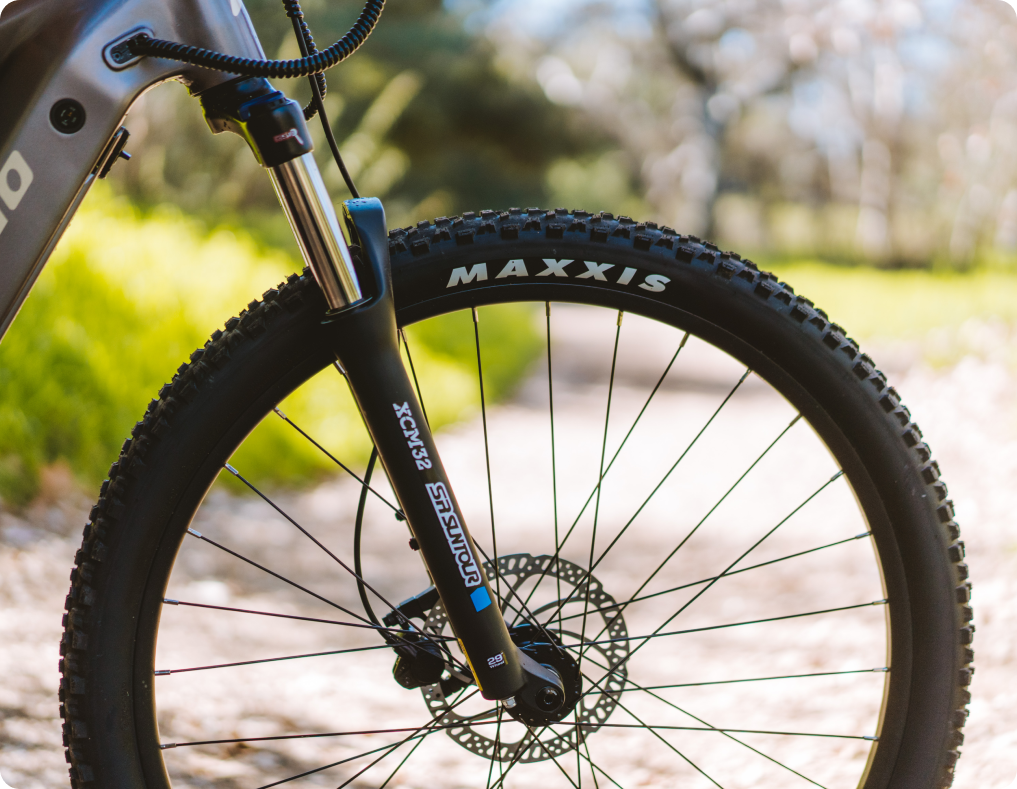

Fork:
SR Suntour XCM32 NLO, 100mm travel, 1.5" to 1 1/8" tapered, thru-axle with 100mm spacing
Kickstand:
None

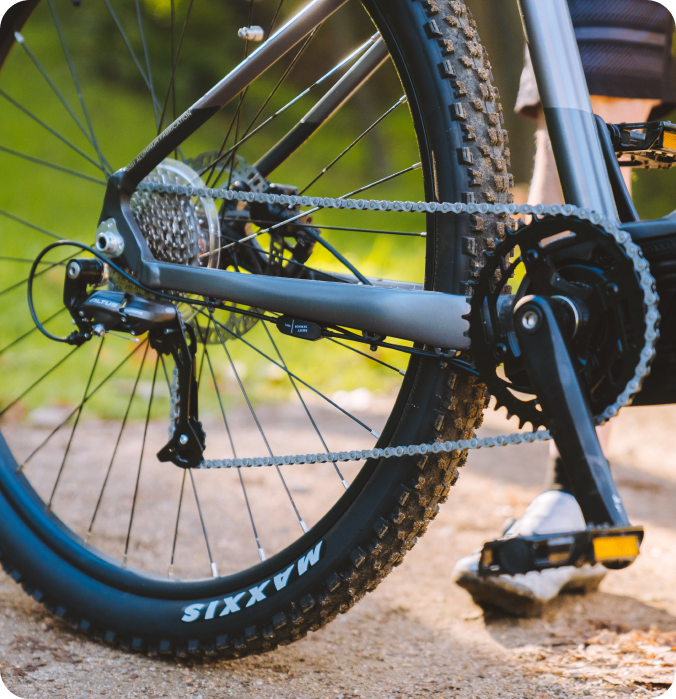

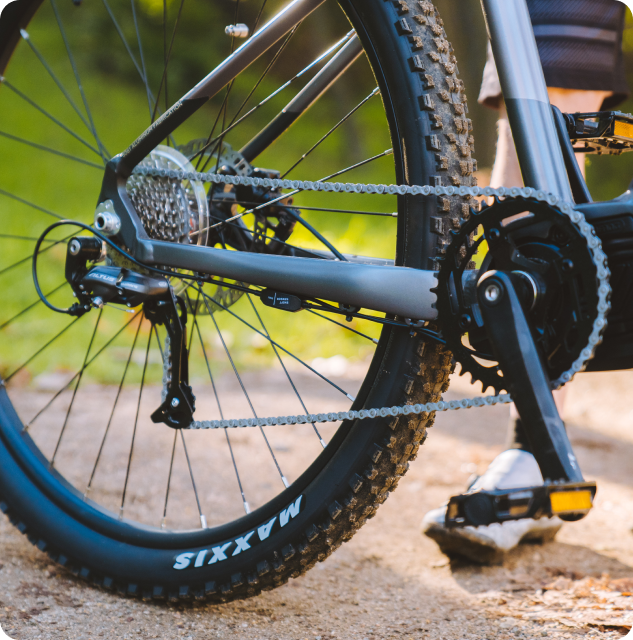

DRIVETRAIN
Pedals:
Black alloy, 9/16"
Crankset:
Bafang alloy with 40 tooth narrow-wide style chainring

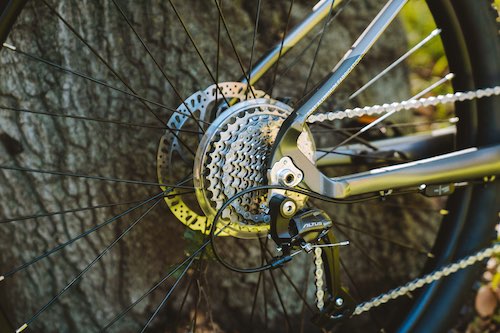

Rear Derailleur:
Shimano Alivio RD-M3100, 9 speed, Shadow
Cassette:
Shimano CS-HG201, 9 speed, 11-32 teeth
Shifter:
Shimano Altus SL-M2010, 9 speed
Chain:
KMC E9 Sport
COCKPIT
Handlebar:
Zoom, aluminum alloy, 31.8mm clamp diameter
740mm long (size M)
780mm long (size L/XL)
Grips:
Black rubber, lock-on style
Stem:
Zoom aluminum alloy, 31.8mm clamp, 1 ⅛” threadless
Headset:
1 ⅛” - 1.5" tapered, sealed, threadless
Saddle:
Denago
Seatpost:
Zoom aluminum alloy, 31.6mm diameter, 350mm long
Seatpost Clamp:
Zoom, hex bolt

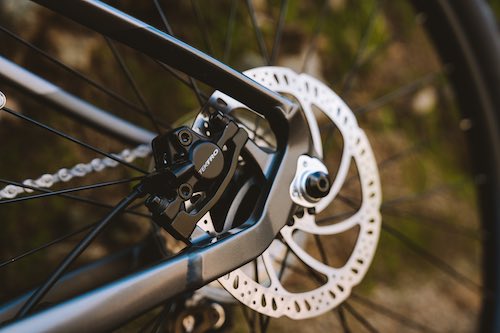

BRAKES
Levers:
Tektro HD-E350 hydraulic disc
Calipers:
Tektro HD-E350 hydraulic disc
Rotors:
Tektro 180mm, 6 bolt type
WHEELS
Tires:
Maxxis Ardent, 29x2.4", EXO casing
Tubes:
29" butyl rubber
Rims:
Aluminum Alloy, 32 holes, 29"
Hubs:
Front - sealed cartridge bearing, 6 bolt disc brake, 15mm thru-axle
Rear - sealed cartridge bearing, 6 bolt disc brake, 12x142mm thru-axle
Spokes:
Front - 32 spokes, 13 gauge
Rear - 32 spokes, 13 gauge
Nipples:
Brass
WEIGHT AND PAYLOAD
Complete eBike with battery:
56 lbs
Maximum rider weight:
300 lbs
WHAT'S IN THE BOX
Complete eBike
Keys
Lithium-Ion battery
3 Amp fast charger
Quickstart guide
Wheel reflectors
Assembly Tools (pedal wrench, multi-tool)
COVID-19 has created specific challenges in the bicycle industry, especially around the availability of the components required to manufacture eBikes. As a result, we reserve the right to make substitutions of equivalent components of equal or better value to ensure we can consistently deliver our eBikes in a timely fashion. Thanks for understanding!
WATCH: eXC1 ON THE MARSHALL CANYON TRAIL
SIZE AND FIT
Collapsible content
Full geometry chart and dimensions

Our size and fit recommendations
Riders 5'7" - 5'9", Medium
Riders 5'10" - 6'1", Large
Riders 6'1 - 6'5", Extra Large
