Our Denago folding eBike is a powerful, compact model ideal for van life, RV travel, or anywhere with limited storage space. When folded, it fits into a compact space just 20" wide, 35" long, and 30" tall.

Easy to store and transport thanks to a folding frame, pedals, and handlebar. Features both pedal assist and throttle modes with a sleek, hidden internal battery. The combo of the ultra-low standover height frame and telescoping seatpost means almost everyone can ride, regardless of height or inseam.

Denago Folding 1 eBike

Best powerful folding cargo ebike

Regular price $1,499.00
Regular price $1,699.00 Sale price $1,499.00
Sale Sold out
Size: One Size
Color: Gray with Black

✔️2-Year Warranty

✔️0% APR Up to 12 Months

Free shipping on all eBikes

Lifetime frame warranty

Free assembly tools

UL 2849 Safety Certified

Questions? Let us help

Our Denago folding eBike is a powerful, compact model ideal for van life, RV travel, or anywhere with limited storage space. When folded, it fits into a compact space just 20" wide, 35" long, and 30" tall.

Easy to store and transport thanks to a folding frame, pedals, and handlebar. Features both pedal assist and throttle modes with a sleek, hidden internal battery. The combo of the ultra-low standover height frame and telescoping seatpost means almost everyone can ride, regardless of height or inseam.

Class III eBike with pedal assist up to 25 mph and throttle up to 20 mph.
Class III eBike Pedal Assist up to 25 mph, and up to 20 mph on throttle alone.
672 Wh Battery for excellent range.
672 Wh Battery Go farther with premium LG Cells.
A 500 Watt power rear hub motor.
500 Watt Rear Hub Motor Climb hills with 500 Watts of power.
90 Nm of Torque to climb hills.
90 Nm of Torque Massive Torque to climb hills.
40+ miles of Real-World Range. *Depending on several riding condition factors*
57+ miles of Range Ranges based on real-world tests*
Folding design Just 30 seconds to fold and unfold
20" x 3" tires Comfort and grip
Lithium-Ion battery Locks w/key for security
Integrated lights Powered by the eBike battery
Feature-packed Includes rear rack and fenders
Designed in Texas with USA-based support
Disc brakes Stopping power
Digital handlebar display Monitor speed, distance, charge level
  • Your Denago folding eBike is now ready to store or transport

    Folds for maximum portability

    Ideal for vanlife, college dorms, or RV travel. Fits into a compact space just 20" wide, 35" long, and 30" tall.

  • Folding electric bike near the beach with the UL Certified Logo overlaid.

    UL 2849 & UL 2271 Certified

    All of our bikes have been designed to meet UL standards for safety from day one. And now, every Folding 1 eBike manufactured on/after October 1, 2023, bears the UL2849 Certification for safety and comes equipped with UL2271 Certified batteries.

  • Photo of the rear hub motor on Denago Folding 1 eBike

    500 watt hub motor

    Powered by a lightweight 500 watt hub motor - plenty of torque for speed, while keeping things light enough to carry (complete bike 62 lbs)

  • man inserting key into lock on Denago Folding 1 eBike

    Locking hidden Li-Ion battery

    Our 672 Wh battery (48 volts, 14 Ah) is completely hidden inside the folding frame and locks with a key for security. We built it with quality LG cells and included a 3 Amp charger so you can recharge 50% faster than other brands. Batteries manufactured on/after October 1, 2023, are now UL2271 Certified.

  • Woman riding a Denago Folding 1 eBike at the beach

    One size fits almost everyone

    With an ultra-low standover height and telescoping seatpost, our Folding ebike is easy to share with friends or family.

  • Close up image of headlight on Denago Folding 1 eBike

    Built-in lights

    Built-in front and rear lights are powered by the eBike battery. Turn them on and off from the handlebar remote. The rear even lights up when you brake!

  • Digital display on Denago Folding 1 eBike

    Ride your way

    Up to 20 MPH on throttle and up to 25 MPH on pedal assist. See all your stats on the high-res digital display.

  • A woman and a man safely walking their electric bicycles past a water fountain.

    Throttle Safely

    No accidental bumps to the throttle throwing you off or launching without you. The throttle is designed to only function once you are seated and moving on the bike. Give yourself a kick or just about half a pedal stroke to enable the use of the throttle.

1 of 8

Collapsible content

See Full eBike Specifications

Top Speed:
25 MPH on pedal assist, 20 MPH on throttle (Class III eBike)

Motor:
Shengyi rear hub, 48V, 500W, IPX5 Water-Resistant rated

Battery:
672 Wh (48V, 14 Ah) with LG cells, IPX6 Water-Resistant rated

Sensors:
Cadence, Speed

Throttle:
Thumb throttle, left side

Display:
Denago high-resolution LCD with speed, trip distance, odometer, trip time, battery charge level, and walk mode functions; plus integrated front and rear light controls.

Charger:
Multi-voltage 110-240V, 3A Fast Charger with USA plug

UL Certification (as of manufacture date October 1, 2023):
UL 2849 certified, with a UL 2271 certified battery

Safety Data Sheets (SDS):
Denago safety data sheets are available upon request via email.

  • Wood rear rack on Denago Folding 1 eBike

    Packed with value

    Includes beautiful rear rack with wood top, fenders, and kickstand (rack is not for passenger use.) There's even a convenient bell.

  • 3

    3" wide tires

    3" wide tires are "just right" - wide enough for comfort, without knobs and extra weight slowing you down.

  • Detail of folding pedals on Denago Folding 1 eBike

    Folding pedals, frame, and handlebar

    We thought of everything! Saves every inch of space for maximum portability.

  • Oversized disc brake rotors

    Powerful disc brakes

    Folding 1 features mechanical disc brakes with oversized rotors for extra braking power; plus motor-interrupt switches for additional safety.

  • Microshift rear derailleur on Denago Folding 1 eBike

    7 speed shifter and rear derailleur

    Indexed "click" shifter and rear derailleur make changing gears easy. We included a wide gear range, so you're ready for uphill and down.

  • padded saddle and telescoping eBike seatpost

    Padded saddle and telescoping seatpost

    Ride in comfort with a wide, padded saddle. It sits atop a telescoping seatpost, providing a huge range of adjustment for rider height, while still collapsing down for portability.

1 of 6

Collapsible content

See Full Component Specifications

FRAME AND FORK

Frame:
6061-T6 Aluminum Alloy, Step-thru style, Folding

Fork:
Rigid

Kickstand:
included

DRIVETRAIN

Pedals:
Folding, 9/16” with reflectors

Crankset:
Aluminum alloy, 170mm, 48 tooth chainring, with chainguard

Bottom Bracket:
Sealed, square taper, English thread

Rear Derailleur:
7 speed

Freewheel:
Shimano CS-HG200-7, 7 speed, 12-32 teeth

Shifter:
7 speed with optical gear display

Chain:
KMC Z7, 3/32”

COCKPIT

Handlebar:
Zoom, aluminum alloy, 25.4mm diameter, 620mm long

Grips:
Black rubber, lock-on style

Stem:
Zoom aluminum alloy, 25.4mm clamp, 1 ⅛” threadless, adjustable height, folding

Headset:
1 ⅛”, sealed, threadless

Saddle:
Denago Comfort

Seatpost:
Zoom aluminum alloy, 34.9mm diameter, 347-552mm telescopic

Seatpost Clamp:
Zoom, quick release

BRAKES

Levers:
Jak mechanical disc brake with motor cut-off

Calipers:
Jak mechanical disc brake

Rotors:
180mm, 6 bolt type

WHEELS

Tires:
20x3", anti-puncture, safety reflective stripe, eBike-rated

Tubes:
20x3", schrader valve

Rims:
Aluminum Alloy, 36 holes, 20"

Hubs:
Front - Joytech nutted, 36 holes, disc brake
Rear - Shengyi, nutted 36 holes, disc brake

Spokes:
Front - 36 Black 13 gauge spokes
Rear - 36 Black 12 gauge spokes

Nipples:
Brass

DIMENSIONS WHEN FOLDED

Just 20" wide, 35" long, and 30" tall

WEIGHT AND PAYLOAD

Complete eBike with battery:
62 lbs

Maximum rider weight:
300 lbs

Maximum cargo capacity:
35 lbs on the included rear rack
20 lbs on the optional head-tube mounted front rack, if installed

WHAT'S IN THE BOX

Complete eBike
Keys
Lithium-Ion battery
3 Amp fast charger
Quickstart guide
Wheel reflectors
Assembly Tools (pedal wrench, multi-tool)

COVID-19 has created specific challenges in the bicycle industry, especially around the availability of the components required to manufacture eBikes. As a result, we reserve the right to make substitutions of equivalent components of equal or better value to ensure we can consistently deliver our eBikes in a timely fashion. Thanks for understanding!

Third Party Accessory Compatibility

Thule Yepp Maxi Child Seat
The Denago Folding 1 is not rated to carry passengers and will not be compatible with the Thule Yepp Maxi Child Seat.

  • Photo of Tam riding a Denago Folding 1 eBike at the beach

    Tam is 5'2" tall

    Shown riding Folding 1, One Size

  • photo of Johnathan riding a Denago Folding 1 eBike at the beach

    Johnathan is 6'1" tall

    Shown riding Folding 1, One Size

1 of 2

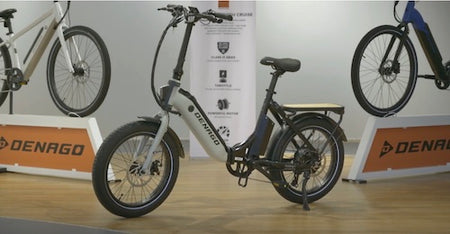

VIDEO REVIEWS OF THE FOLDING 1

Collapsible content

Full geometry chart and dimensions



Dimension Size
Top Tube Length (effective ): 26.3''/670mm
Wheelbase: 45.2"/1149mm
Head Tube Length: 6.9"/175mm
Standover height: 14.5"/370mm
Handlebar Height: 44-48" /1117-1219mm
Maximum Saddle Height: 43.5"/1105mm
Minimum Saddle Height: 31.8" /810mm

Our size and fit recommendations

The Folding 1 fits most riders 5'1" - 6'5".

Always wear a helmet, and ride only where safe, legal, and appropriate.

  • Denago Folding 1 eBike includes multitool

    Multitool

    Our multitool has all the hex keys and screwdrivers you'll need to complete assemby.

  • photo of Denago pedal and axle nut wrench

    Pedal and axle nut wrench

    Fits pedals and axle nuts, perfect for your home shop or to take on the road.

  • image of a woman holding a cell phone and laptop

    Expert guidance

    Instructions in the box. Free help via phone, live chat, or email.

1 of 3
  • UPS logo

    Free standard shipping on all eBikes

    All eBikes ship free from Denago.com.

  • Tam riding Denago Folding 1 eBike under the bluffs at the beach

    Fast delivery

    In-stock eBikes are delivered in just 1-5 business days, depending on your state.

  • Map of the United States of America pinned with locations of eBike shops near me.

    Need it today?

    Check partner bike shops near you who sell assembled, ready to ride Denago eBikes.

Documents for the Denago Fat Tire Step-thru eBike

DOWNLOADS

Owner's Manual, Quick Start Guide, Display Instructions, Geometry Chart

Please visit the Denago downloads page for PDF documents.
