750 W
motor
60 Miles
range
Integrated Lights
TURN SIGNALS
LG 48V 14Ah
battery
300 LBS
PAYLOAD CAPACITY
20 MPH
Top Speed
300+ Bike Shops
eBike service & test rides
Safety Certified
In accordance with UL2849 and UL2271

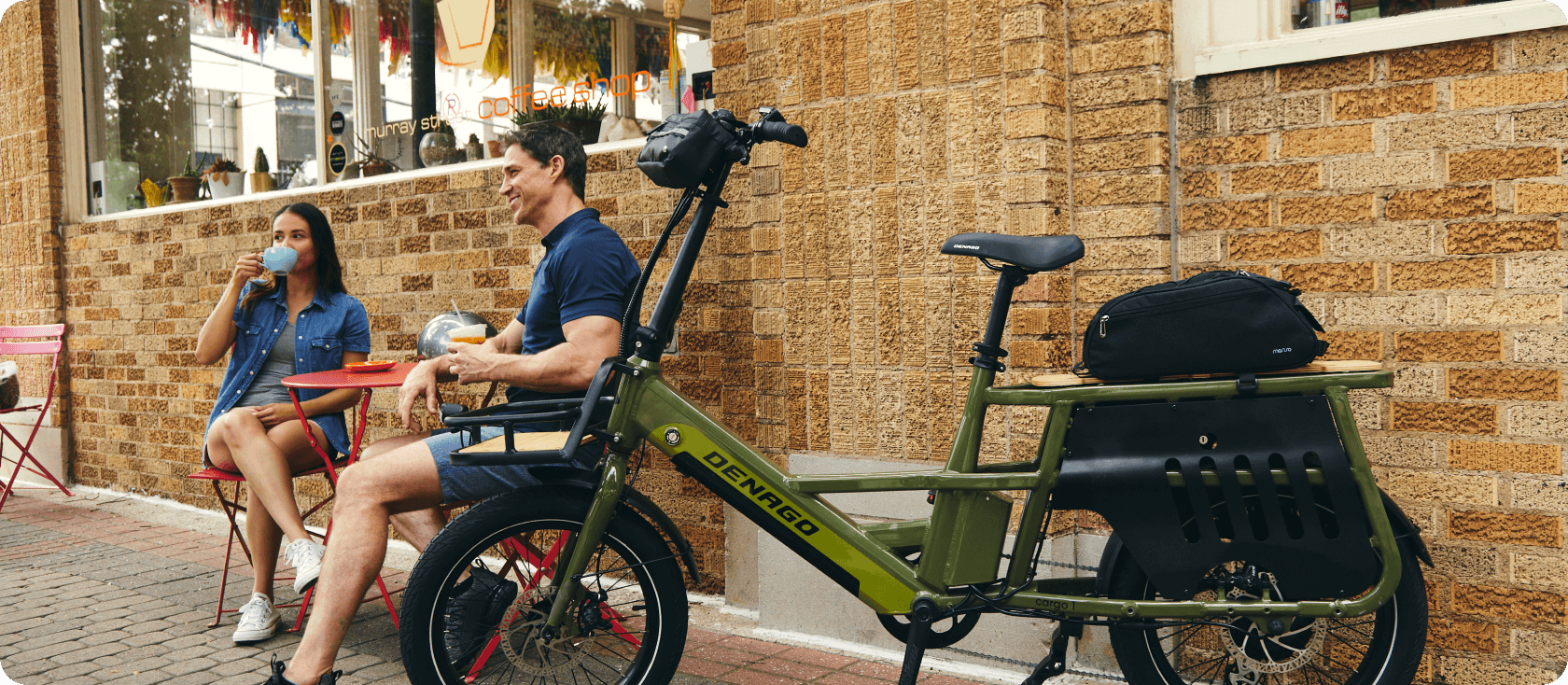

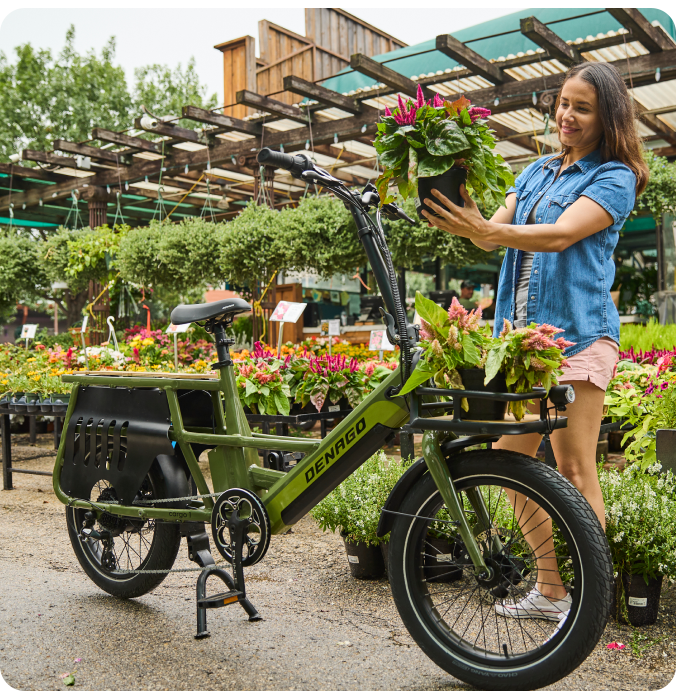

Denago Cargo 1 eBike
Dual Battery Cargo Utility eBike with Torque Sensor.
Our Compact Cargo 1 eBike hauls people, gear, or groceries to your home or office; tools and materials to your job site, and much more. Optional accessories, like our Kid Halo, allow you to carry a passenger and bring the family along.
Unlike a full-length "long tail" cargo bike, the Compact Cargo 1 is easy to handle, turn, and park, thanks to a shorter wheelbase for more agile handling - yet it still has a massive payload and capacity to haul it all.
TIME
REMAINING
Size
2 Year Warranty
Free Shipping
15-Day Returns
Geometry
| Frame Size | One Size |
| Height | 4'9''-5'9'' |
| Wheelbase | 52"/1320mm |
| Top Tube Length(effective) | N/A |
| Head Tube Length | 7.1"/180mm |
| Standover Height | 21.7"/550mm |
| Reach | 5.6" /142mm |
| Min Saddle Height | N/A |
| Max Saddle Height | N/A |
Technical Specifications
| Frame Size | One size |
| Battery | LG 48v x 14ah, 672Wh (10.4Ah is optional) |
| Charger | 54.6V/3A |
| Maximum Weight | 300lbs |
| Item Weight | 74lbs |
| Speed | 20 MPH on pedal assist |
| Range | 60 miles, 70miels dual |
| Motor | LG 750w Gear Drive hub |
| Wheel Size | 20 x 3.0" Cargo rated tires |
| Display | LCD display |
| Seat Tube Length | 18"/458mm |
| Bottom Bracket Drop | 1.2"/30mm |

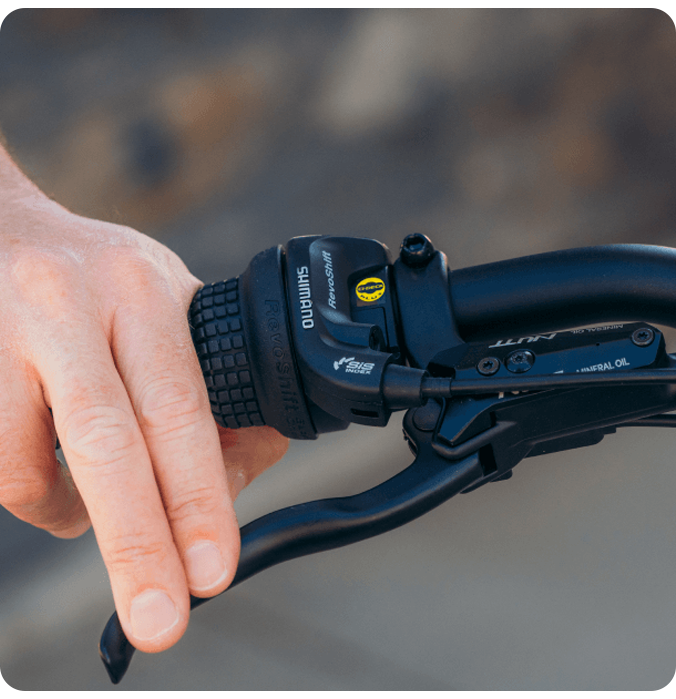

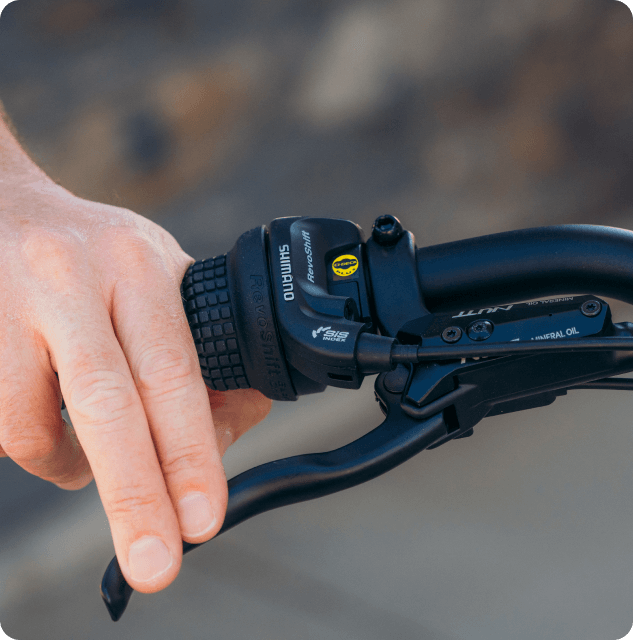

| Derailleur | Shimano-7 speed |
| Front Fork | None suspension |
| Frame | A6061 Aluminum Alloy |
| Throttle | Thumb throttle |
| Handlebar | 25.2"/640mm |
| Kickstand | included |
| Rims | 20", Al-alloy |
| Saddle | TTZ008 |
| Sensor | Torque Sensor |
| Head Tube Angle | 71° |
| Seat Tube Angle | 72° |
| Rear Chainstay Length | 23.6"/600mm |
| Front Wheel Center | 28.35"/720mm |
| Stack Height | 18.5"/471mm |
| Fork Length | 14.3"/363mm |
| Fork Offset | 1.6"/40mm |
| Fork rake | 1.6"/40mm |
| Stem length | N/A |
| Crank Length | 6.7"/170mm |
| Grips | 4.9"/125mm |
| Seatpost | 31.8*400L |
| Shift Lever | 1x7 |
| BRAKES | Full Jak Hydraulic disc brakes |
| Crankset | 48T Aluminum cover |
| Seat Clamp | φ40.1mm |
| Front Head Light | 6V LED |
| eBike class | 3 |
750 W
motor
60 Miles
range
Integrated Lights
TURN SIGNALS
LG 48V 14Ah
battery
300 LBS
PAYLOAD CAPACITY
20 MPH
Top Speed
300+ Bike Shops
eBike service & test rides
Safety Certified
In accordance with UL2849 and UL2271
See the Cargo 1 in Action!
Introducing: The Denago Cargo eBike
Denago eBikes
Throttle Only |
Pedal-Assist |
|||||
| 1PAS | 2PAS | 3PAS | 4PAS | 5PAS | ||
Range : |
33Miles |
60Miles |
54Miles |
48Miles |
41Miles |
36Miles |
Range : |
|||
Throttle |
33Miles |
||
Pedal |
60Miles |
1PAS | |
54Miles |
2PAS | ||
48Miles |
3PAS | ||
41Miles |
4PAS | ||
36Miles |
5PAS |
Discover Design Advantages
Seamless Loading, Stable Riding, Limitless Possibilities.
Integrated Safety Lights
Tailored Fit
LG 48V 14Ah Battery
Fit It All
Hydraulic Disc Brakes
20 x 3'' Cargo Rated Fat Tires
80 Nm Mid-drive Motor
Torque Sensor
Digital LCD Display
Fenders & Rear Rack w/ Side Skirts
Dual Leg Kickstand
How it fits
Geometry
Dimension
Size
Wheelbase
52"/1320mm
Top Tube Length
N/A
Handlebar
25.2"/640mm
Head Tube Length
7.1"/180mm
Standover Height
21.7"/550mm
Min Saddle Height
N/A
Max Saddle Height
N/A
Main features
More detials
Compare
Customer Reviews
We have bought two bikes and really enjoy them. We take them camping every time we go and it is so easy to get around the campgrounds with them. I highly recommend anyone who enjoys bike riding to purchase one of these.
Easy to ride. Powerful motor. Great looking and strongly built. Dual batteries give you the freedom to travel.
We bought this bike specifically to haul 100+ pounds of gear and children around town. This bike easily handles the bike trailer, 1-3 children and a bike plus a full diaper bag. Now going up driveways, steep sidewalks, driving across grass, and getting home quickly when the children are melting down is a breeze!!! And enjoyable! This bike is easy to use, feels like high quality, charges easily and looks sharp! I only have good things to say about this bike and reccomend it to all! The only thing I need to do is figure out the control settings to change settings but I haven’t needed to yet.
Most of the time, the packaging of a product can set the tone about the quality of the product. In the case of Denago’s Cargo 1 eBike it certainly is true. The bike was packed extremely well and survived the many miles like it was made next door. The few parts that needed assembly only took about 15 minutes. And Denago included some handy tools that handles everything.
Since the bike arrive, we have had snow on the ground. I have only been able to ride it for a 10 minutes at night with ice and snow. Lights work great. But I am ready for much more time on the bike.
Nothing but good things to say about these guys and the bike they make
