Denago Cruiser Model 1 Top-tube eBike

write a review

$1,099.00
$1,099.00 $1,099.00
Sale Sold out
Size
Color

Free shipping on all eBikes

FREE 1 year subscription to Flare Premium

Free assembly tools
Questions? Let us help

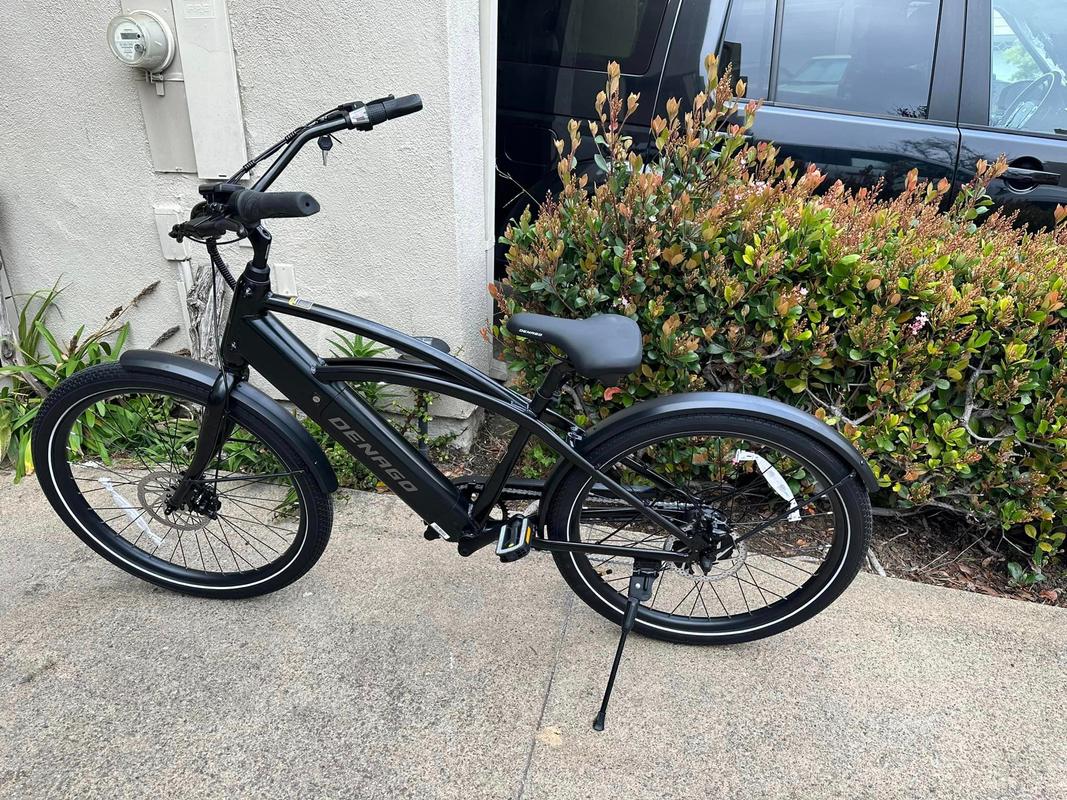

The perfect eBike for your next beach path adventure or pub crawl. Cruiser 1 offers classic, stealthy styling with a black frame and components. Upright riding position makes it fun for everyone to ride. Class II eBike with up to 20 MPH on pedal assist or throttle.
Rear hub motor 350 Watts of power
Disc brakes with oversized rotors
High-rise handlebar Comfortable, upright riding position
Cruiser saddle Wide, padded
Class II eBike 20 MPH pedal assist and throttle
Fenders Painted to match the frame
Designed in Texas USA-based support
Handlebar bell Friendly and safe
Kickstand easy to park
Lithium-ion battery with security key

eBike Features

  • 5 levels of pedal assist plus throttle, at your fingertips

    Pedal assist boosts you to 8, 12, 16, 18, or 20 MPH, or throttle without pedaling at up to 20 MPH.

  • Sleek, hidden battery - looks like a regular bike!

    The 36V, 11A (396Wh) Lithium-Ion battery is color-matched to the frame and built with premium LG cells. It locks to the frame for security with the included key.

  • Digital display

    See your speed and battery charge at a glance and control your pedal assist level on the easy-to-operate digital display.

  • Focused on comfort

    Riding is supposed to be fun! We used ergonomic grips, a high-rise swept handlebar, and padded saddle that allow you to ride without hunching over.

  • Twist throttle

    Familiar and easy for riders of all skill levels to operate. Up to 20 MPH without pedaling.

  • Shengyi 350 Watt hub motor

    36V hub motor provides just the right amount of boost to suit your terrain and riding conditions.

1 6

See Full eBike Specifications

Top Speed:
20 MPH on pedal assist, 20 MPH on throttle (Class II eBike)

Motor:
Shengyi 350W, 36V rear hub motor

Battery:
36V, 11A (396Wh) Lithium-ion, built with LG 18650 cells

Sensors:
Cadence, Speed

Throttle:
Twist throttle, left side

Display:
Denago digital display with speed, trip distance, and odometer functions; displays battery charge level and allows selection of pedal assist level

Charger:
Multi-voltage 110-240V, 3A Fast Charger with USA plug

Safety Data Sheets (SDS):
Denago safety data sheets are available upon request via email.

Component Highlights

  • Classic style

    Beautiful frame features clean lines that evoke the classic cruisers we grew up with. Traditional top tube frame design.

  • Includes fenders

    Each Cruiser 1 eBike includes stylish fenders that match the frame and fork color.

  • Powerful disc brakes

    Mechanical disc brakes with oversized rotors and motor cut-off switches for safety.

  • High-rise cruiser handlebar

    High-rise, backswept handlebar puts you in an upright, comfortable riding position so you can look around and enjoy the scenery.

  • Twist shifter with optical gear display

    Microshift twist shifter is simple to operate, even for beginners. The optical display shows your gear at a glance.

  • Sturdy kickstand

    Makes parking a snap at home, the beach, or your favorite coffee shop.

  • Built-in chainguard

    Keeps grit and grime off your pants leg.

  • Mounting points for front and rear racks

    Easily add an optional front or rear rack to your Cruiser with heavy-duty mounting points built in to the frame.

1 8

See Full Component Specifications

FRAME AND FORK

Frame:
6061-T6 Aluminum Alloy, Top tube style

Fork:
Rigid, 6061-T6 Aluminum Alloy

Kickstand:
included

DRIVETRAIN

Pedals:
Platform, non-slip surface, 9/16” with reflectors

Crankset:
170mm, 42 teeth

Bottom Bracket:
Sealed, square taper, English thread

Rear Derailleur:
Microshift RD-M21S

Freewheel:
Shimano Tourney, 7 speed, 14-28 teeth

Shifter:
Microshift 7 speed twist shifter with optical gear display

Chain:
KMC Z-Series, 3/32”

COCKPIT

Handlebar:
High-rise chrome plated steel, 690mm width, 25.4mm diameter

Handlebar Bell:
included

Grips:
Black rubber, lock-on style

Stem:
90mm extension, 25.4mm clamp, height adjustable

Headset:
1 ⅛”, sealed, threadless

Saddle:
Black, padded with memory foam

Seatpost:
Zoom aluminum alloy, 30.4mm diameter, 400mm length

Seatpost Clamp:
Zoom, quick release

BRAKES

Levers:
Jak mechanical disc brake with motor cut-off

Calipers:
Jak mechanical disc brake

Rotors:
180mm, 6 bolt type

WHEELS

Tires:
27.5" x 2.3" cruiser tires, eBike rated, puncture resistant with safety reflective strip

Tubes:
27.5" x 2.3", schrader valve

Rims:
Aluminum Alloy, 36 holes, 27.5"

Hubs:
Front - nutted, 36 holes, disc brake
Rear - Shengyi, nutted 36 holes, disc brake

Spokes:
Front - 36, 13 gauge spokes
Rear - 36, 12 gauge spokes

Nipples:
Brass

WEIGHT AND PAYLOAD

Complete eBike with battery:
56 lbs

Maximum rider weight:
300 lbs

Maximum cargo capacity:
55 lbs on the optional seatstay-mounted rear rack
20 lbs on the optional headtube-mounted front rack

WHAT'S IN THE BOX

Complete eBike
Keys
Lithium-Ion battery
3 Amp fast charger
Quickstart guide
Wheel reflectors
Assembly Tools (pedal wrench, multi-tool)

COVID-19 has created specific challenges in the bicycle industry, especially around the availability of the components required to manufacture eBikes. As a result, we reserve the right to make substitutions of equivalent components of equal or better value to ensure we can consistently deliver our eBikes in a timely fashion. Thanks for understanding!

Size and fit

  • Tam is 5'2" tall

    Shown riding Cruiser Model 1 Step-thru, one size

  • Asma is 5'3" tall

    Shown riding Cruiser Model 1 Step-thru, one size

  • Lisa is 5'6" tall

    Shown riding Cruiser Model 1 Step-thru, one size

  • Johnathan is 6'1" tall

    Shown riding Cruiser Model 1 Step-thru, one size

1 4

Our size and fit recommendations

One size fits most adults 5'4" - 6'3"

Assembly tools included

  • Multitool

    Our multitool has all the hex keys and screwdrivers you'll need to complete assemby.

  • photo of Denago pedal and axle nut wrench

    Pedal and axle nut wrench

    Fits pedals and axle nuts, perfect for your home shop or to take on the road.

  • image of a woman holding a cell phone and laptop

    Expert guidance

    Instructions in the box. Free help via phone, live chat, or email.

1 3

Shipping and delivery

  • UPS logo

    Free standard shipping on all eBikes

    All eBikes ship free from Denago.com.

  • Fast delivery

    In-stock eBikes are delivered in just 1-5 business days, depending on your state.

  • Need it today?

    Check partner bike shops near you who sell assembled, ready to ride Denago eBikes. Find a dealer near you.

Documents for the Denago Commute Model 1 Top tube eBike

DOWNLOADS

Geometry Chart

Denago Cruiser 1 Top Tube eBike Geometry
Last updated: Feb 10, 2023. (JPG)

Quick Start Guide

Denago Cruiser 1 eBike Quick Start Guide
Last updated: Feb 10, 2023 (PDF)

Owner's Manual

Denago Cruiser 1 eBike Owner's Manual
Last updated: Feb 10, 2023 (PDF)

Display Instructions

Denago Cruiser eBike KM3209 Display Instructions
Last updated Feb 10, 2023 (PDF)
