750 W

motor

78 Miles

range

Torque Sensor

Sensor

LG 48V 20Ah

battery

264 LBS

PAYLOAD CAPACITY

28 MPH

Top Speed

300+ Bike Shops

eBike service & test rides

Safety Certified

In accordance with UL 2271

Denago eBikes

Denago Fat Tire 2 Step-thru eBike

Name: Denago Fat Tire 2 Step-thru eBike
Brand: Denago eBikes
SKU: DE-E12A-CHAR-S/M
Price: 1999.0 USD
Availability: InStock
Rating: 5.0 (4 reviews)

The Denago Fat Tire Model 2 eBike is one of our star products. Equipped with advanced torque sensor, a 750W rear hub motor, and a 960Wh battery, it can reach speeds of up to 28MPH. The torque sensor provides intelligent assistance based on your pedaling effort, ensuring an efficient riding experience. Its powerful 750W rear hub motor offers strong power to tackle various terrains with ease. With the high-capacity 960Wh battery, you'll have enough range without the need for frequent charging. Whether for city commuting or countryside adventures, the Denago Fat Tire Model 2 meets all your needs, providing an exhilarating riding experience.

Learn more

The Denago Fat Tire Model 2 eBike is one of our star products. Equipped with advanced torque sensor, a 750W rear hub motor, and a 960Wh battery, it can reach speeds of up to 28MPH. The torque sensor provides intelligent assistance based on your pedaling effort, ensuring an efficient riding experience. Its powerful 750W rear hub motor offers strong power to tackle various terrains with ease. With the high-capacity 960Wh battery, you'll have enough range without the need for frequent charging. Whether for city commuting or countryside adventures, the Denago Fat Tire Model 2 meets all your needs, providing an exhilarating riding experience.

Learn more

$1,999.00

TIME
REMAINING

2023-12-25 00:00:00

Color : Black with Gray

Size : S/M: Fits 4'11''-5'10''

Frame style:

Variant

2 Year Warranty

Free Shipping

15-Day Returns

Product Locator by Locally

Geometry

Frame Size	One Size
Height	4'11''-6'1''
Wheelbase	46.5''
Top Tube Length	24.8''
Head Tube Length	6.3''
Reach	16.54''
Min Saddle Height	38.98"
Standover Height	27.17''
Max Saddle Height	48.03"

Technical Specifications

Battery	960 Wh Battery
Charger	54.6V/3A
Speed	28 MPH on pedal assist, 20 MPH on throttle
Range	78+ miles of Range
Motor	750 Watt Rear Hub Motor
Wheel Size	Kenda 26 x 4”, K-Shield puncture protection with safety reflective stripe
Display	Kimmitt Color Screen displays power, speed, gear, single mileage, total mileage, front/rear switch, power push, error code indication and more.
Brakes	Hydraulic disc brakes front+rear
Derailleur	Shimano 8 speed
Frame	A6061 Aluminum Alloy, Step-thru style
Throttle	Thumb throttle
Handlebar	710mm/27.95''
Kickstand	included
Sensor	Torque Sensor
PAS	5 PAS
Range	78 miles
Maximum Weight	264lbs
Weight	84lbs
Seat Tube Length	466mm/18.35''
Bottom Bracket Drop	60mm/2.36''
Head Tube Angle	70°
Seat Tube Angle	73°
Rear Chainstay Length	490mm/19.29''
Front Wheel Center	697mm/27.44''
Stack Height	490mm/19.29''
Fork Length	525mm/20.67''
Fork Offset	43mm/1.69''
Fork rake	40mm/1.57''
Chain stay length	490mm/19.29''
Stem length	75mm/2.95''
Crank Length	170mm/6.69''
Grips	130mm/5.12''
Seatpost	30.4x350L
Saddle	6886C-B
SHIFT LEVER	1x8
Crankset	48T Aluminum cover
Rim	26, Al-alloy
Seat Clamp	φ35mm
Front Head Light	6V LED

750 W

motor

78 Miles

range

Torque Sensor

Sensor

LG 48V 20Ah

battery

264 LBS

PAYLOAD CAPACITY

28 MPH

Top Speed

300+ Bike Shops

eBike service & test rides

Safety Certified

In accordance with UL 2271

Third Party Reviews

Stay on course

A smart e-bike engineered to shift perspectives.

Torque Sensor

The torque sensor of the Fat Tire 2 ebike is capable of recognizing your natural pedaling force and amplifying it accordingly, thereby saving battery power and extending the riding distance as you navigate through the streets.

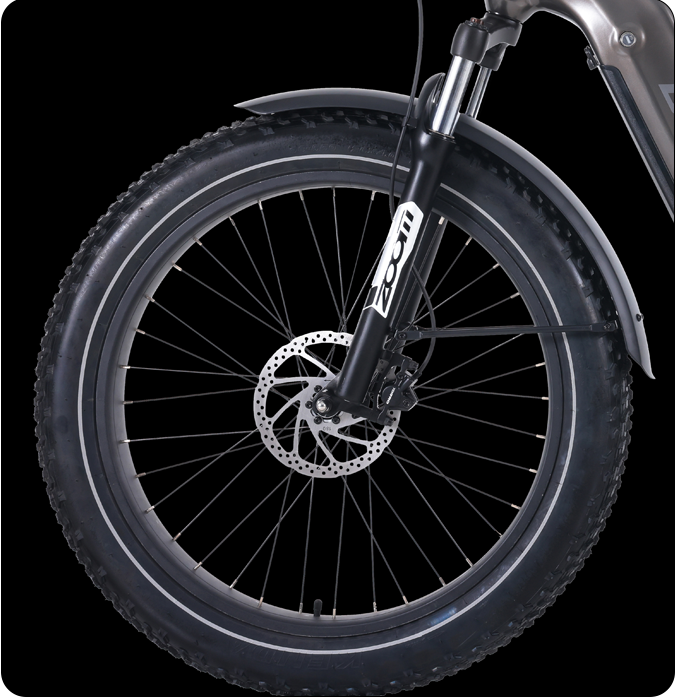

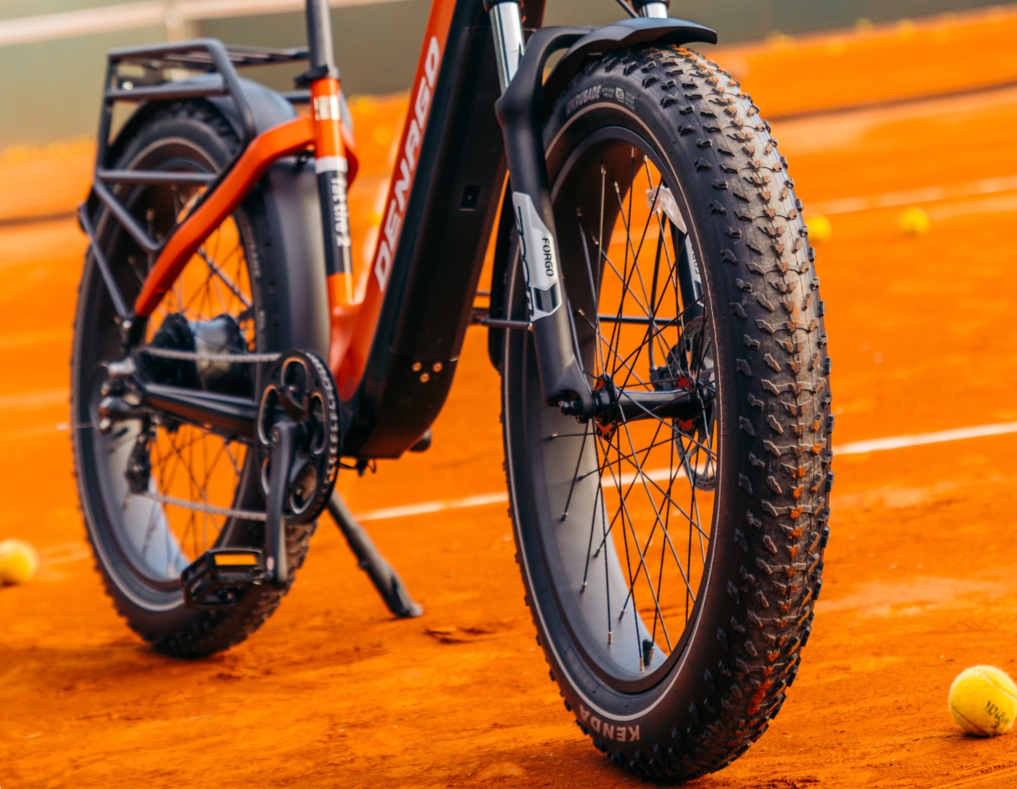

26 x 4" Kenda fat tire

4-inch puncture-resistant fat tires provide extra protection on the road, ensuring peace of mind, while reflective sidewalls enhance visibility in low-light conditions. Add more fun and adventure to your next ride.

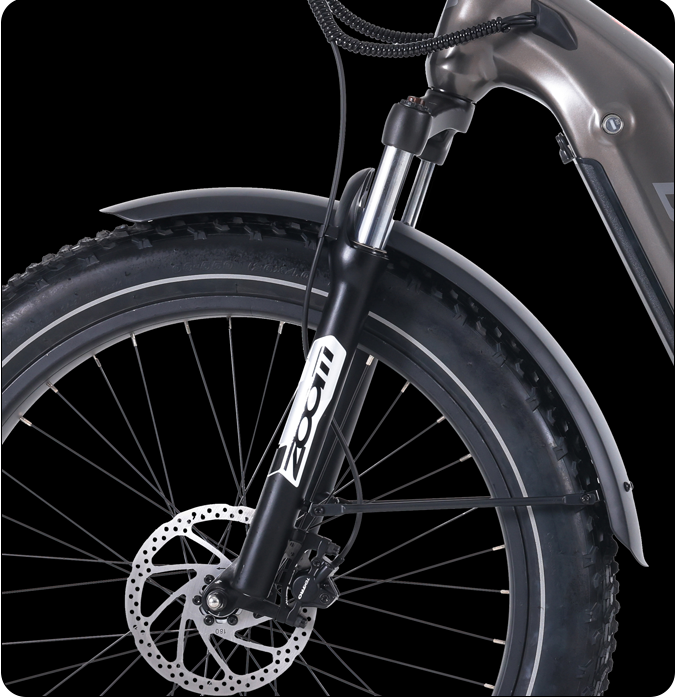

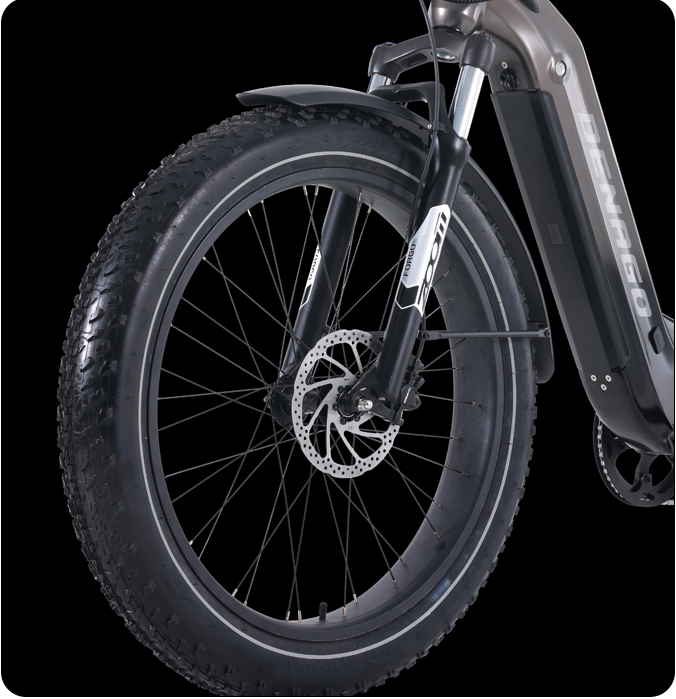

Front Suspension fork

The aluminum alloy suspension fork of the Fat Tire 2 provides comfort on off-road trails, absorbing every bump on the road and adjusting to your optimal feeling !

Hydraulic disc brakes front+rear

The hydraulic disc brake system on the Fat Tire 2 provides powerful braking performance and stability, delivering excellent braking even on wet or muddy surfaces.

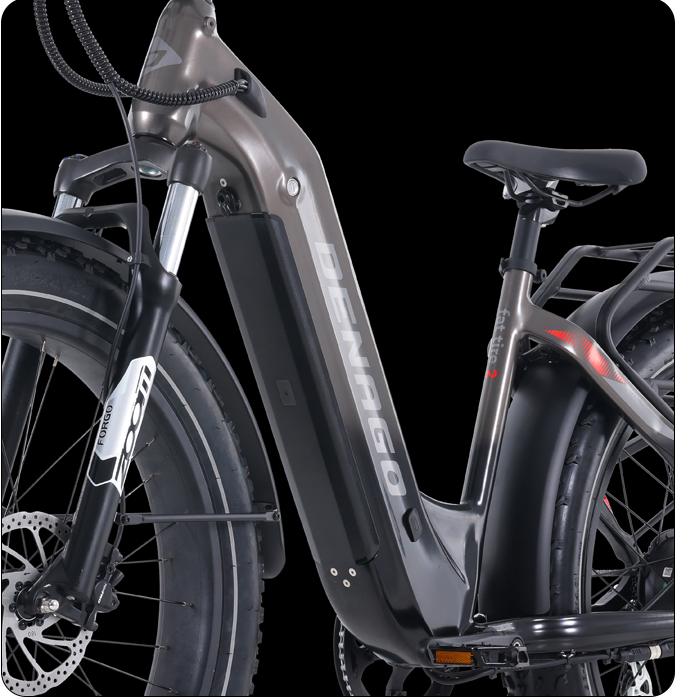

750W Rear Hub Motor & LG 960Wh Battery

The powerful 750W brushless rear hub motor paired with the fast-charging 960Wh LG battery means there will be ample power available whether you're driving on the streets or off-road.

Stay on course

A smart e-bike engineered to shift perspectives.

Torque Sensor

The torque sensor of the Fat Tire 2 ebike is capable of recognizing your natural pedaling force and amplifying it accordingly, thereby saving battery power and extending the riding distance as you navigate through the streets.

Front Suspension fork

The aluminum alloy suspension fork of the Fat Tire 2 provides comfort on off-road trails, absorbing every bump on the road and adjusting to your optimal feeling !

26 x 4" Kenda fat tire

4-inch puncture-resistant fat tires provide extra protection on the road, ensuring peace of mind, while reflective sidewalls enhance visibility in low-light conditions. Add more fun and adventure to your next ride.

Hydraulic disc brakes front+rear

The hydraulic disc brake system on the Fat Tire 2 provides powerful braking performance and stability, delivering excellent braking even on wet or muddy surfaces.

750W Rear Hub Motor & LG 960Wh Battery

The powerful 750W brushless rear hub motor paired with the fast-charging 960Wh LG battery means there will be ample power available whether you're driving on the streets or off-road.

	Throttle Only	Pedal-Assist
		1PAS	2PAS	3PAS	4PAS	5PAS
Range :	34Miles	78Miles	60Miles	50Miles	44Miles	31Miles

	Range :
Throttle Only	34Miles
Pedal Assist	78Miles	1PAS
	60Miles	2PAS
	50Miles	3PAS
	44Miles	4PAS
	31Miles	5PAS

All tests were performed with flat ground,with the tires at 60PSI. There were
few starts and stops and payload was about 176Ibs.

All tests were performed with flat ground,with the tires at 60PSI. There were few starts and stops and payload was about 176Ibs.

Discover Design Advantages

An e-bike that conquers all terrain and is never field controlled. Come and feel its charm.

All-terrain

Safety

Comfort

Handlebar Width:710mm

Hydraulic disc brakes front+rear

Torque Sensor

Shimano 8-speed, Smooth shifting

Kimmitt Color Screen

Front Suspension

Kenda 4''fat tire

Large Capacity Battery, Unlimited Power

Adjustable seat

750W rear hub motor, Galloping Freedom

How it fits

Geometry

Dimension

S/M

Wheelbase

46.47 "/1180mm

Top Tube Length

24.02"/610mm

Standover Height

28.94''/735mm

Head Tube Length

6.3"/160mm

Reach

16.54"/420mm

Min Saddle Height

38.98"/990mm

Max Saddle Height

48.03"/1220mm

Main features

More details

Compare

Ideal Use

Speed

Range

Motor

Battery

Pedal Assist

Sensor

Wheel Size

Brake

Frame

Frame Style

Weight Limit

Fat Tire 2

4 inch Fat tire

All-Terrain

28 MPH

Up to 78 miles

Bafang 900w (peak), 750w (sustained)

48V,20Ah (960 Wh), LG Cell, UL 2271 Compliant

5 levels

Torque Sensor

Kenda 26 x 4.0" fat tire

Hydraulic Disc Brakes Front+Rear

A6061 Aluminum Alloy

Step Thru

264 lbs

Hunting 1

Perfect hunting adventure

All-Terrain, Hunting

28 MPH

77 miles(120miles dual battery)

Bafang mid-drive 1000w (peak), 750w (sustained), 48v 160 NM torque

48V 20Ah (960Wh), LG Cell, UL 2271 Compliant

5 levels

Torque Sensor

Kenda 26 x 4.5" fat tire

Radius Hydraulic Disc w/ 203mm Rotors

6061 Aluminum Alloy

Step Thru

290 lbs

Commute 1 ST

Bicycling's best commuter

City

28 MPH

Up to 60 miles

750w (peak), 500w (sustained), 48v 50 NM torque

48V, 14Ah (672Wh), LG Cell, UL 2849 Compliant

5 levels

Speed Sensor

Kenda 27.5 x 2.6"

Hydraulic Disc Brakes Front+Rear

6061 Aluminum Alloy

Step Thru

264 lbs
