eBike Features
Collapsible content
See Full eBike Specifications
Top Speed:
28 MPH on pedal assist, 20 MPH on throttle (Class III eBike)
Motor:
Bafang H550 rear hub, 48V, 750W, IPX5 Water-Resistant rated
Battery:
921.6 Wh battery, LG 21700 cells, IPX6 Water-Resistant rated
Sensors:
Torque, Speed
Throttle:
Thumb throttle, left side
Display:

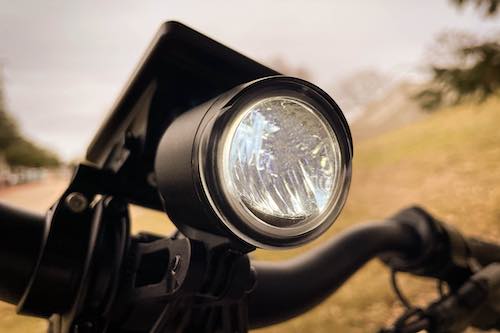

Denago color high-resolution LCD with speed, motor power, trip distance, odometer, trip time, battery charge level, calories, and walk mode functions plus integrated front and rear light controls.
Charger:
Multi-voltage 110-240V, 3A Fast Charger with USA plug

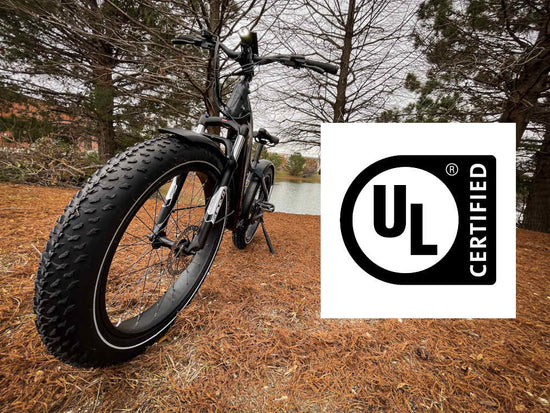

UL Certification (as of manufacture date October 1, 2023):
UL 2849 certified, with a UL 2271 certified battery
Safety Data Sheets (SDS):
Denago safety data sheets are available upon request via email.
Watch: Ebike Escape's video review
Component Highlights
Collapsible content
See Full Component Specifications
FRAME AND FORK
Frame:
6061-T6 Aluminum Alloy, Top Tube style

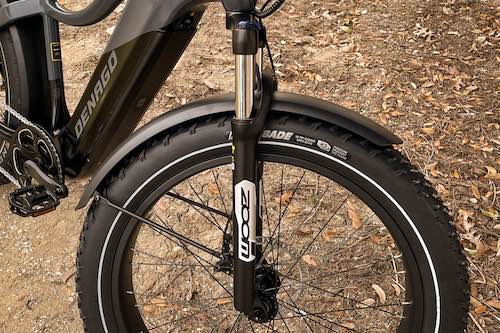

Fork:
Zoom Suspension model 879, 80mm travel with hydraulic lockout

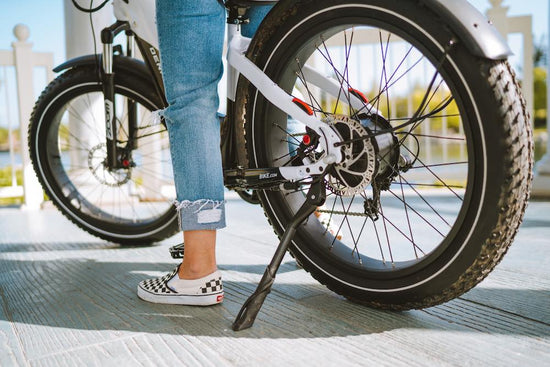

Kickstand:
included
DRIVETRAIN
Pedals:
Platform, aluminum alloy, 9/16” with reflectors
Crankset:
Aluminum alloy, 170mm, 48 tooth chainring
Bottom Bracket:
Sealed, square taper, with torque sensor, English thread
Rear Derailleur:
Shimano Tourney, 7 speed
Freewheel:
Shimano Tourney, 7 speed, 14-28 teeth
Shifter:
Shimano Tourney, 7 speed
Chain:
KMC Z-Series, 3/32”
COCKPIT
Handlebar:
Zoom aluminum alloy, 31.8mm diameter, 700mm long
Grips:
Black rubber, lock-on style
Stem:
Zoom aluminum alloy, 31.8mm clamp, 1 ⅛” threadless
Headset:
1 ⅛”, sealed, threadless
Saddle:
Comfort with lift handle
Seatpost:
Zoom aluminum alloy, 31.6mm diameter, 300mm length
Seatpost Clamp:
Zoom, quick release
BRAKES
Levers:
Hydraulic disc brake with motor cut-off
Calipers:
Hydraulic disc brake
Rotors:
180mm, 6 bolt type
WHEELS
Tires:
Kenda 26 x 4”, K-Shield puncture protection with safety reflective stripe
Tubes:
Kenda 26 x 4”, schrader valve
Rims:
Aluminum Alloy, 36 holes, 26"
Hubs:
Front - nutted, 36 holes, disc brake
Rear - Bafang, nutted 36 holes, disc brake
Spokes:
Front - 36 Black 13 gauge spokes
Rear - 36 Black 12 gauge spokes
Nipples:
Brass
WEIGHT AND PAYLOAD
Complete eBike with battery:
79 lbs
Maximum rider weight:
300 lbs
Maximum cargo capacity:
55 lbs on the optional seatstay-mounted rear rack
20 lbs on the optional headtube-mounted front rack
WHAT'S IN THE BOX
Complete eBike
Keys
Lithium-Ion battery
3 Amp fast charger
Quickstart guide
Wheel reflectors
Assembly Tools (pedal wrench, multi-tool)
COVID-19 has created specific challenges in the bicycle industry, especially around the availability of the components required to manufacture eBikes. As a result, we reserve the right to make substitutions of equivalent components of equal or better value to ensure we can consistently deliver our eBikes in a timely fashion. Thanks for understanding!
Watch: Electric Bike Report's review
Size and fit
Collapsible content
Full geometry chart and dimensions
Dimension | Size S/M | Size L/XL |
---|---|---|
Top Tube Length: | 24.8"/630mm | 4.8"/630mm |
Reach: | 16.5"/419mm | 16.5"/419mm |
Wheelbase: | 46.5 "/1181mm | 46.5"/1181mm |
Head Tube Length: | 6.3"/160mm | 6.3"/160mm |
Minimum Saddle Height: | 32"/819mm | 33"/844mm |
Maximum Saddle Height: | 38"/971mm | 39.5"/1003mm |
Our size and fit recommendations
Denago recommends:
One size fits most adults 5'6" - 6'1"
Watch: Electrified Reviews' video review
Assembly tools included
Shipping and delivery
-
Free standard shipping on all eBikes
All eBikes ship free from Denago.com.
-
Fast delivery
In-stock eBikes are delivered in just 1-5 business days, depending on your state.
-
Need it today?
Check partner bike shops near you who sell assembled, ready to ride Denago eBikes.
Documents for the Denago Fat Tire Top Tube eBike
DOWNLOADS
Owner's Manual, Quick Start Guide, Display Instructions, Geometry Chart
Please visit the Denago downloads page for PDF documents.
