Bafang 750 W
motor
84 Miles
range
Torque Sensor
Sensor
LG 48V 20Ah
battery
300 LBS
PAYLOAD CAPACITY
28 MPH
Top Speed
300+ Bike Shops
eBike service & test rides
Safety Certified
In accordance with UL2849 and UL2271
Denago Fat Tire Step-thru eBike
20Ah 80 Miles Fat Tire eBike with Torque Sensor.
Our Denago Fat Tire eBike is one of the best values on the market. We've added an upgraded torque sensor for the most natural pedaling feel on off-road surfaces, and a massive 921.6 Wh battery for all-day rides. Packed with included accessories like a kickstand, fenders, plus integrated front and rear lights.
The Fat Tire eBike uses a premium Bafang rear hub motor paired with upgraded LG 21700 battery cells, packing more power into a compact space. The step-thru frame offers the lowest possible standover height, so it's easy to start and stop without swinging a leg over the saddle.
TIME
REMAINING
Size
2 Year Warranty
Free Shipping
15-Day Returns
Geometry
| Frame Size | S/M | L/XL |
| Height | 4'9''-6'1'' | 4'11''-6'1'' |
| Wheelbase | 45.12 "/1146mm | 46.5''/1181mm |
| Top Tube Length | 23.43"/595mm |
24.8''/630mm |
| Head Tube Length | 6.3"/160mm | 6.3"/160mm |
| Reach | 15.16"/385mm | 16.54''/420mm |
| Min Saddle Height | 32"/819mm | 32"/819mm |
| Max Saddle Height | 38"/971mm | 38"/971mm |
Technical Specifications
| Frame Size | S/M | L/XL |
| Battery | 960 Wh Battery | 960 Wh Battery |
| Charger | 54.6V3A | 54.6V3A |
| Speed | 28 MPH on pedal assist, 20 MPH on throttle (Class III eBike) | 28 MPH on pedal assist, 20 MPH on throttle (Class III eBike) |
| Range | 84+ miles of Range | 84+ miles of Range |

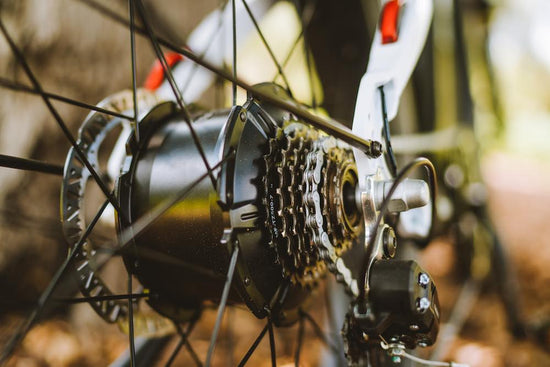

| Motor | 750 Watt Bafang Rear Hub Motor | 750 Watt Bafang Rear Hub Motor |
| Wheel Size | Kenda 26 x 4”, K-Shield puncture protection with safety reflective stripe | Kenda 26 x 4”, K-Shield puncture protection with safety reflective stripe |
| Display | Denago color high-resolution LCD with speed, motor power, trip distance, odometer, trip time, battery charge level, calories, and walk mode functions plus integrated front and rear light controls | Denago color high-resolution LCD with speed, motor power, trip distance, odometer, trip time, battery charge level, calories, and walk mode functions plus integrated front and rear light controls |
| Brakes | Hydraulic disc brakes | Hydraulic disc brakes |
| Seat Tube Length | 445mm | 466mm |
| Bottom Bracket Drop | 60mm | 60mm |
| Derailleur | Shimano Tourney, 7 speed | Shimano Tourney, 7 speed |
| Front Fork | Zoom Suspension model 879, 80mm travel with hydraulic lockout | Zoom Suspension model 879, 80mm travel with hydraulic lockout |
| Frame | 6061-T6 Aluminum Alloy, Step-thru style | 6061-T6 Aluminum Alloy, Step-thru style |
| Throttle | Thumb throttle, left side | Thumb throttle, left side |
| Handlebar | 710mm | 710mm |
| Kickstand | included | included |
| Rims | 26, Al-alloy | 26, Al-alloy |
| Saddle | 6886C-B | 6886C-B |
| Sensor | Torque | Torque |
| Head Tube Angle | 70° | 70° |
| Seat Tube Angle | 73° | 73° |
| Rear Chainstay Length | 490mm | 490mm |
| Front Wheel Center | 663mm | 697mm |
| Stack Height | 690mm | 690mm |
| Fork Length | 525mm | 525mm |
| Fork Offset | 43mm | 43mm |
| Stand over Height | 495mm | 485mm |
| Fork rake | 40mm | 40mm |
| Chain stay length | 490mm | 490mm |
| Stem length | 60mm | 75mm |
| Crank Length | 170mm | 170mm |
| Grips | 130mm | 130mm |
| Seatpost | 30.4x350L | 30.4x350L |
| Shift Lever | 1x7 | 1x7 |
| Crankset | 48T Aluminum cover | 48T Aluminum cover |
| Weight | 79 lbs | 79 lbs |
| Seat Clamp | φ35mm | φ35mm |

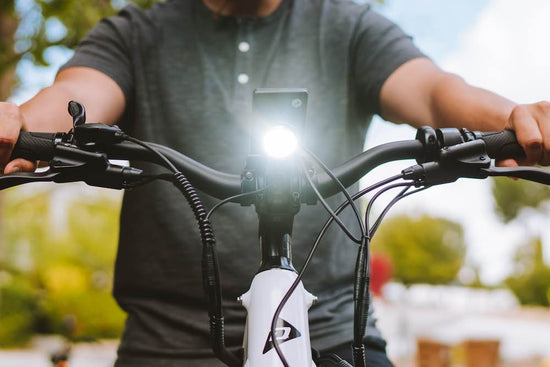

| Front Head Light | 6V LED | 6V LED |
Free Accessories
Bafang 750 W
motor
84 Miles
range
Torque Sensor
Sensor
LG 48V 20Ah
battery
300 LBS
PAYLOAD CAPACITY
28 MPH
Top Speed
300+ Bike Shops
eBike service & test rides
Safety Certified
In accordance with UL2849 and UL2271
See the Fat Tire Step Thru in Action!
🏕️ Conquer Sand Dunes with the Denago Fat Tire Step-Thru eBike! 🚴♂️
Denago eBikes
Riding Denago Fat Tire eBikes in Snow Season with Fat Tire eBike and Hunting eBikes
Denago eBikes
Denago Fat Tire E-Bike // A 28 MPH All-Around Solid Ride
Soldier Knows Best
Denago Fat Tire e-bike review: 28 MPH adventure e-bike
Electrek.co
Denago Fat Tire Step Thru Review | Fat Tire Electric Bike
Electric Bike Report
Denago Fat Tire Step Through Ebike Review: Torque Sensor Fat Tire Ebike That Checks All Of The Boxes
Ebike Escape
Best Affordable Fat Tire Ebike On The Market? | Denago Fat Tire Step-Thru Ebike
Electrified Reviews
Denago Fat Tire Step-Thru Ebike LIVE Unboxing and Ask Me Anything!
Ebike Escape

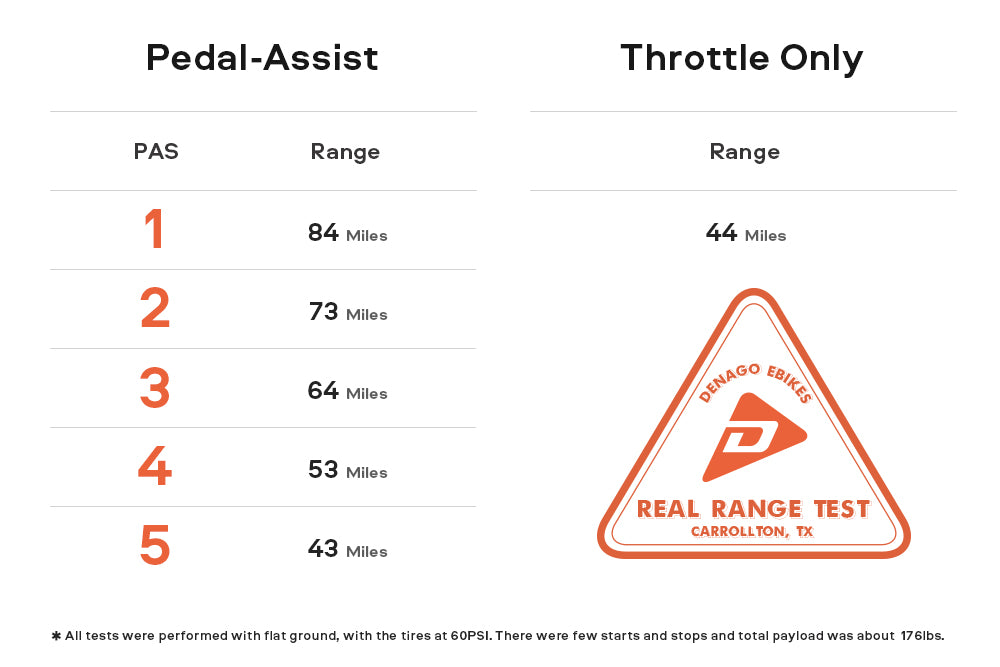

Throttle Only |
Pedal-Assist |
|||||
| 1PAS | 2PAS | 3PAS | 4PAS | 5PAS | ||
Range : |
44Miles |
84Miles |
74Miles |
64Miles |
53Miles |
43Miles |
Range : |
|||
Throttle |
44Miles |
||
Pedal |
84Miles |
1PAS | |
74Miles |
2PAS | ||
64Miles |
3PAS | ||
53Miles |
4PAS | ||
43Miles |
5PAS |
Discover Design Advantages
An e-bike that conquers all terrain and is never field controlled. Come and feel its charm.
Class III eBike with pedal assist and throttle
Beautiful fenders
Adjustable pedal assistance
One of the best-value torque sensort
Throttle-on-Demand
4'' wide Kenda tire
Hydraulic disc brakes for stopping power
Easy-shifting Shimano drivetrain
Padded saddle with lift handle
Convenient kickstand
How it fits
Michelle is 5'4" tall
Shown riding Fat Model 1 Step-thru, size S/M
Dave is 6'0" tall
Shown riding Fat Model 1 Step-thru, size L/XL
Antonio is 5'9" tall
Shown riding Fat Model 1 Step-thru, size S/M
Michelle is 5'4" tall
Shown riding Fat Model 1 Step-thru, size S/M
Dave is 6'0" tall
Shown riding Fat Model 1 Step-thru, size L/XL
Antonio is 5'9" tall
Shown riding Fat Model 1 Step-thru, size S/M
Geometry
Dimension
Size S/M
Size L/XL
Wheelbase
45.12 "/1146mm
46.5''/1181mm
Top Tube Length
23.43"/595mm
24.8''/630mm
Head Tube Length
6.3"/160mm
6.3"/160mm
Reach
15.16"/385mm
16.54''/420mm
Min Saddle Height
32"/819mm
33"/844mm
Max Saddle Height
38"/971mm
39.5"/1003mm
Main features
More details
Compare
Customer Reviews
I purchased a fat tire denago e bike about a month ago. I have a hard time walking because of a injury. I have been able to ride this bike with no problems. I now have 200 miles on it on all terrains.
Battery lasts like it says in the specs. Bike has plenty of power and with one bad leg it allows me to get places that I can't walk. I will be taking it hunting to see if I can get back out there. I know it will get me where I want to go. Thank you for the awesome bike.
One bad thing is I am still waiting for the racks. I hope they come soon.
I’ve had it for a little over a month and put on 61 miles so far. It is so fun to ride in the neighborhood or even when camping on trail riding as well. Makes riding my kids to school and back a blast. It was easy to assemble, packed wonderfully and definitely fast enough for what I like. Good quality components Shimano shifter derialer Befang 750 watt motor and Zoom suspension fork makes riding more comfortable. It’s impressive.
Hi Heathersbug,
Thank you very much for your review of the Denago Fat Tire Step-thru eBike. Thank you for choosing Denago product and we hope you continue to enjoy it for many rides to come.
-Denago
"First off - the customer service from this company is exceptional. They communicated throughout the process to make sure I was getting exactly what I wanted once I ordered the bike. They called to make sure I was getting the size, battery power, everything that I wanted. I received the bike several days earlier than promised - BECAUSE THEY DROVE IT TO ME! I live about 80 miles from the city they are located in..
the bike are amazing (I ordered 2). Well built, study. Lots of unexpected extras. I am about 6’2, 230lbs and this bike is comfortable and has no problem getting up hills, up to speed, and going for miles. I am VERY pleased with this purchase and would highly recommentld the bike and the company!"
Out of the box it performed great. It's a heavy bike but it handles fine. The only issues I had is the seat is as hard as a rock and not very comfortable and on my first ride (14 miles) the front tire was not properly seated on the bead. My fault for not checking it. I even got it up to 32 mph going down hill. The brakes are firm and responsive. I'm a bigger guy at 6' 4" and 230lbs and it pulls me fine. I do have pedal on the big hills or it will bog it down to 10 mph. Very happy with the bike.
My only problem with the bike is the seat beside that this bike never showed any signs of failure when it comes to a 400 pound man I must say the bike is one solid bike I love this product!!!
