Denago City Model 2 Step-thru eBike

write a review

$1,399.00
$1,399.00 $1,399.00
Sale Sold out
Size
Color

Free shipping on all eBikes

FREE 1 year subscription to Flare Premium

Free assembly tools
Questions? Let us help

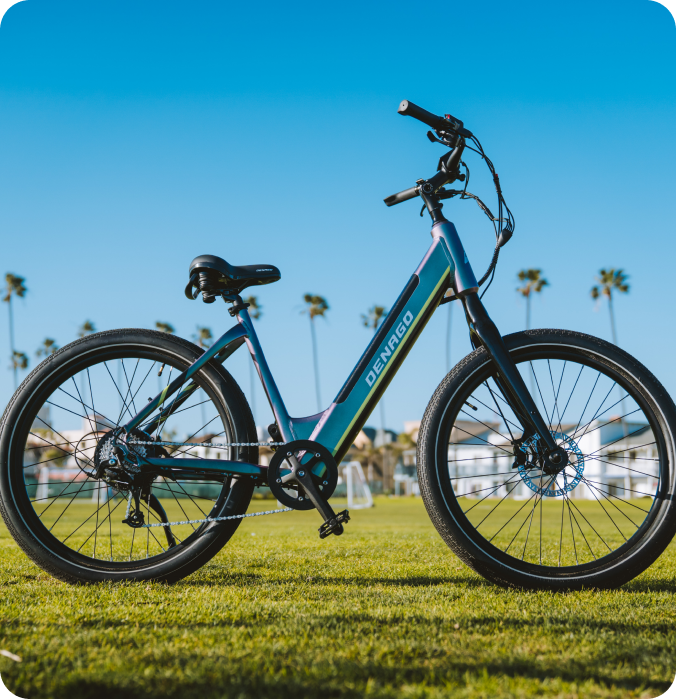

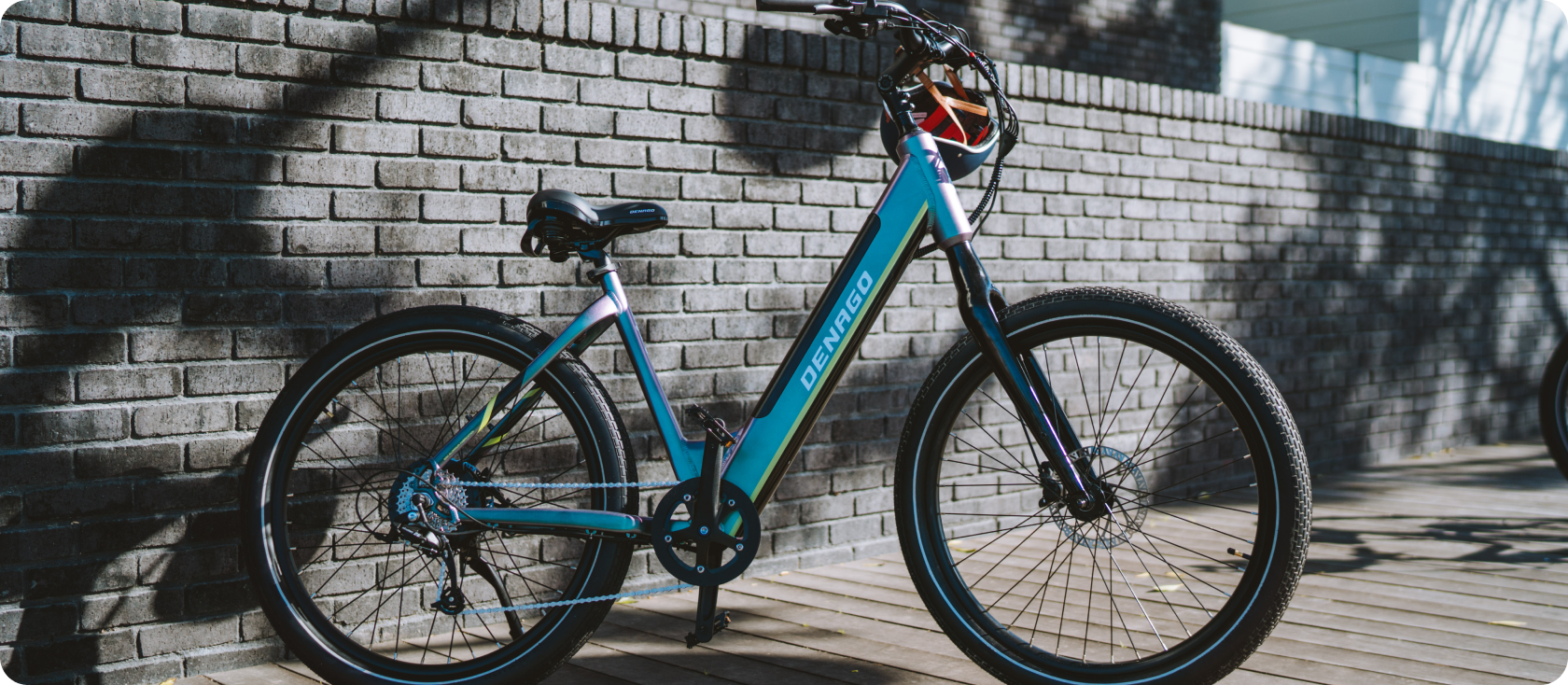

Our Denago City Model 2 eBike in step-thru frame style makes it easy to start and stop, even if you have a short inseam or difficulty throwing a leg over the saddle on a traditional top tube style bike. Our follow up to our award-winning City Model 1 is upgraded with an integrated battery and wider 2.6" tires.
Class III eBike up to 28 MPH pedal assist, 20 MPH throttle
Step-thru frame style Easy starting and stopping
Adjustable stem Easily raise and lower handlebars
2.6" tires Extra comfort and grip
USA-based support Help when you need it
Comfort saddle with convenient lift handle
Digital display Key stats at a glance
Hydraulic disc brakes Big stopping power
Kickstand Easy to park
Locking battery additional security

eBike Features

  • Class III eBike with pedal assist and throttle

    Travel up to 28 MPH on pedal assist, and up to 20 MPH on throttle alone without pedaling.

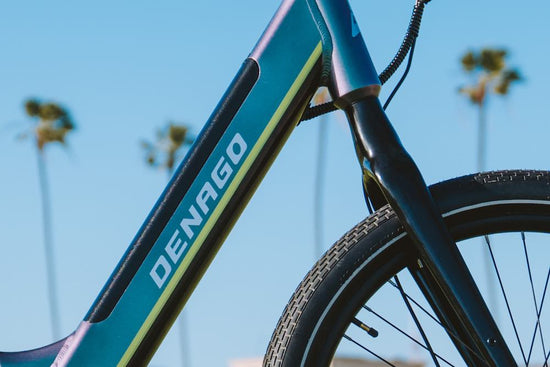

  • Stealthy, integrated battery

    652.8 Wh (48V, 13.6A) battery is integrated into the down tube for a stealthy look, making it less obvious you're riding an eBike. Includes 3 Amp fast charger, you can charge with the battery on, or off the bike.

  • 40+ mile range

    Real-world range testing shows most riders will get more than 40 miles on a single charge when using pedal assist, and 20 miles on throttle alone.

  • Digital display

    Monitor your speed, distance, battery charge, and other data on the high-resolution display. Set an optional PIN code for additional security.

1 4

See Full eBike Specifications

Top Speed:
28 MPH on pedal assist, 20 MPH on throttle (Class III eBike)

Motor:
Shengyi rear hub, 48V, 500W

Battery:
Lithium-ion, 4V, 13.6A (652.8Wh) built with LG 18650 cells

Sensors:
Cadence, Speed

Throttle:
Thumb throttle, left side

Display:
Denago high-resolution LCD with speed, pedal assist level, trip distance, odometer, trip time, battery charge level, and walk mode functions.

Charger:
Multi-voltage 110-240V, 3A Fast Charger with USA plug

Safety Data Sheets (SDS):
Denago safety data sheets are available upon request via email.

COMPONENT HIGHLIGHTS

  • Versatile 2.6" tires

    Tackle more varied terrain with wider 2.6" tires that absorb bumps and rough pavement. They're eBike-rated and features anti-puncture technology, plus reflective sidewalls for safety.

  • Suspension-corrected geometry

    Upgrade to a suspension fork later, without affecting the geometry of your eBike. Future-proof design in case your needs change.

  • Hydraulic disc brakes for stopping power

    City Model 2 uses hydraulic disc brakes with oversized rotors for more braking power.

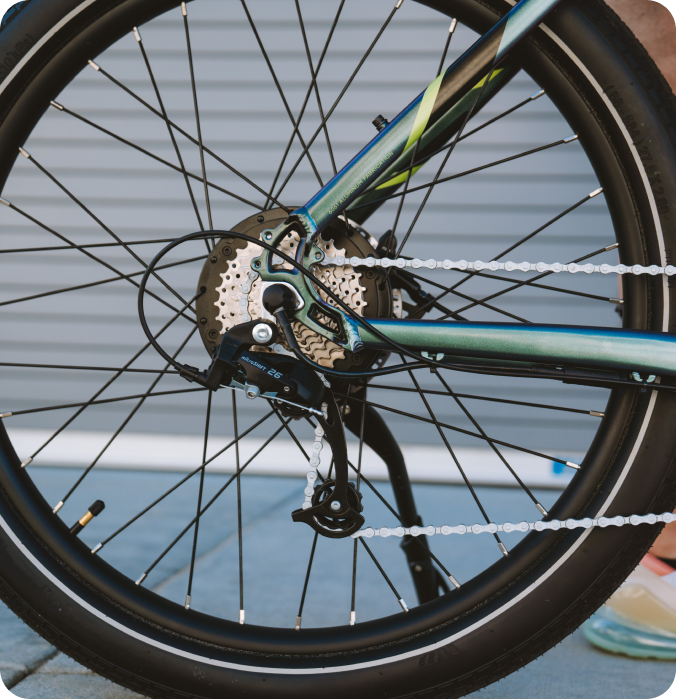

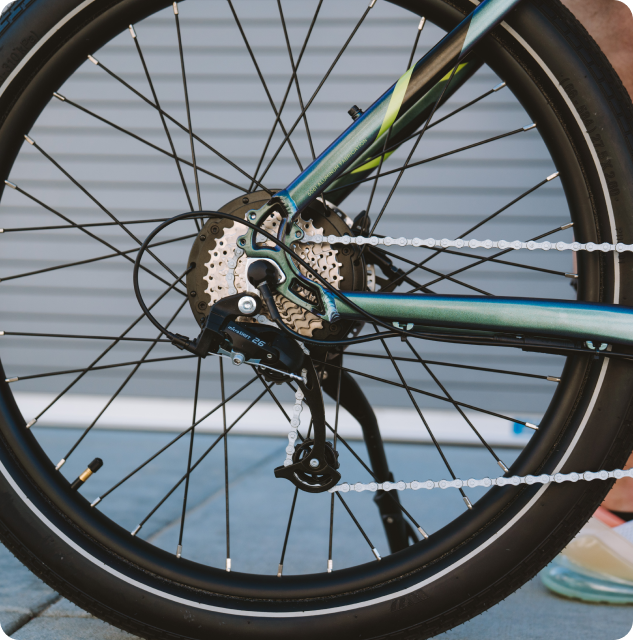

  • 8 speed drivetrain with OGD

    With an 11-32 tooth cassette, you'll have a wide range of gears, for everything from hills to headwinds. Optical Gear Display shows your chosen gear at a glance.

  • Padded saddle with lift handle

    Comfortable, wide, padded saddle includes a lift handle to help you carry your eBike up stairs or load onto a car rack.

  • Kickstand

    Easy to park at home, at the store, or office.

1 6

See Full Component Specifications

FRAME AND FORK

Frame:
6061-T6 Aluminum Alloy, Step-thru style

Fork:
Rigid, suspension-corrected length

Kickstand:
included

DRIVETRAIN

Pedals:
Platform, aluminum alloy, 9/16” with reflectors

Crankset:
Aluminum alloy, 170mm, 42 tooth chainring

Bottom Bracket:
Sealed, square taper, English thread

Rear Derailleur:
Microshift M26, 8 speed

Cassette:
8 speed, 11-32 teeth

Shifter:
Microshift 8 speed

Chain:
KMC Z-Series, 3/32”

COCKPIT

Handlebar:
Zoom aluminum alloy, 31.8mm diameter, 660mm long

Handlebar Bell:
included

Grips:
Black rubber, lock-on style

Stem:
Zoom aluminum alloy, 31.8mm clamp, 1 ⅛” threadless, adjustable angle

Headset:
1 ⅛”, sealed, threadless

Saddle:
Comfort with lift handle

Seatpost:
Zoom aluminum alloy, 30.4mm diameter, 300mm length

Seatpost Clamp:
Zoom, quick release

BRAKES

Levers:
Hydraulic disc brake with motor cut-off

Calipers:
Hydraulic disc brake

Rotors:
180mm, 6 bolt type

WHEELS

Tires:
27.5" x 2.6", puncture protection with safety reflective stripe

Tubes:
27.5" x 2.6", schrader valve

Rims:
Aluminum Alloy, 36 holes, 27.5"

Hubs:
Front - nutted, 36 holes, disc brake
Rear - Shengyi, nutted 36 holes, disc brake

Spokes:
Front - 36, 13 gauge spokes
Rear - 36, 13 gauge spokes

Nipples:
Brass

WEIGHT AND PAYLOAD

Complete eBike with battery:
58 lbs

Maximum rider weight:
300 lbs

Maximum cargo capacity:
55 lbs on the optional seatstay-mounted rear rack

WHAT'S IN THE BOX

Complete eBike
Keys
Lithium-Ion battery
3 Amp fast charger
Quickstart guide
Wheel reflectors
Assembly Tools (pedal wrench, multi-tool)

COVID-19 has created specific challenges in the bicycle industry, especially around the availability of the components required to manufacture eBikes. As a result, we reserve the right to make substitutions of equivalent components of equal or better value to ensure we can consistently deliver our eBikes in a timely fashion. Thanks for understanding!

Upgrades from City Model 1

  • Fully-integrated vs. semi-integrated battery
  • 8 speed drivetrain vs. 7 speed drivetrain
  • Suspension-corrected fork
  • Wider (2.6") tires vs. 2.3" tires

Size and fit

  • Dustin is 6'1" tall

    Shown riding City Model 2 Step-thru, size L/XL

  • Lakana is 5'7" tall

    Shown riding City Model 2 Top Tube, size S/M

  • Sam is 6' tall

    Shown riding City Model 2 Step-thru, size L/XL

1 3

Full geometry chart and dimensions

Denago City Model 2 Step-thru eBike Full Geometry Chart

Our size and fit recommendations

Denago recommends:

Size S/M for riders 4'11" - 5'8"
Size L/XL for riders 5'8" - 6'5"

Assembly tools included

  • Denago eBike multi-tool

    Multitool

    Our multitool has all the hex keys and screwdrivers you'll need to complete assemby.

  • photo of Denago pedal and axle nut wrench

    Pedal and axle nut wrench

    Fits pedals and axle nuts, perfect for your home shop or to take on the road.

  • image of a woman holding a cell phone and laptop

    Expert guidance

    Instructions in the box. Free help via phone, live chat, or email.

1 3

Shipping and delivery

  • UPS logo

    Free standard shipping on all eBikes

    All eBikes ship free from Denago.com.

  • Fast delivery

    In-stock eBikes are delivered in just 1-5 business days, depending on your state.

  • Need it today?

    Check partner bike shops near you who sell assembled, ready to ride Denago eBikes. Find a dealer near you.
