Denago City Model 2 Top Tube eBike
write a review
Regular price
$1,399.00
Regular price
$1,399.00
Sale price
$1,399.00
Unit price
per
Free shipping on all eBikes
FREE 1 year subscription to Flare Premium
Free assembly tools
Couldn't load pickup availability
Questions?
Let us help

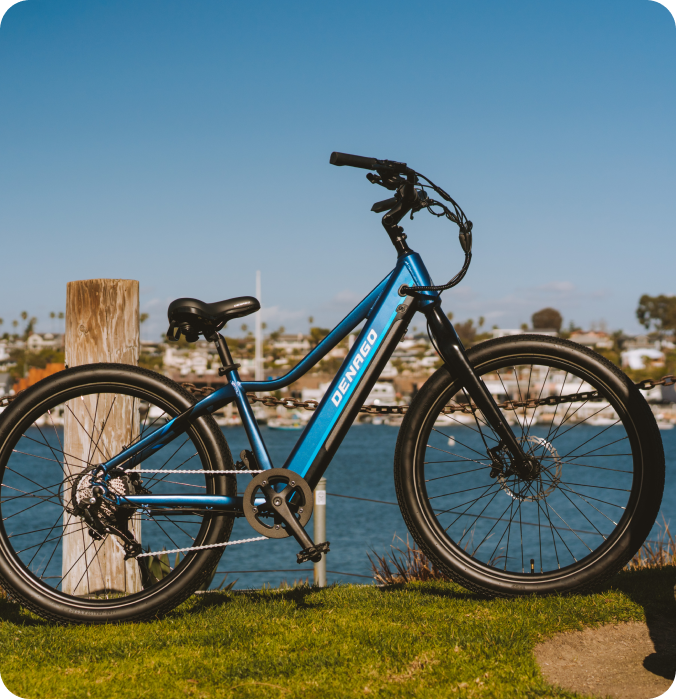

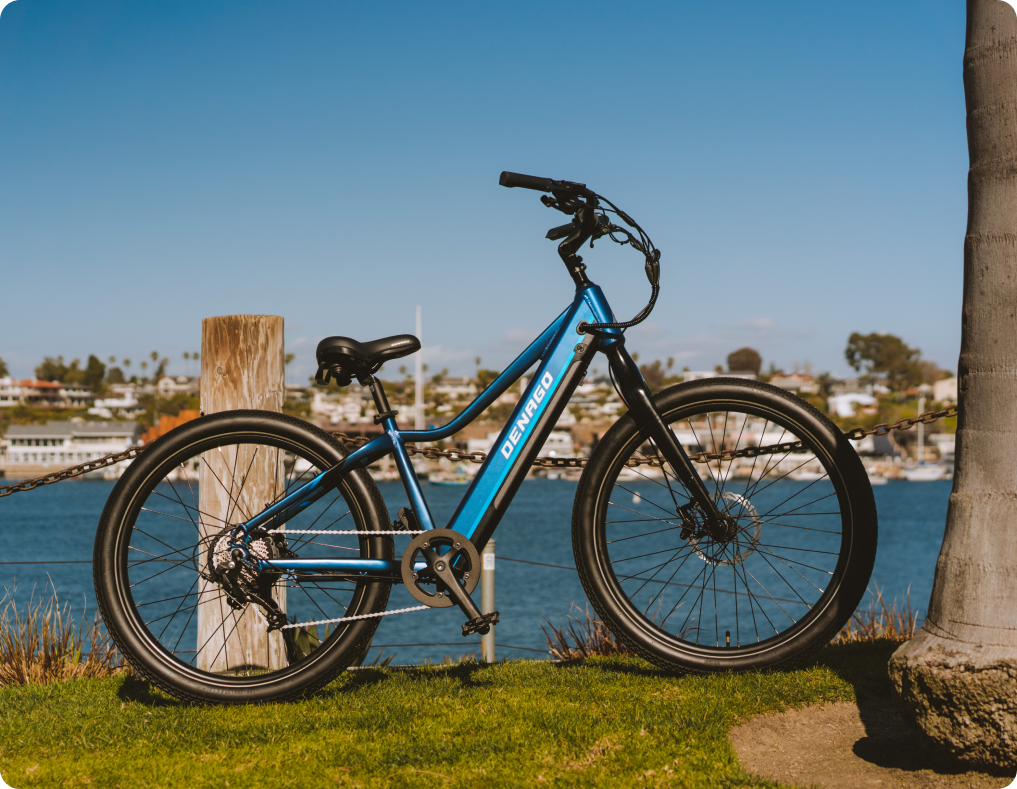

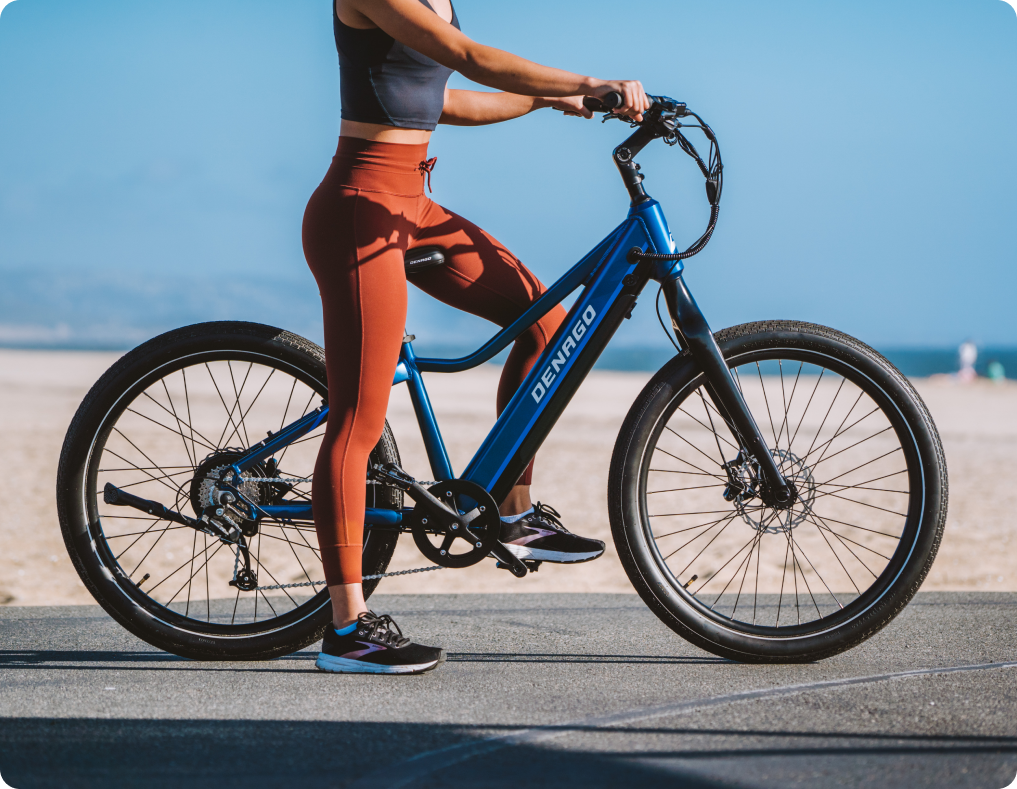

City 2 is the updated version of our award-winning City Model 1 eBike, adding an integrated battery, wider tires, and upgraded 8 speed drivetrain. City 2 is a Class III eBike offering pedal assist speeds up to 28 MPH, and 20 MPH on throttle. Top tube frame design for riders who prefer a traditional look.
Class III eBike
up to 28 MPH pedal assist, 20 MPH throttle
Top tube frame style
Classic look and design
Adjustable stem
Easily raise and lower handlebars
2.6" tires
Extra comfort and grip
USA-based support
Help when you need it
Comfort saddle
with convenient lift handle
Digital display
Key stats at a glance
Hydraulic disc brakes
Big stopping power
Kickstand
Easy to park
Locking battery
additional security
eBike Features
-
Class III eBike with pedal assist and throttle
Travel up to 28 MPH on pedal assist, and up to 20 MPH on throttle alone without pedaling.
-

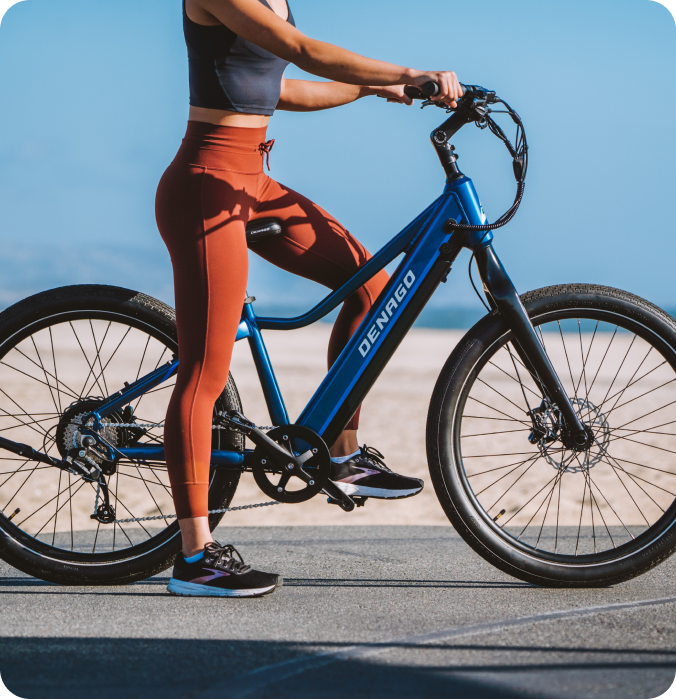

Stealthy, integrated battery
652.8 Wh (48V, 13.6A) battery is integrated into the down tube for a stealthy look, making it less obvious you're riding an eBike. Includes 3 Amp fast charger, you can charge with the battery on, or off the bike.
-
40+ mile range
Real-world range testing shows most riders will get more than 40 miles on a single charge when using pedal assist, and 20 miles on throttle alone.
-
Digital display
Monitor your speed, distance, battery charge, and other data on the high-resolution display. Set an optional PIN code for additional security.
Collapsible content
See Full eBike Specifications
Top Speed:
28 MPH on pedal assist, 20 MPH on throttle (Class III eBike)
Motor:

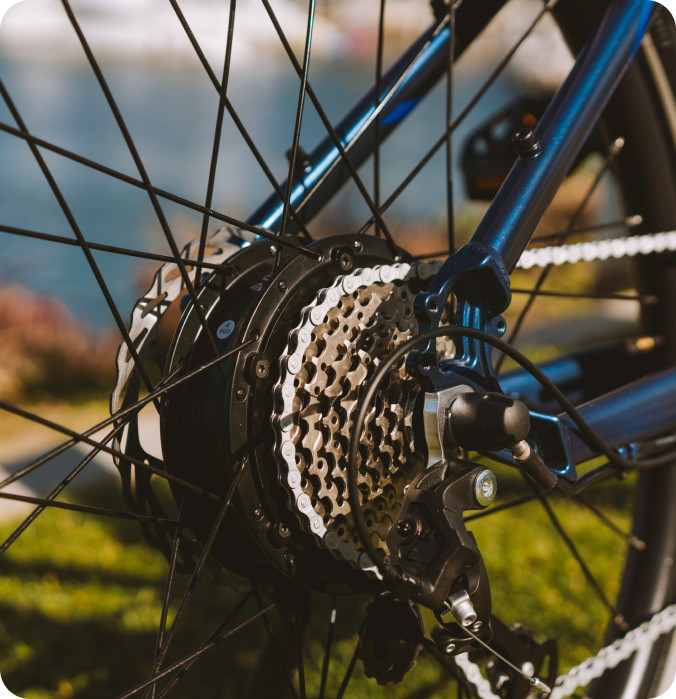

Shengyi rear hub, 48V, 500W
Battery:
Lithium-ion, 4V, 13.6A (652.8Wh) built with LG 18650 cells
Sensors:
Cadence, Speed
Throttle:
Thumb throttle, left side
Display:
Denago high-resolution LCD with speed, pedal assist level, trip distance, odometer, trip time, battery charge level, and walk mode functions.
Charger:
Multi-voltage 110-240V, 3A Fast Charger with USA plug
Safety Data Sheets (SDS):
Denago safety data sheets are available uponĀ request via email.
COMPONENT HIGHLIGHTS
-
Versatile 2.6" tires
Tackle more varied terrain with wider 2.6" tires that absorb bumps and rough pavement. They're eBike-rated and features anti-puncture technology, plus reflective sidewalls for safety.
-
Suspension-corrected geometry
Upgrade to a suspension fork later, without affecting the geometry of your eBike. Future-proof design in case your needs change.
-
Hydraulic disc brakes for stopping power
City Model 2 uses hydraulic disc brakes with oversized rotors for more braking power.
-

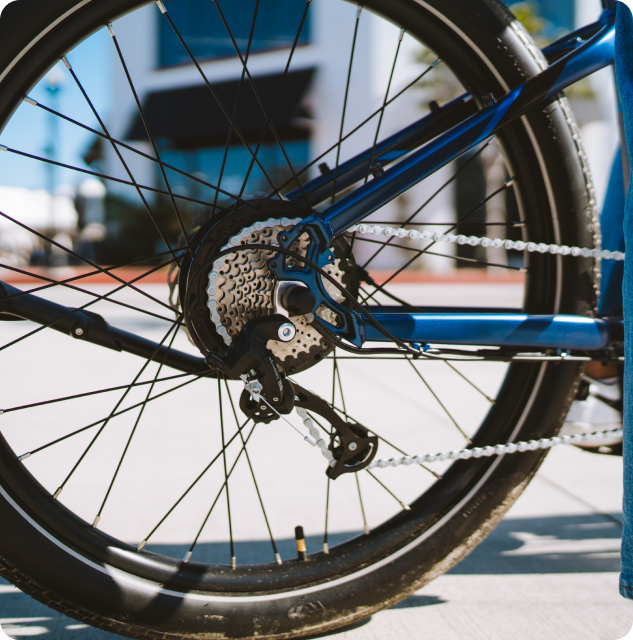

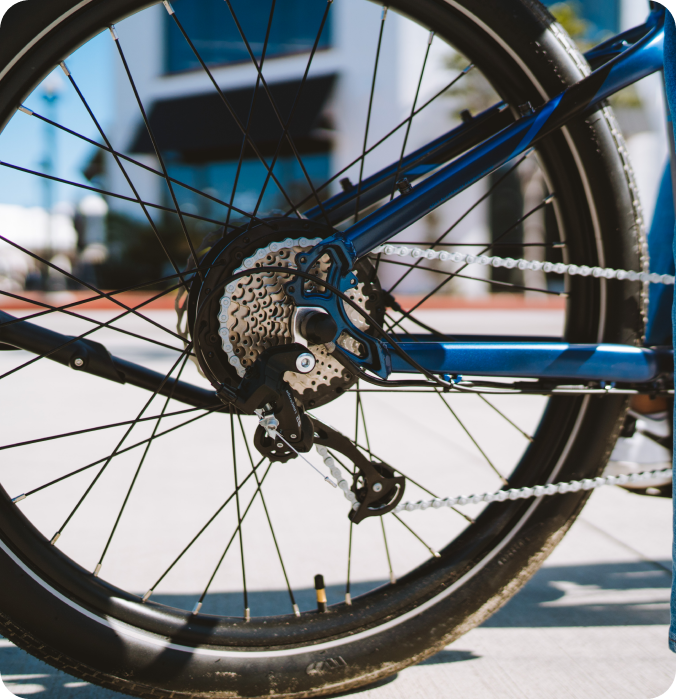

8 speed drivetrain with OGD
With an 11-32 tooth cassette, you'll have a wide range of gears, for everything from hills to headwinds. Optical Gear Display shows your chosen gear at a glance.
-
Padded saddle with lift handle
Comfortable, wide, padded saddle includes a lift handle to help you carry your eBike up stairs or load onto a car rack.
-
Kickstand
Easy to park at home, at the store, or office.
Collapsible content
See Full Component Specifications
FRAME AND FORK
Frame:
6061-T6 Aluminum Alloy, Top tube style
Fork:
Rigid, suspension-corrected length
Kickstand:
included
DRIVETRAIN
Pedals:
Platform, aluminum alloy, 9/16ā with reflectors
Crankset:Ā
Aluminum alloy, 170mm, 42 tooth chainring
Bottom Bracket:Ā
Sealed, square taper, English thread
Rear Derailleur:Ā
Microshift M26, 8 speed
Cassette:
8 speed, 11-32 teeth
Shifter:Ā
Microshift 8 speed
Chain:
KMC Z-Series, 3/32ā
COCKPIT
Handlebar:
Zoom aluminum alloy, 31.8mm diameter, 660mm long
Handlebar Bell:
included
Grips:
Black rubber, lock-on style
Stem:Ā
Zoom aluminum alloy, 31.8mm clamp, 1 ā
ā threadless, adjustable angle
Headset:
1 ā
ā, sealed, threadless
Saddle:
Comfort with lift handle
Seatpost:
Zoom aluminum alloy, 30.4mm diameter, 300mm length
Seatpost Clamp:
Zoom, quick release
BRAKES
Levers:Ā
Hydraulic disc brake with motor cut-off
Calipers:
Hydraulic disc brake
Rotors:Ā
180mm, 6 bolt type
WHEELS
Tires:Ā
27.5" x 2.6", puncture protection with safety reflective stripe
Tubes:Ā
27.5" x 2.6", schrader valve
Rims:
Aluminum Alloy, 36 holes, 27.5"
Hubs:
Front - nutted, 36 holes, disc brake
Rear - Shengyi, nutted 36 holes, disc brake
Spokes:
Front - 36, 13 gauge spokes
Rear - 36, 13 gauge spokes
Nipples:Ā
Brass
WEIGHT AND PAYLOAD
CompleteĀ eBike with battery:
58Ā lbs
Maximum rider weight:
300Ā lbs
Maximum cargo capacity:Ā
55Ā lbs on the optional seatstay-mounted rear rack
WHAT'S IN THE BOX
Complete eBike
Keys
Lithium-Ion battery
3 Amp fast charger
Quickstart guide
Wheel reflectors
Assembly Tools (pedal wrench, multi-tool)
COVID-19 has created specific challenges in the bicycle industry, especially around the availability of the components required to manufacture eBikes. As a result, we reserve the right to make substitutions of equivalent components of equal or better value to ensure we can consistently deliver our eBikes in a timely fashion. Thanks for understanding!
Upgrades from City Model 1
- Fully-integrated vs. semi-integrated battery
- 8 speed drivetrain vs. 7 speed drivetrain
- Suspension-corrected fork
- Wider (2.6") tires vs. 2.3" tires

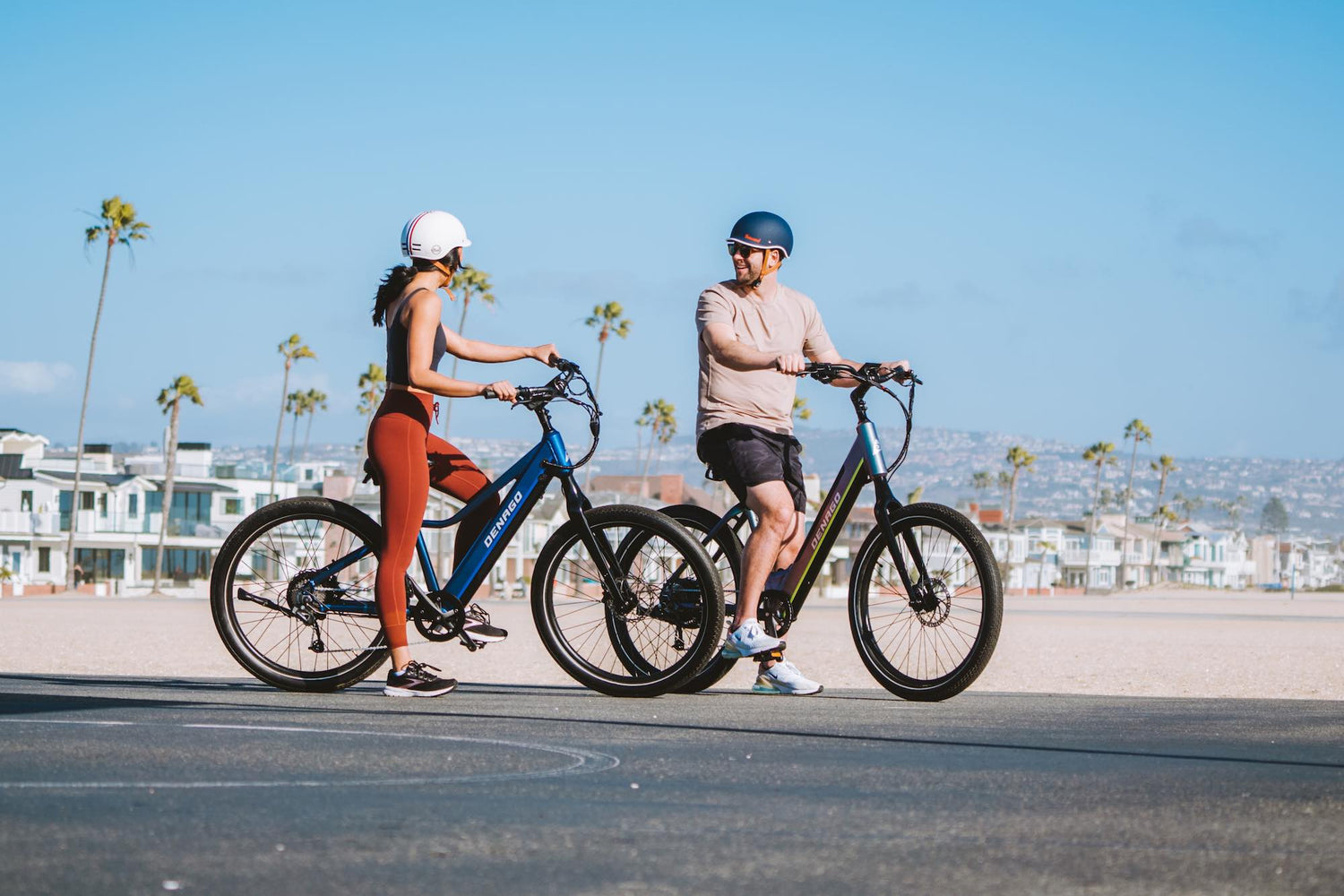

Size and fit
-
Sam is 6' tall
Shown riding City Model 2 Step-thru, size L/XL
-
Lakana is 5'7" tall
Shown riding City Model 2 Top Tube, size S/M
-
Dustin is 6'1" tall
Shown riding City Model 2 Step-thru, size L/XL
Collapsible content
Full geometry chart and dimensions
Our size and fit recommendations
Denago recommends:
Size S/M for riders 5'0" - 5'9"
Size L/XL for riders 5'9" - 6'4"
Assembly tools included
-
Multitool
Our multitool has all the hex keys and screwdrivers you'll need to complete assemby.
-
Pedal and axle nut wrench
Fits pedals and axle nuts, perfect for your home shop or to take on the road.
-
Expert guidance
Instructions in the box. Free help via phone, live chat, or email.
