500 W
motor
60 Miles
range
Adjustable handlebar
HANDLEBAR

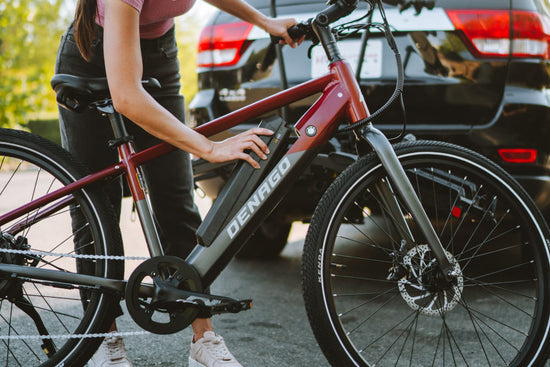

LG 48V 13.6Ah
battery
300 LBS
PAYLOAD CAPACITY
28 MPH
Top Speed
300+ Bike Shops
eBike service & test rides
Safety Certified
In accordance with UL2849 and UL2271

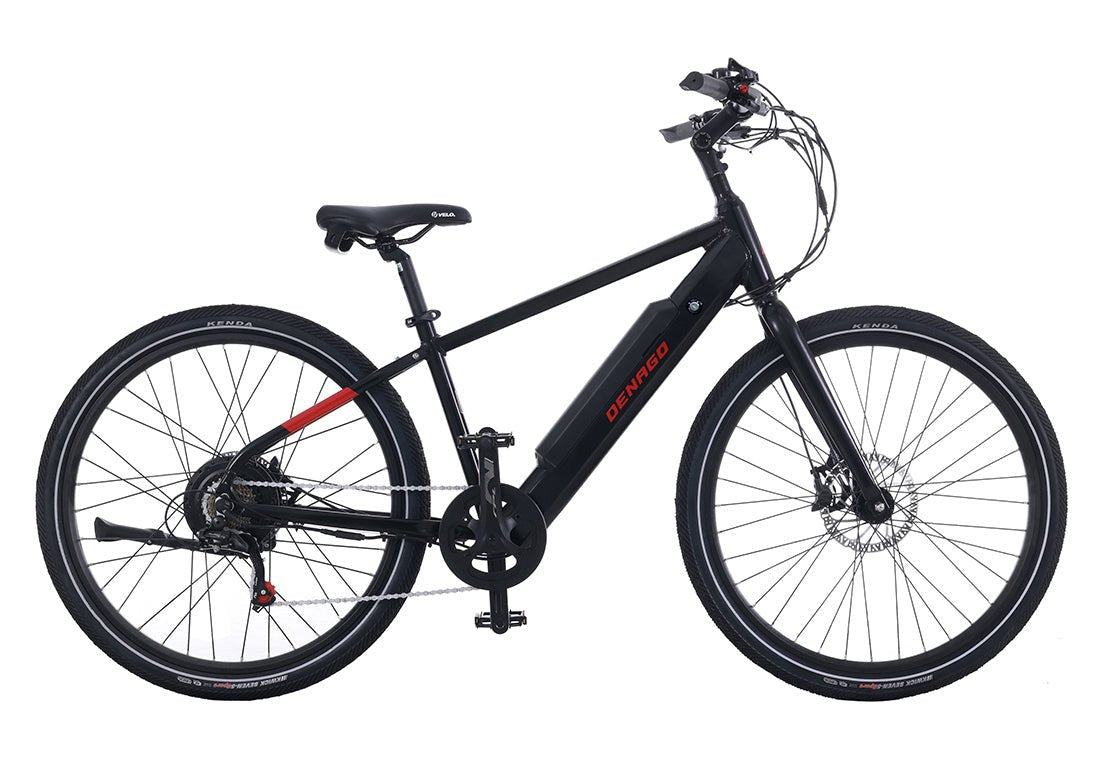

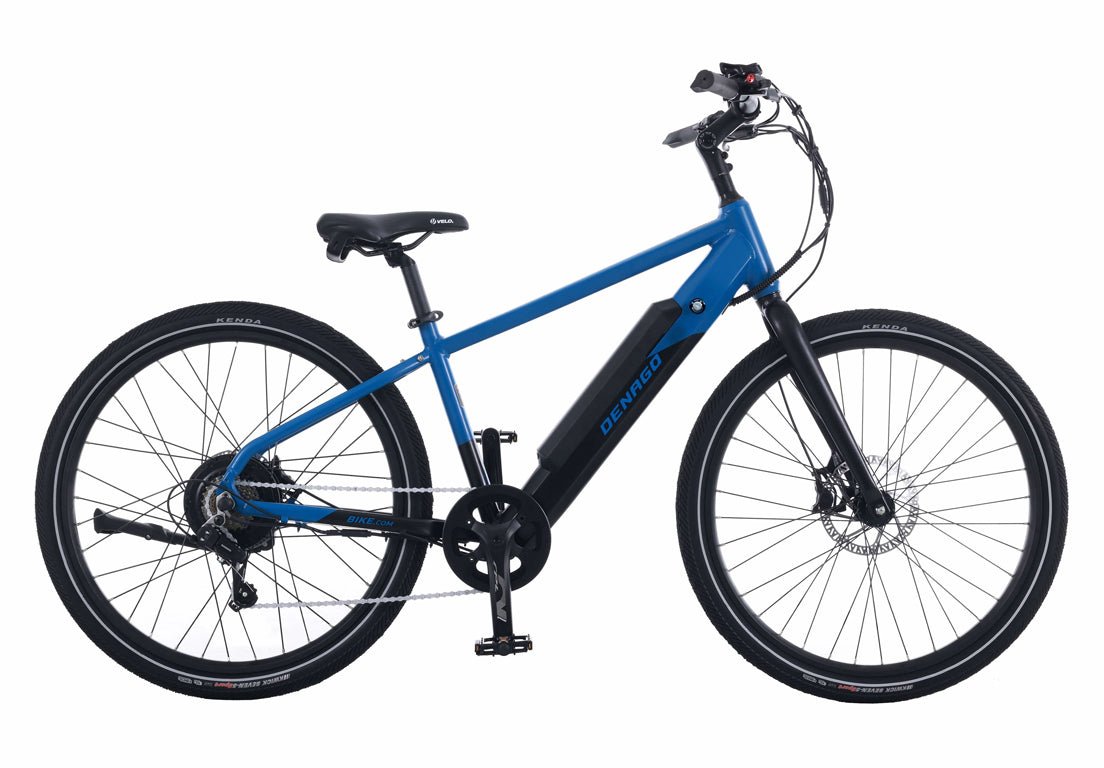

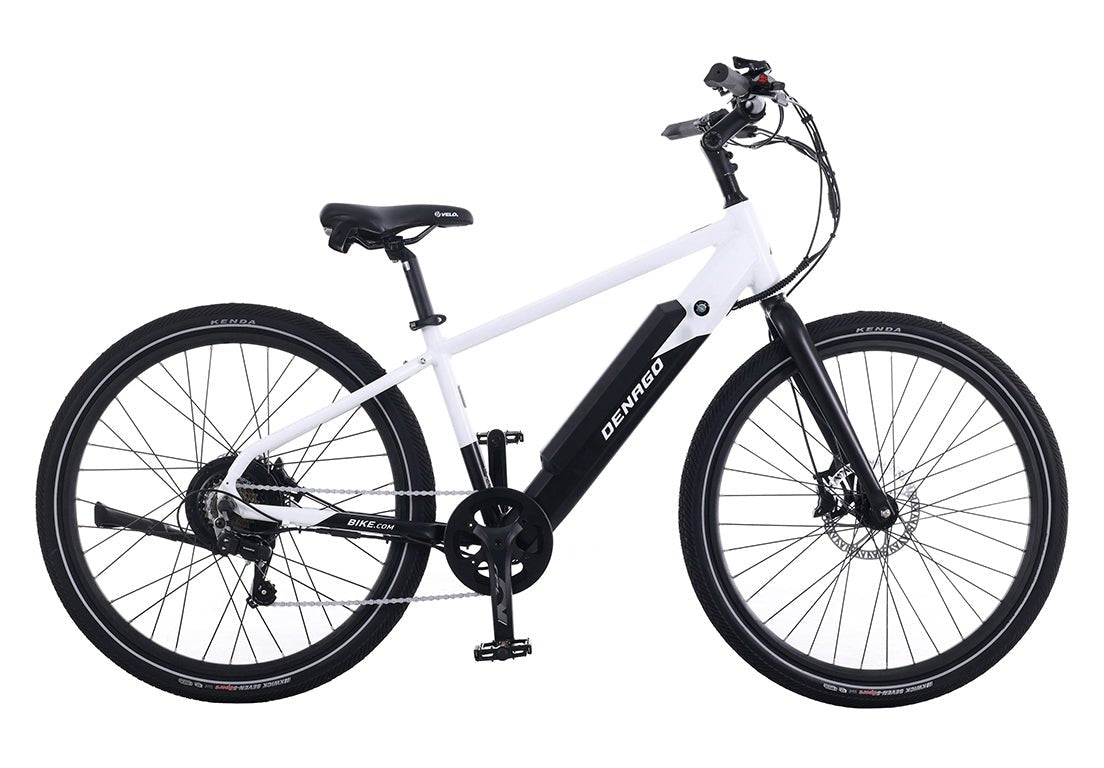

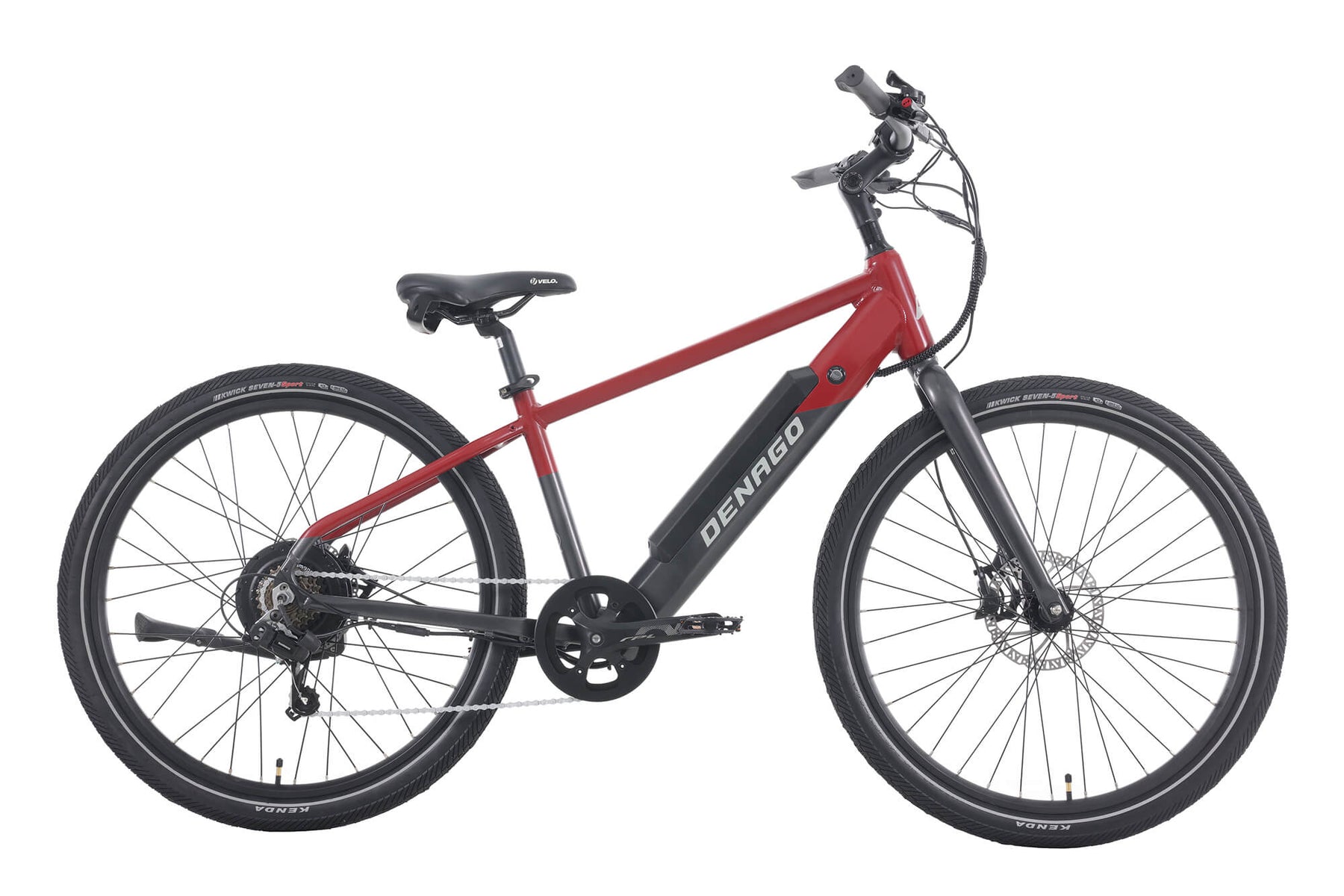

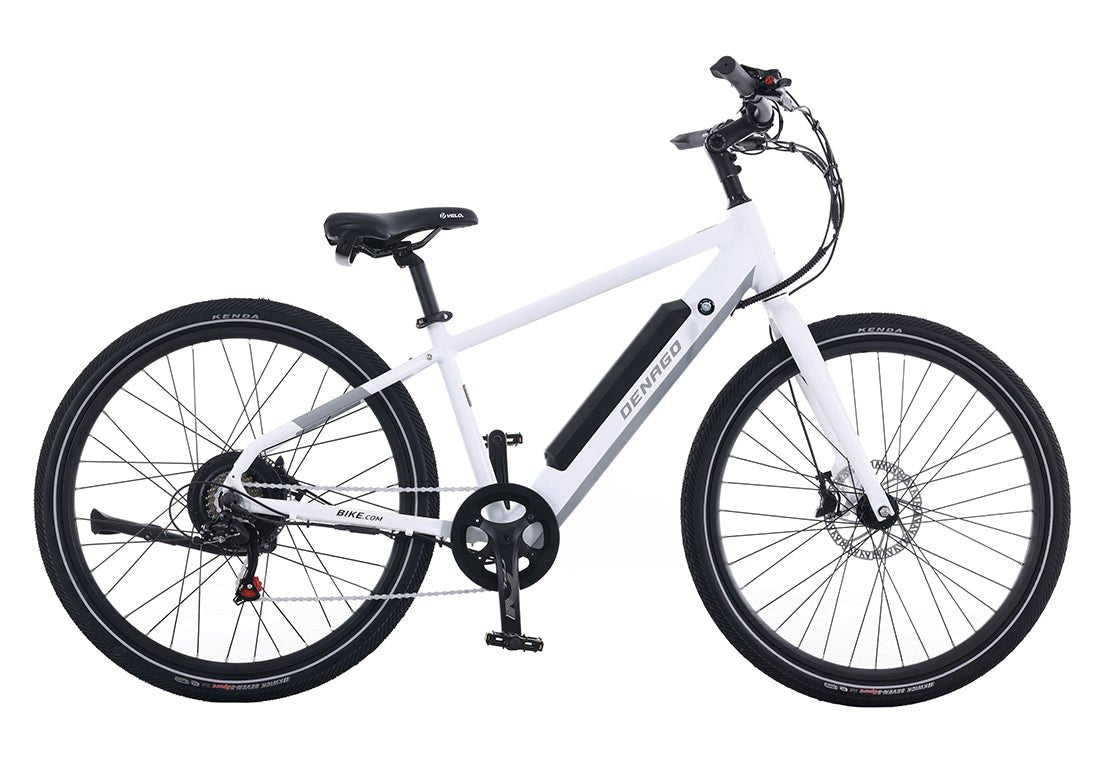

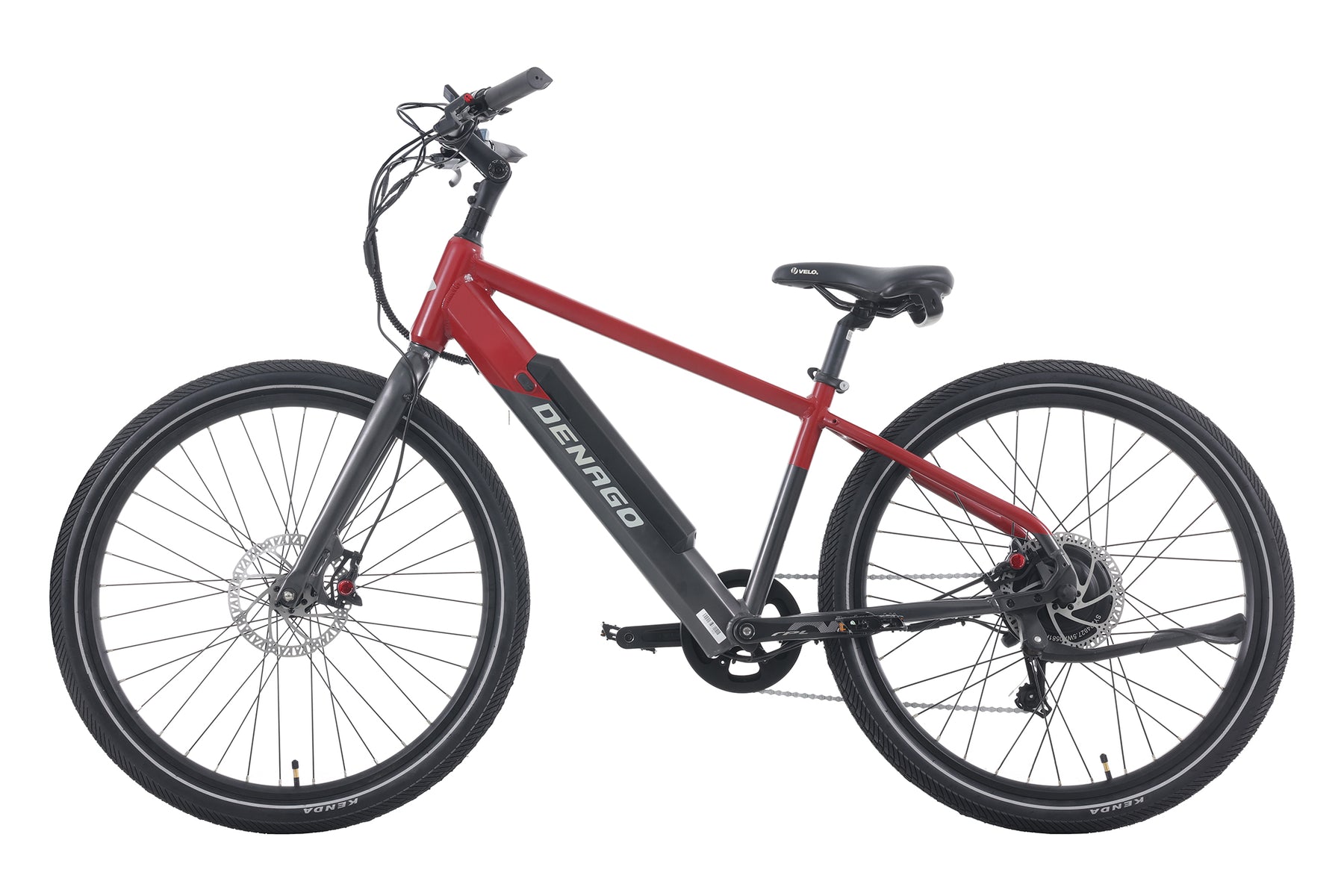

Denago City 1 High Step eBike
The First eBike with Full Hydraulic brakes under $1000.
City Model 1 includes both pedal assist (choose how much help you want using the digital controls) to cruise at up to 28 MPH, as well as a thumb throttle, which can propel you at up to 20 MPH without pedaling. There’s a large, handlebar display showing your speed, distance, time, battery life, and other information, plus a kickstand for easy parking. Includes Kenda puncture-resistant tires, powerful hydraulic disc brakes for safer and stopping, and Shimano’s 7 speed drivetrain.
TIME
REMAINING
Size
2 Year Warranty
Free Shipping
15-Day Returns

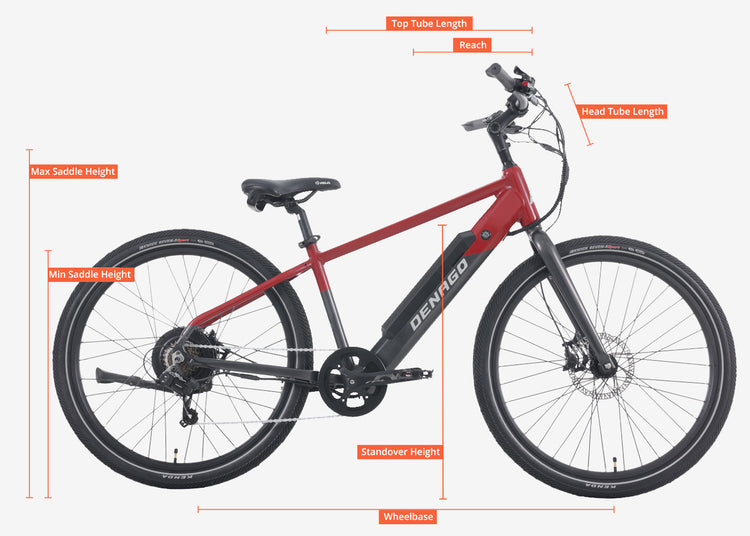

Geometry
Frame Size | one size |
Height | 63.6"-61.2” |
Wheelbase | 43.7"/1109mm |
Top Tube Length | 23.0"/584mm |
Head Tube Length | 6.7"/170mm |
Standover Height | 30.2"/768mm |
Reach | 4.6"/117mm |
Technical Specifications
Frame Size | one size |
Battery | 48V,13.6Ah (652.8 Wh) LG |
Maximum Weigh | 300 lbs |
Item Weight | 53 lbs |
Charger | 54.6V/3A/DC 3-core XLR connector |
Speed |
28 MPH on pedal assist, 20 MPH on throtte |
Range | 60 miles max range |
Motor | 500 Watt Rear Hub Motor 50 NM Torque |
Wheel Size | 27.5”x2.2” |
Display | LCD Display |
Seat Tube Length | 400mm |
Bottom Bracket Drop | 55mm |
Derailleur | Shimano 7 speed |
Front Fork |
None suspension |
Frame | 6061-T6 Aluminum Alloy |
Throttle | Thumb throttle |
Handlebar | 660mm |
Kickstand | Aluminum Alloy |
Rims | 27.5”, Al-alloy |
Saddle | 6886C-B |
Sensor | Speed |
Head Tube Angle | 71° |
Seat Tube Angle | 73° |
Rear Chainstay Length | 463mm |
Front Wheel Center | 652mm |
Stack Height | 597mm |
Fork Length | 415mm |
Fork Offset | 38mm |
Fork rake | 46mm |
Stem length | 90mm |
Crank Length | 170mm |
Grips | 137mm |
Seatpost | 30.4*300L |
Shift Lever | 1x7 |
BRAKES |
hydraulic disc brakes |
Crankset |
42T Aluminum chain cover |
Seat Clamp |
φ35mm |
Front Head Light |
N/A |
ebike class |
3 |
500 W
motor
60 Miles
range
Adjustable handlebar
HANDLEBAR
LG 48V 13.6Ah
battery
300 LBS
PAYLOAD CAPACITY
28 MPH
Top Speed
300+ Bike Shops
eBike service & test rides
Safety Certified
In accordance with UL2849 and UL2271
See the City 1 High Step in Action!
Throttle Only |
Pedal-Assist |
|||||
1PAS | 2PAS | 3PAS | 4PAS | 5PAS | ||
Range : |
30Miles |
60Miles |
52Miles |
43Miles |
36Miles |
31Miles |
Range : |
|||
Throttle |
30Miles |
||
Pedal |
60Miles |
1PAS | |
52Miles |
2PAS | ||
43Miles |
3PAS | ||
36Miles |
4PAS | ||
31Miles |
5PAS |
Discover Design Advantages
The sleek top tube frame exudes modern aesthetics, while the powerful electric motor ensures effortless rides.
28 MPH Top Speed
5 levels of pedal assist
60 Miles Max Range
Throttle Safely
Puncture-resistant, eBike-rated tires
Hydraulic disc brakes for stopping power
Adjustable stem
Padded saddle with lift handle
Convenient kickstand
How it fits
Cameron is 5'6" tall
Shown riding City Model 1, Top tube, One Size.

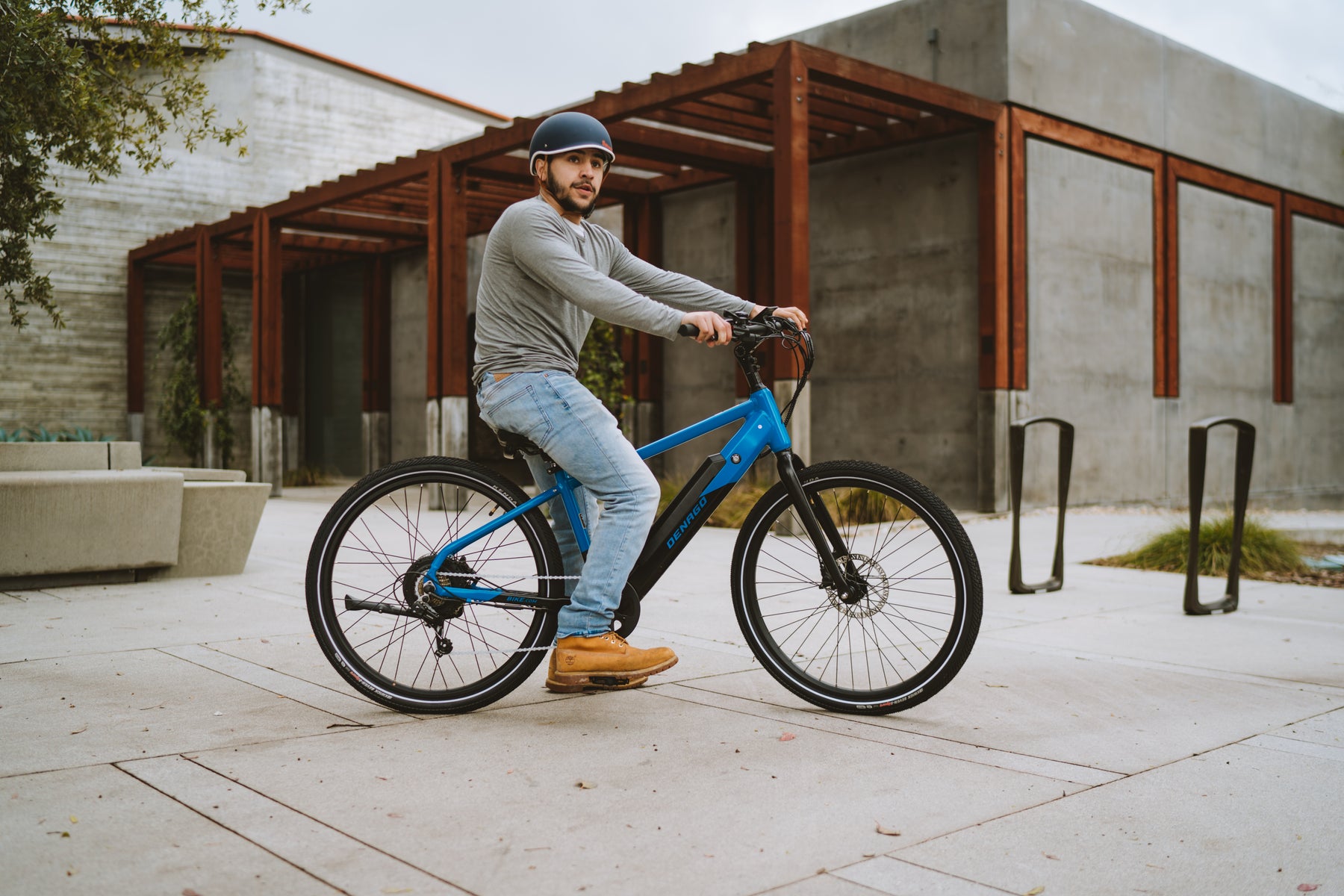

Steve is 6'2" tall
Shown riding City Model 1 Top Tube, One Size with our optional 400mm extended seatpost for tall riders.
Geometry
Dimension
Size
Wheelbase
43.7"/1109mm
Top Tube Length
23.0"/584mm
Head Tube Length
6.7"/170mm
Standover Height
30.2"/768mm
Reach
4.6"/117mm
Main features
More details
Compare
Click here for important safety tips and guidelines on lithium-ion and other storage batteries, provided by the New York City.
