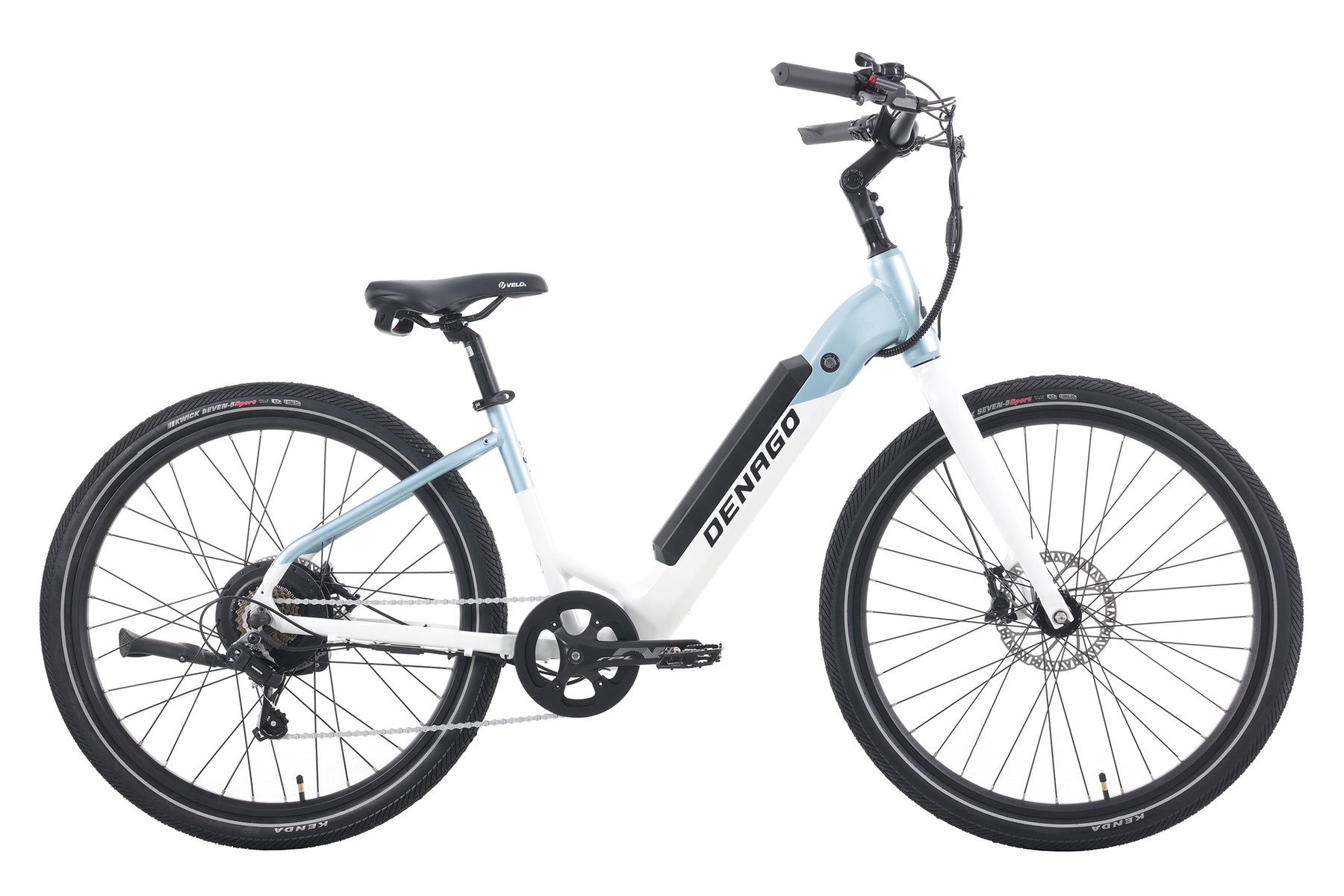

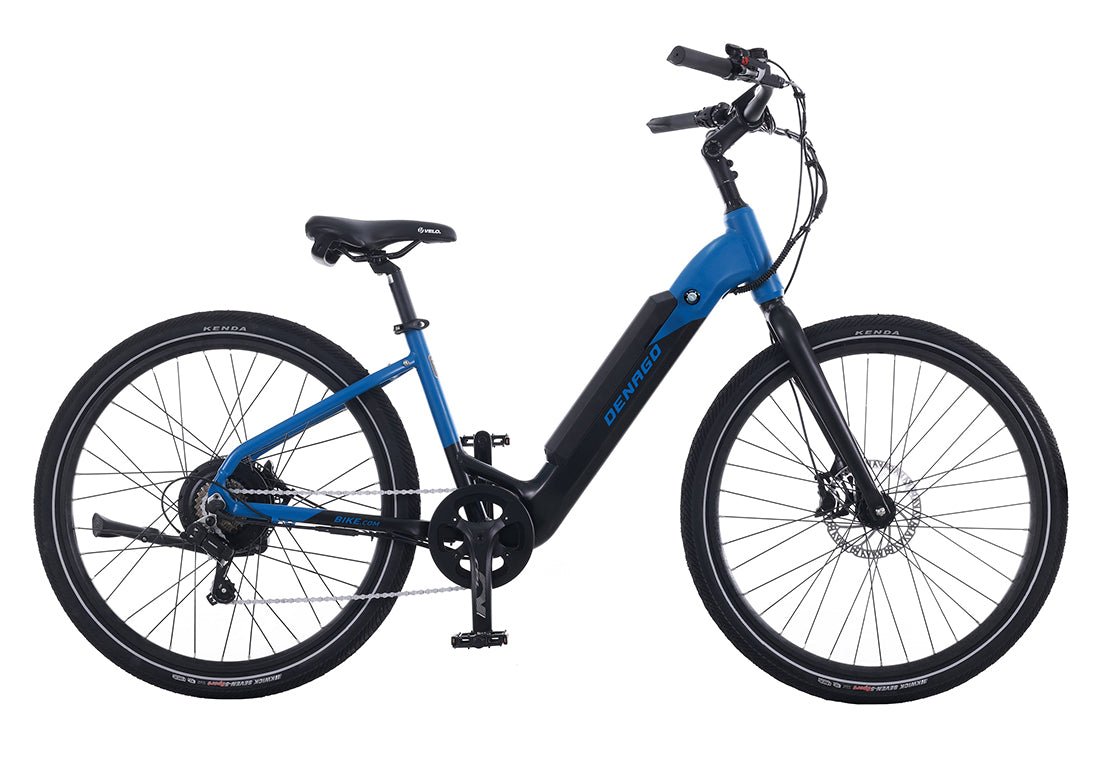

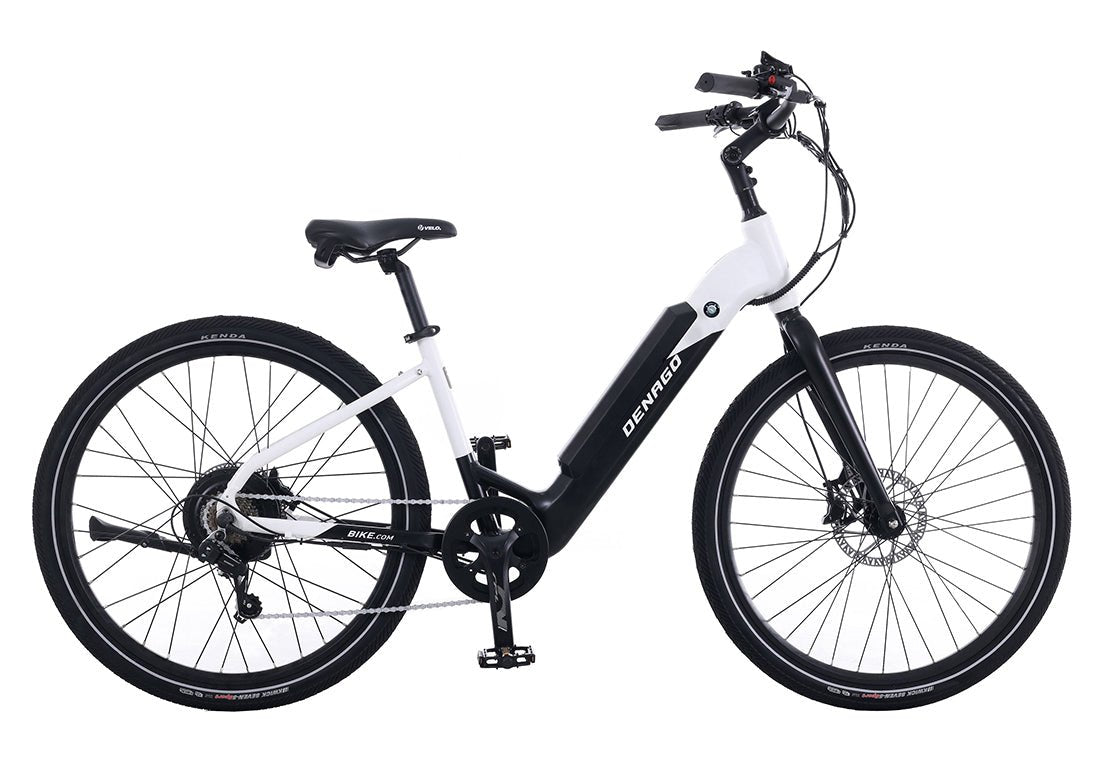

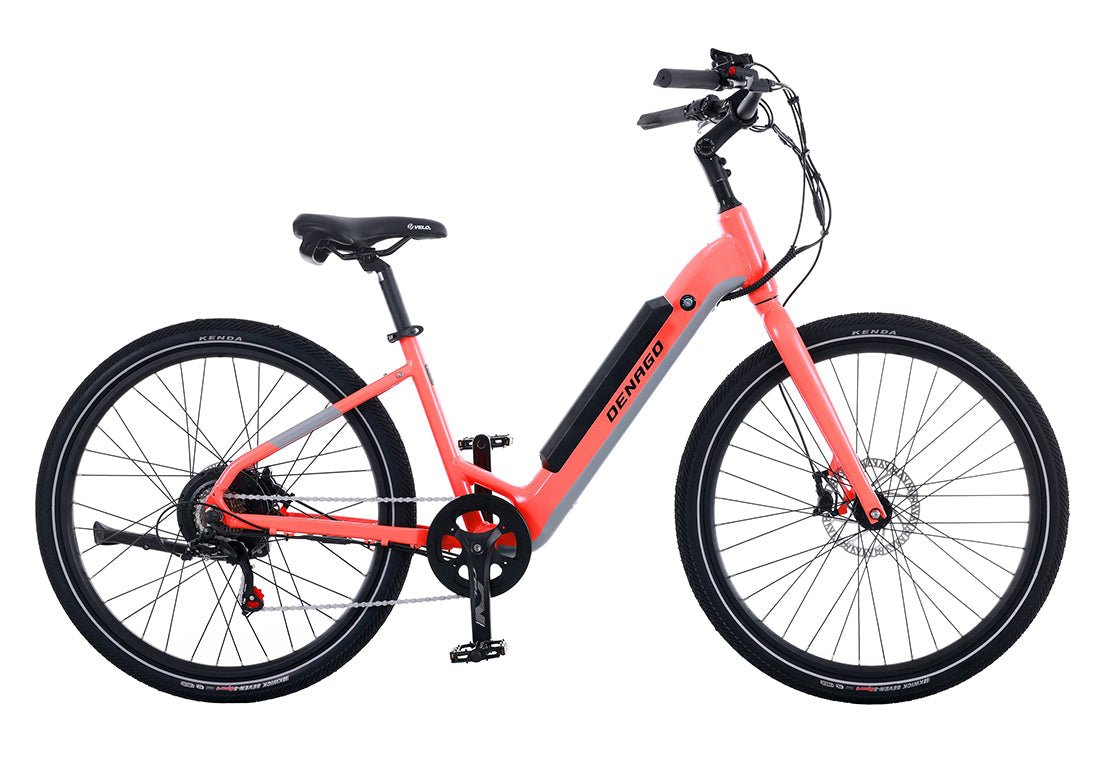

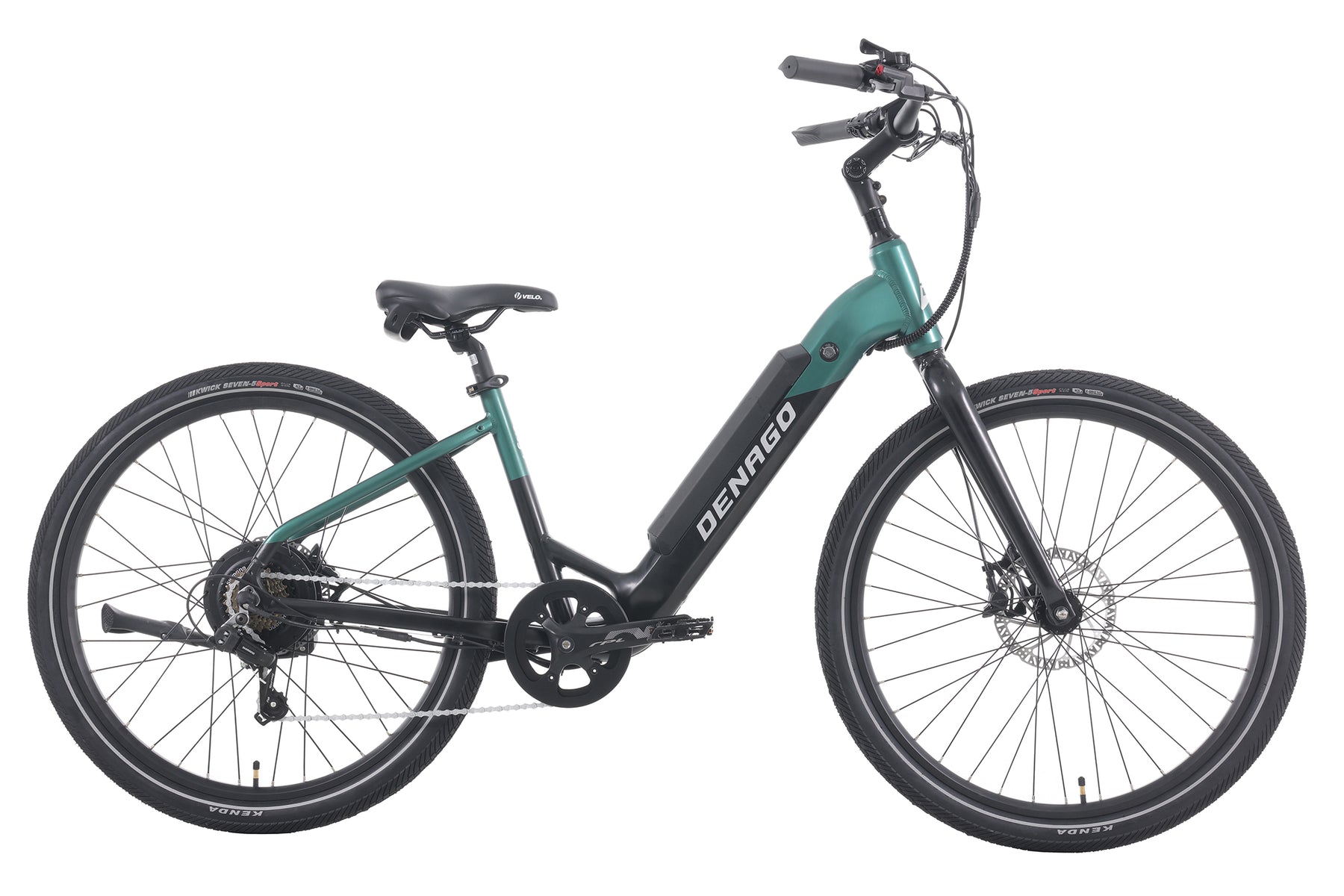

CITY MODEL 1 STEP-THRU EBIKE FEATURES
Collapsible content
See Full eBike Specifications
Top speed:
28 MPH on pedal assist, 20 MPH on throttle
Motor:
Shengyi rear hub motor, 48V, 500W, 50 Nm torque rating, IPX5 Water-Resistant rated
Throttle:
Thumb throttle, left side
Display:
Denago K5242 LCD with speed, motor power, trip distance, odometer, trip time, battery charge level, and walk mode functions
Battery:
48V, 13.6Ah, 652.8Wh, Semi Integrated style with LG cells, IPX6 Water-Resistant rated
Sensors:
Speed, Cadence
Charger:
Multi-voltage 110-240V, 3A Fast Charger with USA plug
UL Certification (as of manufacture date October 1, 2023):
UL 2849 certified, with a UL 2271 certified battery
Safety Data Sheets (SDS):
For 24/7 Chemical Emergency Response and SDS Information, call 1 (800) 255-3924
Download: Denago eBike safety data sheets (PDF)
CITY MODEL 1 STEP-THRU COMPONENTS
Collapsible content
See Full Component Specifications
FRAME AND FORK
6061-T6 Aluminum Alloy, Step-thru style

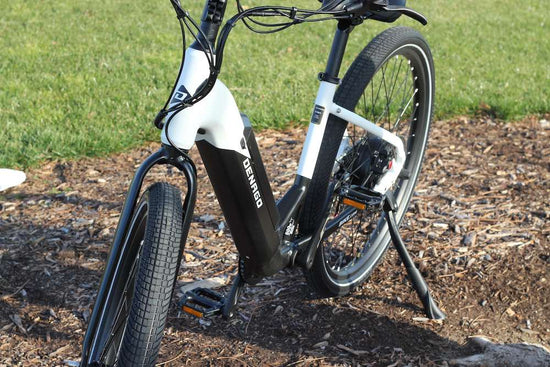

Kickstand:
included
DRIVETRAIN
Pedals:
Platform, aluminum alloy, 9/16” with reflectors
Crankset:
Aluminum alloy, 170mm, 42 tooth chainring
Bottom Bracket:
Sealed, square taper, 126mm, English thread

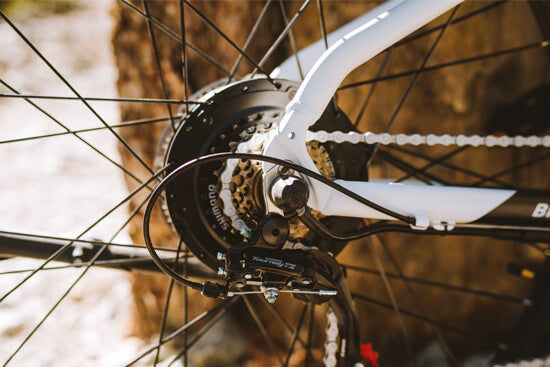

Rear Derailleur:
Shimano Tourney, 7 speed
Freewheel:
Shimano Tourney, 7 speed, 14-28 teeth
Shifter:
Shimano Tourney, 7 speed, trigger
Chain:
KMC Z-Series, 3/32”
COCKPIT
Handlebar:
Zoom aluminum alloy, 31.8mm diameter, 660mm long
Handlebar Bell:
included
Grips:
Black rubber, lock-on style
Stem:
Adjustable angle, 31.8mm clamp, 1 ⅛” threadless, 90mm extension
Headset:
1 ⅛”, sealed, threadless
Saddle:
Velo Plush Comfort with lift handle
Seatpost:
Zoom aluminum alloy, 30.4mm diameter, 300mm length
Seatpost Clamp:
Zoom, quick release
BRAKES
Levers:
Zoom HB875 hydraulic disc with motor cut-off
Calipers:
Zoom HB875 hydraulic disc with motor cut-off
Rotors:
180mm, 6 bolt type
WHEELS
Tires:

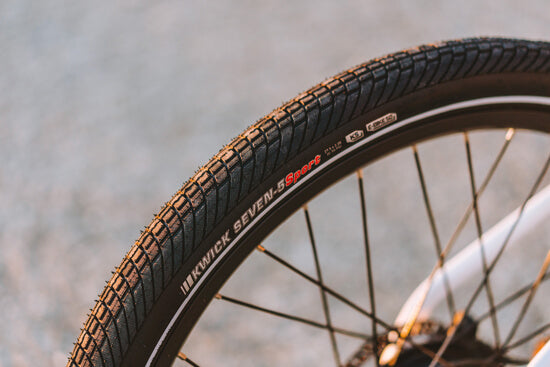

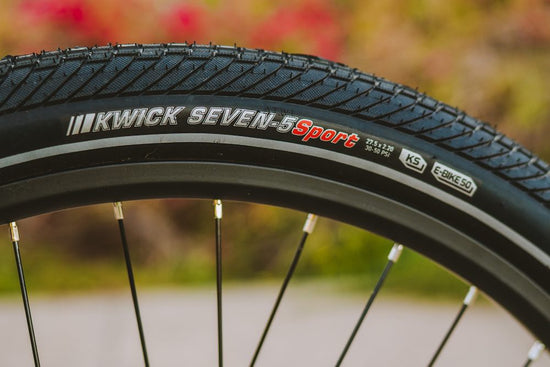

Kenda Kwick Seven.5, 27.5 x 2.2”, K-Shield puncture protection with safety reflective stripe
Tubes:
Kenda 27.5 x 2.2”, schrader valve
Rims:
Aluminum Alloy, 36 holes, 27.5”
Hubs:
Front - Quando Disc, nutted, 36 holes; Rear Shengyi DGW22, nutted, 36 holes
Spokes:
36 Black ED13 gauge spokes front, 36 12 gauge spokes rear
Nipples:
Brass
WEIGHT AND PAYLOAD
Complete ebike with battery:
53 lbs
Maximum rider weight:
280 lbs
Maximum cargo capacity:
35 lbs on the optional rear rack
WHAT'S IN THE BOX
Complete eBike
Keys
3 Amp fast charger
Quickstart Guide
Front, rear, and wheel reflectors
Lithium-Ion battery
Bell
Owner’s Manual
Assembly tools (pedal wrench, multi-tool)
Shipping weight: 73 lbs
COVID-19 has created specific challenges in the bicycle industry, especially around the availability of the components required to manufacture ebikes. As a result, we reserve the right to make substitutions of equivalent components of equal or better value to ensure we can consistently deliver our ebikes in a timely fashion. Thanks for understanding!
Third Party Accessory Compatibility
Thule Yepp Maxi Child Seat
With the optional Dengao Rear Rack installed, the Thule Yepp Maxi Child Seat will fit but requires the Thule Yepp Maxi EasyFit Adapter.
VIDEO REVIEWS OF THE CITY MODEL 1
HOW IT FITS
Collapsible content

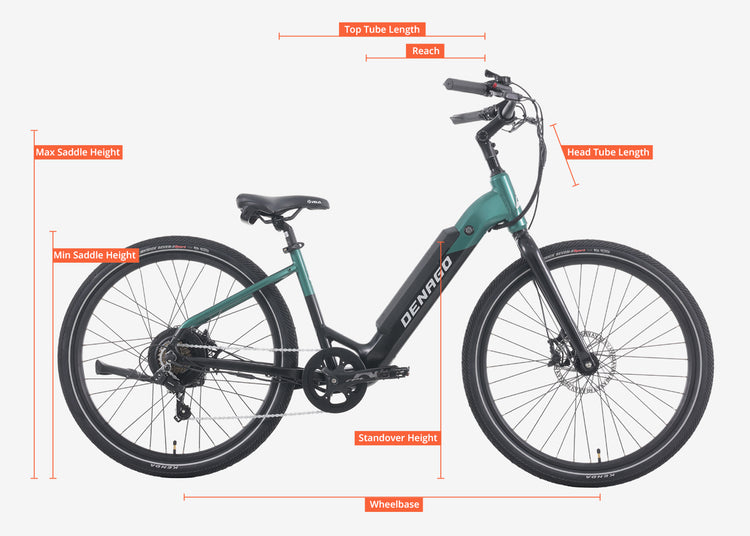

Full geometry chart and dimensions

Dimension | Size |
---|---|
Wheelbase: | 45.25" / 1149mm |
Head Tube Length: | 6.7" | 170mm |
Top Tube Length: | 25.4" / 647mm |
Standover height: | 21" / 533mm |
Maximum Saddle Height: | 36" / 914.4mm |
Minimum Saddle Height: |
30" / 762mm |
Our size and fit recommendations
Denago recommends:
One Size for riders 5'2" - 5'11
Taller riders can ride this model by using an optional extended length seatpost.
