eBike Features
Collapsible content
See Full eBike Specifications
Top Speed:
28 MPH on pedal assist, 20 MPH on throttle
Motor:
Shengyi rear hub motor, 48V, 500W, 50 Nm torque rating, IPX5 Water-Resistant rated
Throttle:
Thumb throttle, left side
Display:
Denago LCD with speed, motor power, trip distance, odometer, trip time, battery charge level, and walk mode functions, plus PIN lock security feature
Sensors:
Speed, Cadence
Battery:
48V, 13.6Ah, 652.8Wh, Fully-integrated style, LG cells, IPX6 Water-Resistant rated
Charger:
Multi-voltage 110-240V, 3A Fast Charger with USA plug
UL Certification (as of manufacture date October 1, 2023):
UL 2849 certified, with a UL 2271 certified battery
Safety Data Sheets (SDS):
For 24/7 Chemical Emergency Response and SDS Information, call 1 (800) 255-392
Download:
Denago eBike safety data sheets (PDF)
Watch: Ebike Escape's review of the Commute 1
Component Highlights
Collapsible content
See Full Component Specifications
FRAME AND FORK
Frame and fork:
6061-T6 Aluminum Alloy, Step-thru style
Kickstand:
included
DRIVETRAIN
Pedals:
Platform, aluminum alloy, 9/16” with reflectors
Crankset:
Aluminum alloy, 170mm, 42 tooth chainring, built-in cover protects pant legs from the chain
Bottom Bracket:
Sealed, square taper, 138mm, English thread
Rear Derailleur:
Microshift, 8 speed
Cassette:
8 speed, 11-32 teeth
Shifter:
Microshift 8 speed, Rapidfire Plus
Chain:
KMC Z-Series, 8 speed, 3/32”
COCKPIT
Handlebar:
Zoom aluminum alloy, 31.8mm diameter, 660mm long
Grips:
Black rubber, lock-on style

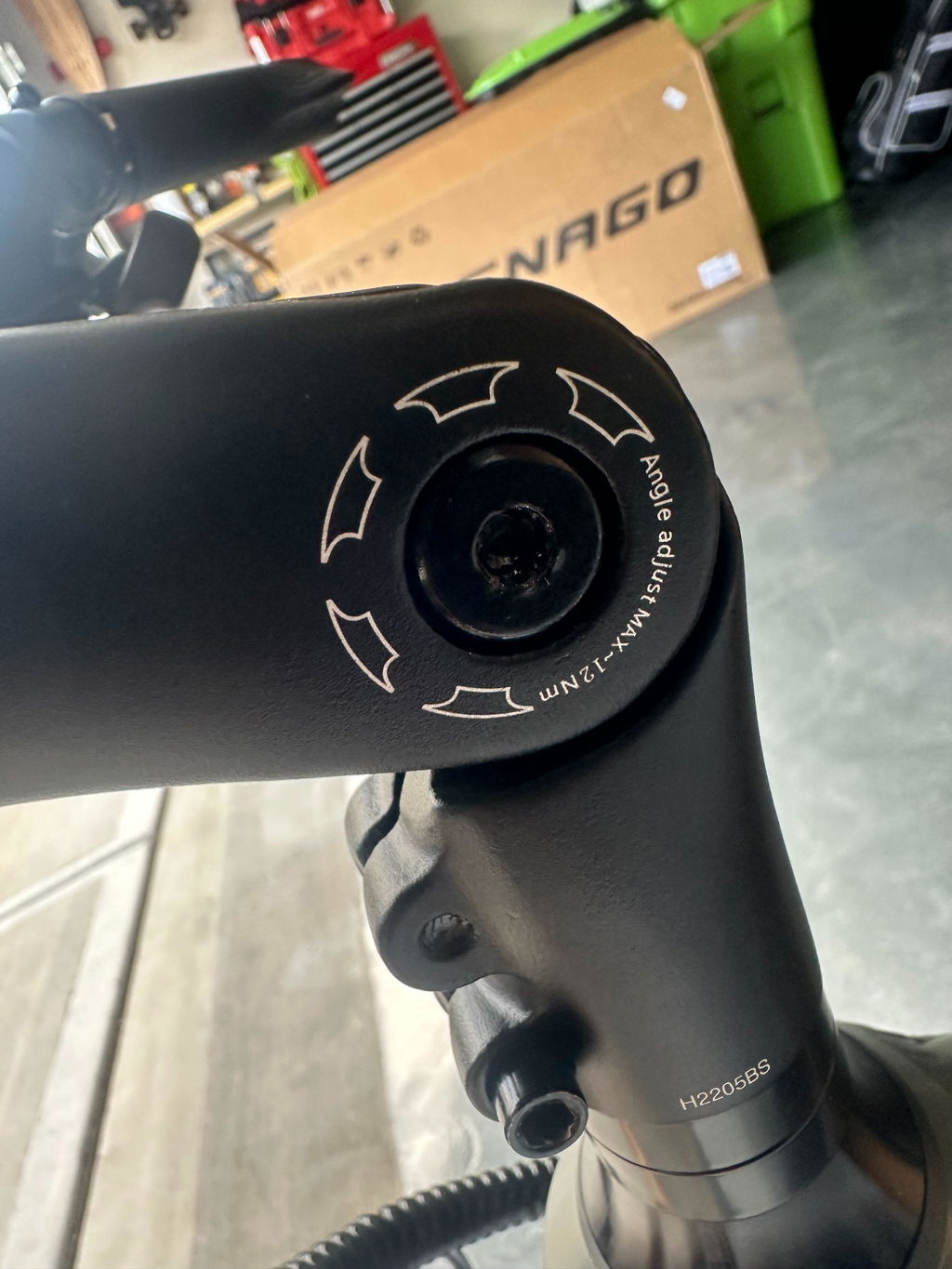

Stem:
Aluminum alloy w/adjustable angle, 31.8mm clamp, 1 ⅛” threadless
Saddle:
Comfort padded, black with white Denago logo
Headset:
1 ⅛”, sealed, threadless
Seatpost Clamp:
Zoom, quick release
Seatpost:
Zoom suspension, 30.4mm diameter, 350mm length
BRAKES
Levers:
Hydraulic disc with motor cut-off
Calipers:
Hydraulic disc with motor cut-off
Rotors:
180mm, 6 bolt type
WHEELS
Tires:
Denago P-1195, 27.5 x 2.6", eBike rated, puncture resistant, reflective sidewalls
Tubes:
Denago 27.5 x 2.6”, schrader valve
Rims:
Aluminum Alloy, 36 holes, 27.5”
Hubs:
Front - 6 bolt disc, nutted, 36 holes; Rear - 6 bolt disc, Shengyi DGW22, nutted, 36 holes
Spokes:
36 Black ED13 gauge spokes front, 36 12 gauge spokes rear
Nipples:
Brass
WEIGHT AND PAYLOAD
Complete eBike weight, with battery:
64 lbs
Maximum rider weight:
280 lbs
Maximum cargo capacity:
55 lbs on the included rear rack
WHAT'S IN THE BOX
Complete eBike
Lithium-Ion battery
Keys
3 Amp fast charger
Owner's Manual
Quickstart Guide
Assembly Tools (pedal wrench, multi-tool)
Front, rear, and wheel reflectors
Shipping weight: 73 lbs
COVID-19 has created specific challenges in the bicycle industry, especially around the availability of the components required to manufacture ebikes. As a result, we reserve the right to make substitutions of equivalent components of equal or better value to ensure we can consistently deliver our ebikes in a timely fashion. Thanks for understanding!
Third Party Accessory Compatibility
Thule Yepp Maxi Child Seat
With the installed Dengao Rear Rack, the Thule Yepp Maxi Child Seat will fit but requires the Thule Yepp Maxi EasyFit Adapter.
Electric Bike Report review of the Commute Model 1
Size and fit
Collapsible content
Full geometry chart and dimensions
Dimension | Size S/M | Size L/XL |
---|---|---|
Head Tube Angle: | 69° | 69° |
Seat Tube Angle: | 68.1° | 68.1° |
Top Tube Length: | 25.7" | 25.7" |
Wheelbase: | 45.2" | 45.7" |
Head Tube Length: | 6.7" | 8.7" |
Seat Tube Length: | 16" | 20" |
Standover height: | 21" | 21" |
Maximum Saddle Height: | 40" | 43" |
Minimum Saddle Height: | 35" | 38" |
Handlebar Height: | 41-43" | 41.5-43.5" |
Total length: | 72" | 72.5" |
Stack: | 26.2" | 26.9" |
Reach: | 15.1" | 15.3" |
Our size and fit recommendations
Denago recommends:
Size S/M for riders 4'11" - 5'8"
Size L/XL for riders 5'8" - 6'5"
Electrified Reviews on the Commute Model 1
Assembly tools included
Shipping and delivery
-
Free standard shipping on all eBikes
All eBikes ship free from Denago.com.
-
Fast delivery
In-stock eBikes are delivered in just 1-5 business days, depending on your state.
-
Need it today?
Check partner bike shops near you who sell assembled, ready to ride Denago eBikes. Find a dealer near you.
Documents for the Denago Commute Model 1 Step-thru eBike
DOWNLOADS
Owner's Manual, Quick Start Guide, Display Instructions, Geometry Chart
Please visit the Denago downloads page for PDF documents.
