500 W
motor
60 Miles
range
Front
Suspension
LG 48V 14Ah
battery
264 LBS
PAYLOAD CAPACITY
28 MPH
Top Speed
300+ Bike Shops
eBike service & test rides
Safety Certified
In accordance with UL2849 and UL2271
Denago Commute 1 High Step eBike
Bicycling.com's "Best New Commuter eBike".
The Denago Commute Model 1 is an eBike that can replace your car in urban environments. Commute to work or school at up to 28 MPH on this Class III eBike. Features suspension fork and seatpost, integrated headlight, fenders, rear rack, and a sleek hidden battery. Traditional double-diamond frame design.
Commute Model 1 was named "best new commuter eBike" by the editors of Bicycling.com and appears on their list of "18 best electric bikes you can buy right now."
TIME
REMAINING
Size
Compatible Accessories:
2 Year Warranty
Free Shipping
15-Day Returns
Geometry
Frame Size | S/M | L/XL |
Height | 4'11" - 5'8" | 5'8" - 6'5" |
Wheelbase | 45.4"/1154mm | 45.4"/1154mm |
Top Tube Length | - | - |
Head Tube Length | 6.7"/170mm | 8.7"/222mm |
Seat Tube Length | 15.7"/400mm | 20.1"/510mm |
Standover Height | 26.3"/669mm | 26.3"/669mm |
Reach | 5.9"/150mm | 7.5"/190mm |
Technical Specifications
Frame Size | S/M | L/XL |
Battery | LG 48V/14Ah | LG 48V/14Ah |
Charger | 54.6V/3A | 54.6V/3A |
Speed | 28 MPH on pedal assist, 20 MPH on throttle | 28 MPH on pedal assist, 20 MPH on throttle |
Range | 60 miles max range | 60 miles max range |
Motor | 500W rear hub motor 50 NM torque | 500W rear hub motor 50 NM torque |
Wheel Size | 27.5" x 2.6" | 27.5" x 2.6" |
Display | LCD display | LCD display |
Brakes | Hydraulic disc brakes front+rear | Hydraulic disc brakes front+rear |
Crank Set | 42T Aluminum cover | 42T Aluminum cover |
Derailleur | Shimano 8 speed | Shimano 8 speed |
Front Fork | Front suspension | Front suspension |
Throttle | Thumb throttle | Thumb throttle |
Handlebar | Adjustable handlebar | Adjustable handlebar |
Kickstand | included | included |
Rims | 27.5”, Al-alloy | 27.5”, Al-alloy |
Saddle | CL-7038 | CL-7038 |
Sensor | Speed | Speed |
Head Tube Angle | 69° | 69° |
Seat Tube Angle | 68.1° | 68.1° |
Rear Chainstay Length | 19.3”/490mm | 19.3”/490mm |
Front Wheel Center | 26.4”/670mm | 26.4”/670mm |
Stack Height | 26.7”/678mm | 28.2”/716mm |
Fork Length | 19.9”/505mm | 19.7”/500mm |
Fork Offset | 1.8”/46mm | 1.8”/46mm |
Fork rake | 1.4”/35mm | 1.4”/35mm |
Stem length | 3.5”/90mm | 3.5”/90mm |
Crank Length | 6.7”/170mm | 6.7”/170mm |
Grips | 5.4”/137mm | 5.4”/137mm |
Seatpost | 30.4*350L | 30.4*350L |
Shift Lever | 1x8 | 1x8 |
Seat Clamp | φ35mm | φ35mm |
Ebike Class | 3 | 3 |
500 W
motor
60 Miles
range
Front
Suspension
LG 48V 14Ah
battery
264 LBS
PAYLOAD CAPACITY
28 MPH
Top Speed
300+ Bike Shops
eBike service & test rides
Safety Certified
In accordance with UL2849 and UL2271
Third Party Reviews
Throttle Only |
Pedal-Assist |
|||||
1PAS | 2PAS | 3PAS | 4PAS | 5PAS | ||
Range : |
28Miles |
60Miles |
50Miles |
42Miles |
34Miles |
30Miles |
Range : |
|||
Throttle |
28Miles |
||
Pedal |
60Miles |
1PAS | |
50Miles |
2PAS | ||
42Miles |
3PAS | ||
34Miles |
4PAS | ||
30Miles |
5PAS |
Discover Design Advantages
An e-bike that conquers all terrain and is never field controlled. Come and feel its charm.
Integrated headlight
UL 2849 & UL 2271 Certified
An urban eBike that can replace your car
''Best new commuter eBike''
Throttle Safely
2.6'' wide, eBike-rated tires
Powerful hydraulic disc brakes

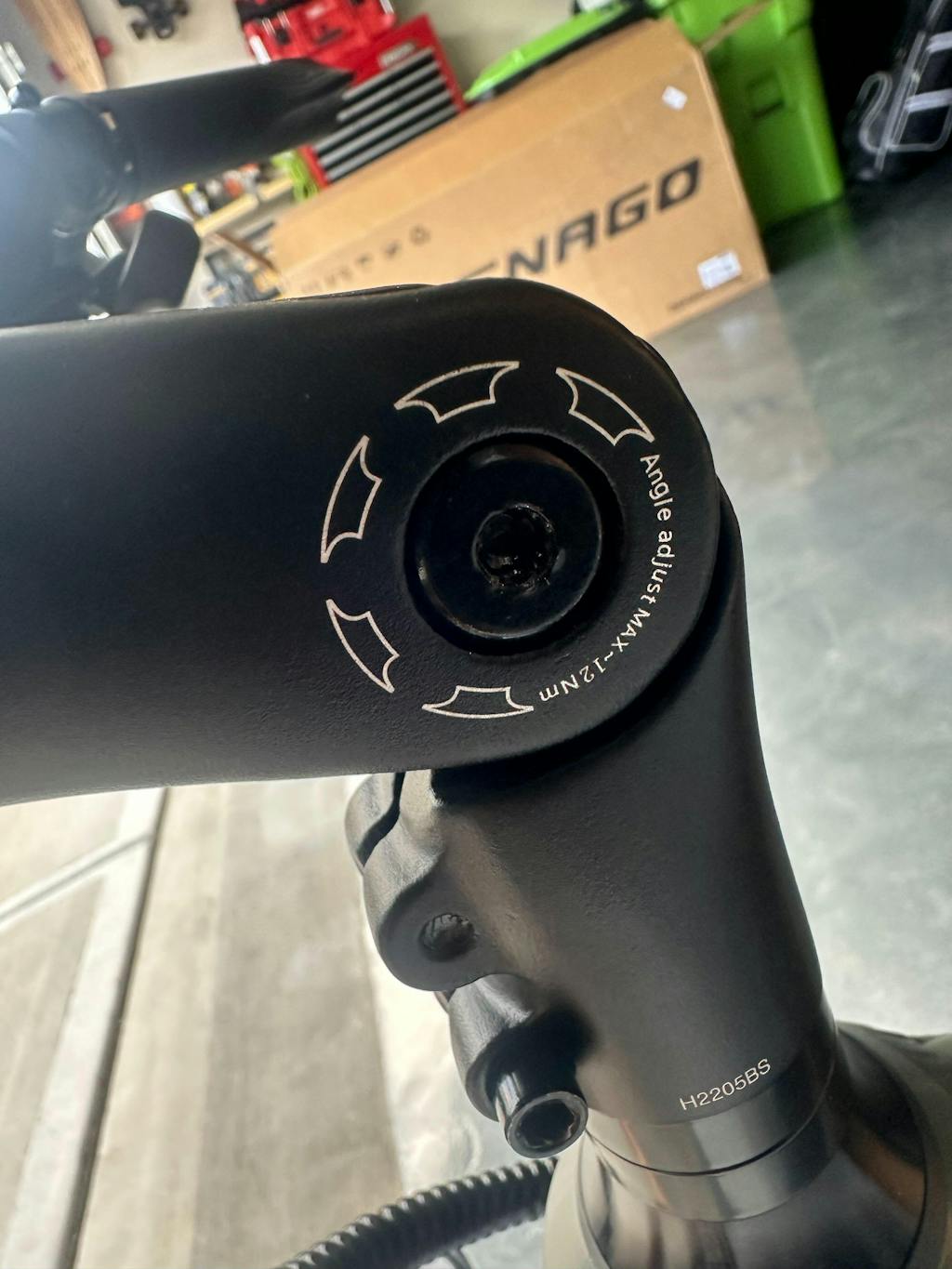

Adjustable stem
Suspension seat post
Kickstand
How it fits
Graciela is 6'1" tall
Shown riding Commute Model 1 High Step Size L/XL
Crystal is 5'4" tall
Shown riding Commute Model 1 High Step Size S/M
Lisa is 6'4" tall
Shown riding Commute Model 1 High Step Size L/XL
Geometry
Dimension
Size S/M
Size L/XL
Wheelbase
45.4"/1154mm
45.4"/1154mm
Top Tube Length
-
-
Seat Tube Length
15.7"/400mm
20.1"/510mm
Head Tube Length
6.7"/170mm
8.7"/222mm
Standover Height
26.3"/669mm
21"26.3"/669mm
