750 W
motor
60 Miles
range
Integrated Lights
TURN SIGNALS
LG 48V 14Ah
battery
264 LBS
PAYLOAD CAPACITY
20 MPH
Top Speed
300+ Bike Shops
eBike service & test rides
Safety Certified
In accordance with UL 2271

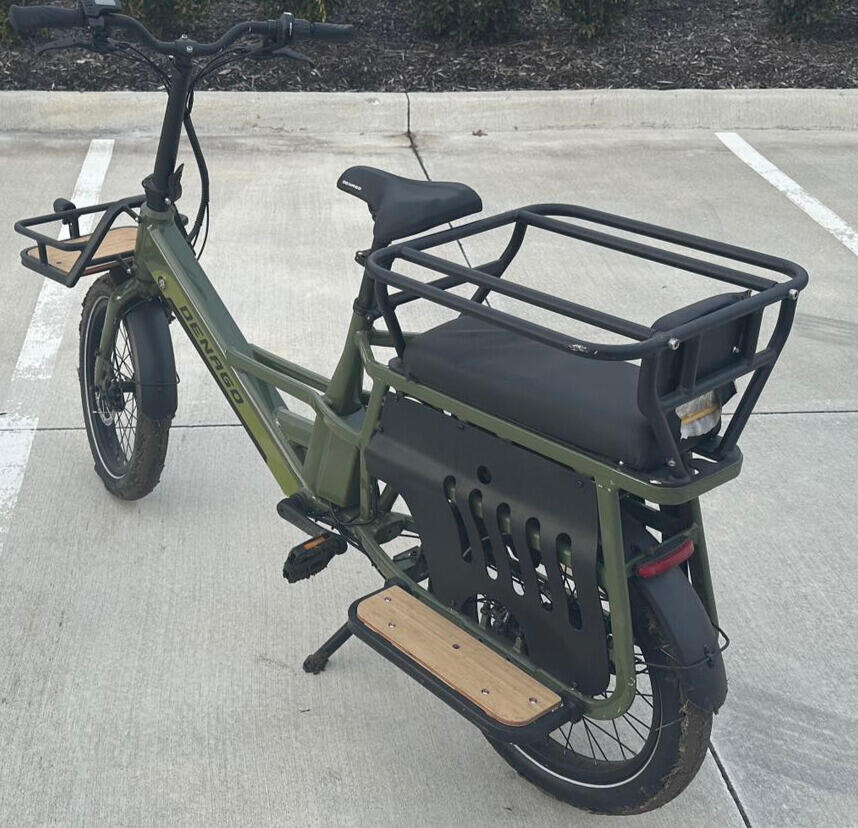

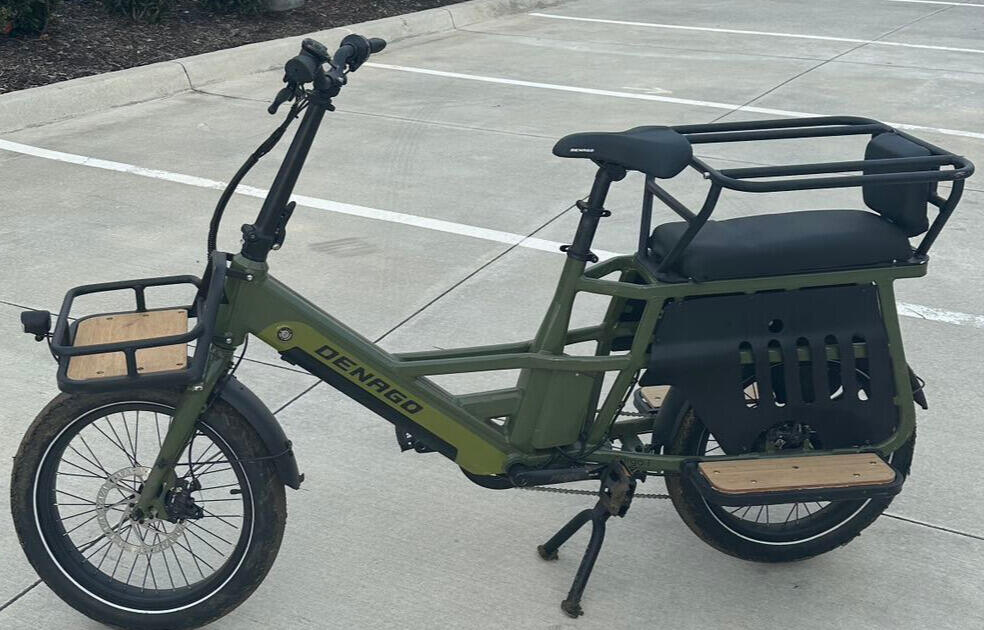

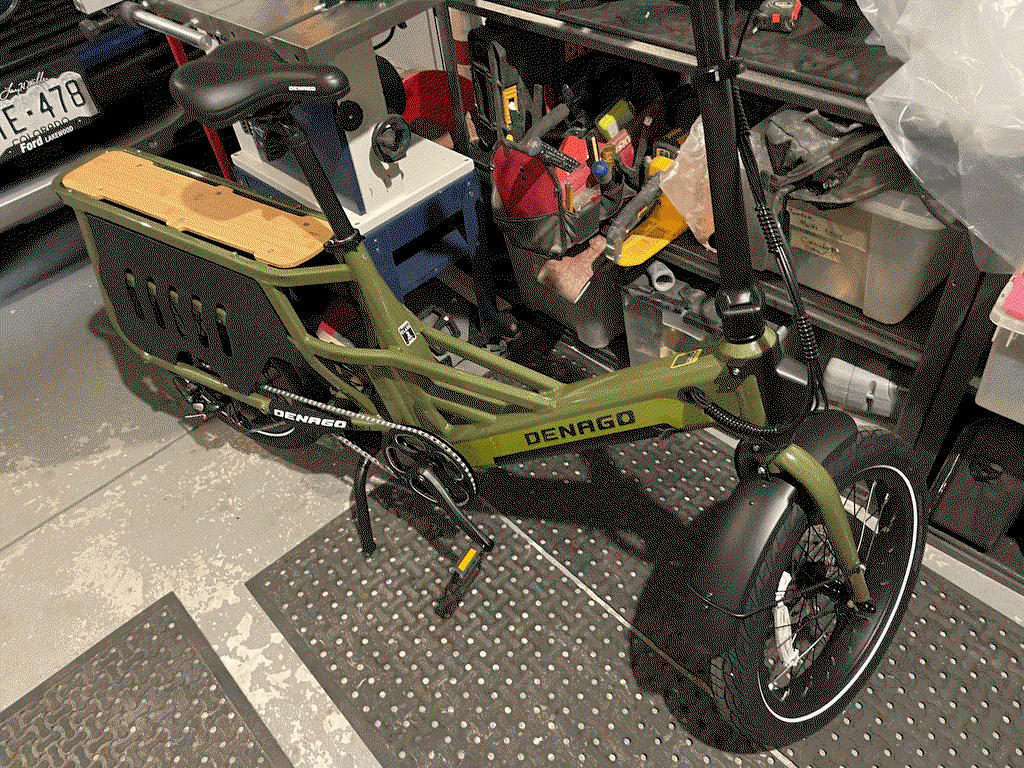

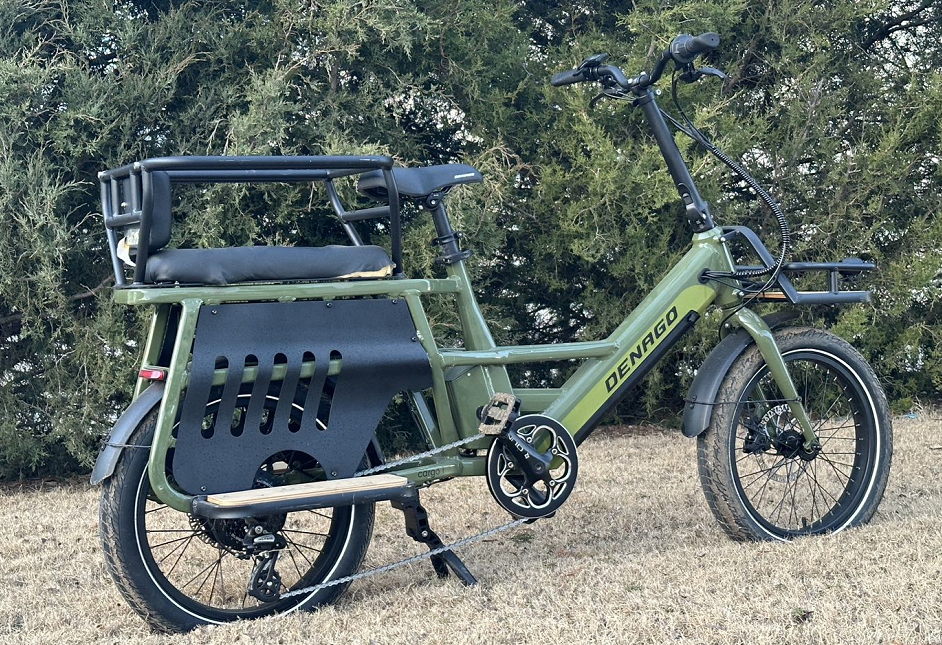

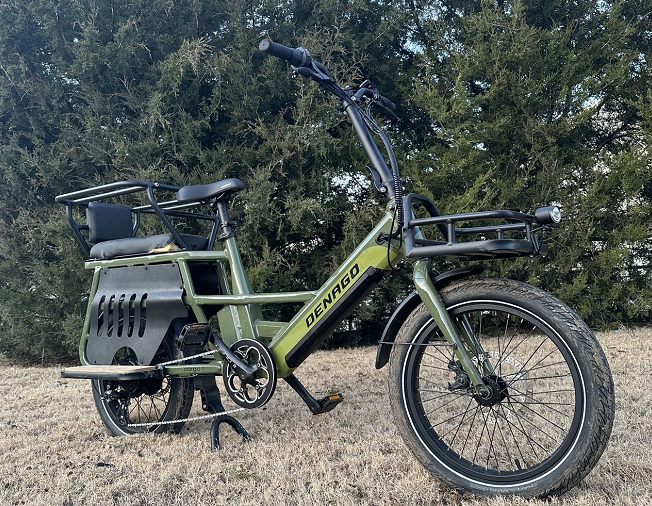

Denago Compact Cargo 1 eBike
Dual Battery Cargo Utility eBike with Torque Sensor.
Our Compact Cargo 1 eBike hauls people, gear, or groceries to your home or office; tools and materials to your job site, and much more. Optional accessories, like our Kid Halo, allow you to carry a passenger and bring the family along.
Unlike a full-length "long tail" cargo bike, the Compact Cargo 1 is easy to handle, turn, and park, thanks to a shorter wheelbase for more agile handling - yet it still has a massive payload and capacity to haul it all.
TIME
REMAINING
Size
Compatible Accessories:
2 Year Warranty
Free Shipping
15-Day Returns
Geometry
Frame Size | One Size |
Height | 5'0''-6'5'' |
Wheelbase | 47"/1196mm |
Top Tube Length(effective) | 79.3''/2015mm |
Head Tube Length | 6.5"/165mm |
Standover Height | N/A |
Handlebar Height | 42.7" /1085mm |
Min Saddle Height | 33" /845mm |
Max Saddle Height | 39.3"/1000mm |
Technical Specifications
Battery | 672Wh lithium-ion battery |
Charger | Multi-voltage 110-240V, 3A Fast Charger with USA plug |
Speed | 20 MPH on pedal assist, 20 MPH on throttle (Class II eBike) |
Motor | 750 Watt Rear Hub Motor |
Tires | Chaoyang Beetle 20x3", anti-puncture, safety reflective stripe, eBike-rated |
Display | Denago digital LCD with speed, trip distance, odometer, trip time, battery charge level, and walk mode functions; plus integrated front and rear light controls. |
Chain | KMC Z7RB, 3/32” |
Crank Set | Prowheel aluminum alloy, 170mm, 48 tooth chainring, with chainguard |
Derailleur | Shimano Acera RD-M310, 7 speed |
Front Fork | Rigid |
Frame | 6061-T6 Aluminum Alloy, Step-thru style |
Throttle | Thumb throttle, left side |
Handlebar | Zoom, aluminum alloy, 25.4mm diameter, 50mm rise, 620mm wide |
Kickstand | included, heavy-duty dual-sided type |
Rims | Aluminum Alloy, 36 holes, 20" |
Saddle | Cionlli comfort w/Denago logo, memory foam |
Sensor | Torque Sensor |
Spokes |
Front - 36 black 13 gauge spokes Rear - 36 black 12 gauge spokes |
750 W
motor
60 Miles
range
Integrated Lights
TURN SIGNALS
LG 48V 14Ah
battery
264 LBS
PAYLOAD CAPACITY
20 MPH
Top Speed
300+ Bike Shops
eBike service & test rides
Safety Certified
In accordance with UL 2271
Throttle Only |
Pedal-Assist |
|||||
1PAS | 2PAS | 3PAS | 4PAS | 5PAS | ||
Range : |
33Miles |
60Miles |
54Miles |
48Miles |
41Miles |
36Miles |
Range : |
|||
Throttle |
33Miles |
||
Pedal |
60Miles |
1PAS | |
54Miles |
2PAS | ||
48Miles |
3PAS | ||
41Miles |
4PAS | ||
36Miles |
5PAS |
Discover Design Advantages
Seamless Loading, Stable Riding, Limitless Possibilities.
Integrated Safety Lights
Tailored Fit
LG 48V 14Ah Battery
Fit It All
Hydraulic Disc Brakes
20 x 3'' Cargo Rated Fat Tires
80 Nm Mid-drive Motor
Torque Sensor
Digital LCD Display
Fenders & Rear Rack w/ Side Skirts
Dual Leg Kickstand
How it fits
Geometry
Dimension
Size
Wheelbase
47"/1196mm
Top Tube Length (effective )
79.3''/2015mm
Handlebar Height
42.7" /1085mm
Head Tube Length
6.5"/165mm
Standover Height
N/A
Min Saddle Height
33" /845mm
Max Saddle Height
39.3"/1000mm
