eBike Features
Collapsible content
See Full eBike Specifications
Top Speed:
28 MPH on pedal assist, 20 MPH on throttle (Class III eBike)
Motor:
Shengyi rear hub, 48V, 500W, IPX5 Water-Resistant rated
Battery:
Lithium-ion, 48V, 13.6A (652.8Wh) built with LG 18650 cells, IPX6 Water-Resistant rated
Sensors:
Cadence, Speed

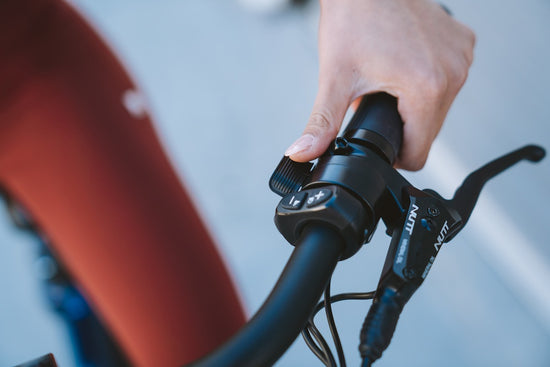

Throttle:
Thumb throttle, left side
Display:
Denago high-resolution LCD with speed, pedal assist level, trip distance, odometer, trip time, battery charge level, and walk mode functions.
Charger:
Multi-voltage 110-240V, 3A Fast Charger with USA plug
UL Certification (as of manufacture date October 1, 2023):
UL 2849 certified, with a UL 2271 certified battery
Safety Data Sheets (SDS):
Denago safety data sheets are available upon request via email.
COMPONENT HIGHLIGHTS
Collapsible content
See Full Component Specifications
FRAME AND FORK
Frame:
6061-T6 Aluminum Alloy, Top tube style
Fork:
Rigid, suspension-corrected length
Kickstand:
included
DRIVETRAIN
Pedals:
Platform, aluminum alloy, 9/16” with reflectors
Crankset:
Aluminum alloy, 170mm, 42 tooth chainring
Bottom Bracket:
Sealed, square taper, English thread
Rear Derailleur:
Microshift M26, 8 speed
Cassette:
8 speed, 11-32 teeth
Shifter:
Microshift 8 speed
Chain:
KMC Z-Series, 3/32”
COCKPIT
Handlebar:
Zoom aluminum alloy, 31.8mm diameter, 660mm long
Handlebar Bell:
included
Grips:
Black rubber, lock-on style
Stem:
Zoom aluminum alloy, 31.8mm clamp, 1 ⅛” threadless, adjustable angle
Headset:
1 ⅛”, sealed, threadless
Saddle:
Comfort with lift handle
Seatpost:
Zoom aluminum alloy, 30.4mm diameter, 300mm length
Seatpost Clamp:
Zoom, quick release
BRAKES
Levers:
Hydraulic disc brake with motor cut-off
Calipers:
Hydraulic disc brake
Rotors:
180mm, 6 bolt type
WHEELS
Tires:
27.5" x 2.6", puncture protection with safety reflective stripe
Tubes:
27.5" x 2.6", schrader valve
Rims:
Aluminum Alloy, 36 holes, 27.5"
Hubs:
Front - nutted, 36 holes, disc brake
Rear - Shengyi, nutted 36 holes, disc brake
Spokes:
Front - 36, 13 gauge spokes
Rear - 36, 13 gauge spokes
Nipples:
Brass
WEIGHT AND PAYLOAD
Complete eBike with battery:
58 lbs
Maximum rider weight:
300 lbs
Maximum cargo capacity:
55 lbs on the optional seatstay-mounted rear rack
WHAT'S IN THE BOX
Complete eBike
Keys
Lithium-Ion battery
3 Amp fast charger
Quickstart guide
Wheel reflectors
Assembly Tools (pedal wrench, multi-tool)
COVID-19 has created specific challenges in the bicycle industry, especially around the availability of the components required to manufacture eBikes. As a result, we reserve the right to make substitutions of equivalent components of equal or better value to ensure we can consistently deliver our eBikes in a timely fashion. Thanks for understanding!
Upgrades from City Model 1
- Fully-integrated vs. semi-integrated battery
- 8 speed drivetrain vs. 7 speed drivetrain
- Suspension-corrected fork
- Wider (2.6") tires vs. 2.3" tires
Third Party Accessory Compatibility
Thule Yepp Maxi Child Seat
With the optional Dengao Rear Rack installed, the Thule Yepp Maxi Child Seat will fit but requires the Thule Yepp Maxi EasyFit Adapter.
Watch: City 2 video review by Electrified Reviews
Size and fit
WATCH: EBIKE ESCAPE REVIEW OF THE CITY 2
Collapsible content
Full geometry chart and dimensions
Dimension | Size S/M | Size L/XL |
---|---|---|
Wheelbase: | 45.2" | 45.7" |
Reach: | 15.1" | 15.3" |
Top Tube Length: | 25.7" | 25.7" |
Head Tube Length: | 6.7" | 8.7" |
Standover height: | 21" | 21" |
Maximum Saddle Height: | 40" | 43" |
Minimum Saddle Height: | 35" | 38" |
Our size and fit recommendations
Denago recommends:
Size S/M for riders 5'0" - 5'9"
Size L/XL for riders 5'9" - 6'4"
Assembly tools included
Shipping and delivery
-
Free standard shipping on all eBikes
All eBikes ship free from Denago.com.
-
Fast delivery
In-stock eBikes are delivered in just 1-5 business days, depending on your state.
-
Need it today?
Check partner bike shops near you who sell assembled, ready to ride Denago eBikes.
Documents for the Denago Fat Tire Step-thru eBike
DOWNLOADS
Owner's Manual, Quick Start Guide, Display Instructions, Geometry Chart
Please visit the Denago downloads page for PDF documents.
